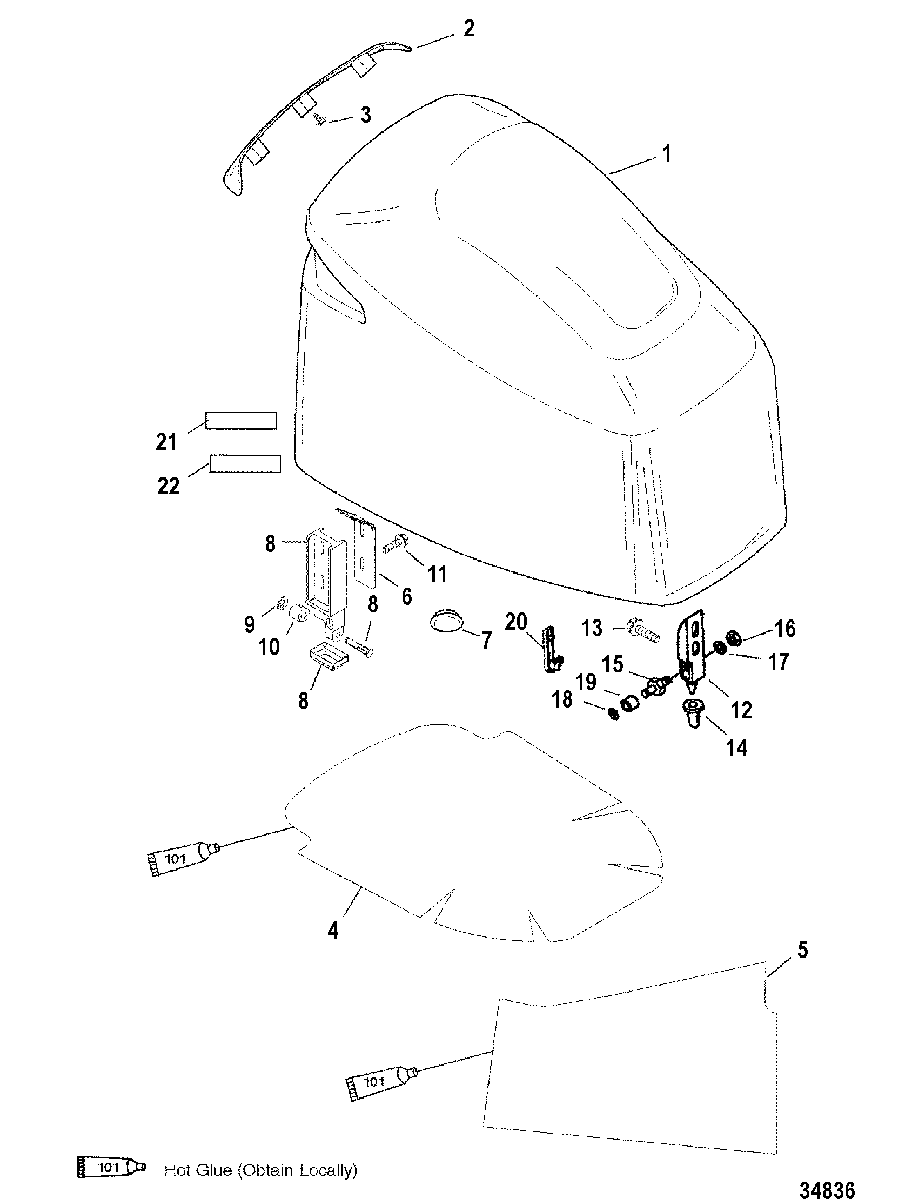

Top Cowl для Mercury - 200 (DFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    112-850299T1 TOP COWL ASSEMBLY, Black
    TOP COWL ASSEMBLY, Black
  • 1
    112-850299T2 TOP COWL ASSEMBLY, Silver
    TOP COWL ASSEMBLY, Silver
  • 2
    850300F1 CAP
    CAP
  • 3
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 4
    854371A1 SOUND BLANKET, Top
    SOUND BLANKET, Top
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Side
    NOT SOLD SEPARATE, Sound Blanket-Side
  • 6
    855890 WEDGE
    WEDGE
  • 7
    19-823865 CAP PLUG
    CAP PLUG
  • 8
    850682A06 HOOK ASSEMBLY, Rear Latch
    HOOK ASSEMBLY, Rear Latch
  • 9
    53-8237951 RING, Retaining
    RING, Retaining
  • 10
    815263 ROLLER
    ROLLER
  • 11
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 12
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 13
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    815477 BUMPER, Latch
    BUMPER, Latch
  • 15
    8155381 PIN, Roll
    PIN, Roll
  • 16
    11-401366 NUT, (M6)
    NUT, (M6)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    53-8237951 RING, Retaining
    RING, Retaining
  • 19
    815263 ROLLER
    ROLLER
  • 20
    826639T COVER
    COVER
  • 21
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • 22
    NSS NOT SOLD SEPARATE, Decal-Break-In
    NOT SOLD SEPARATE, Decal-Break-In
