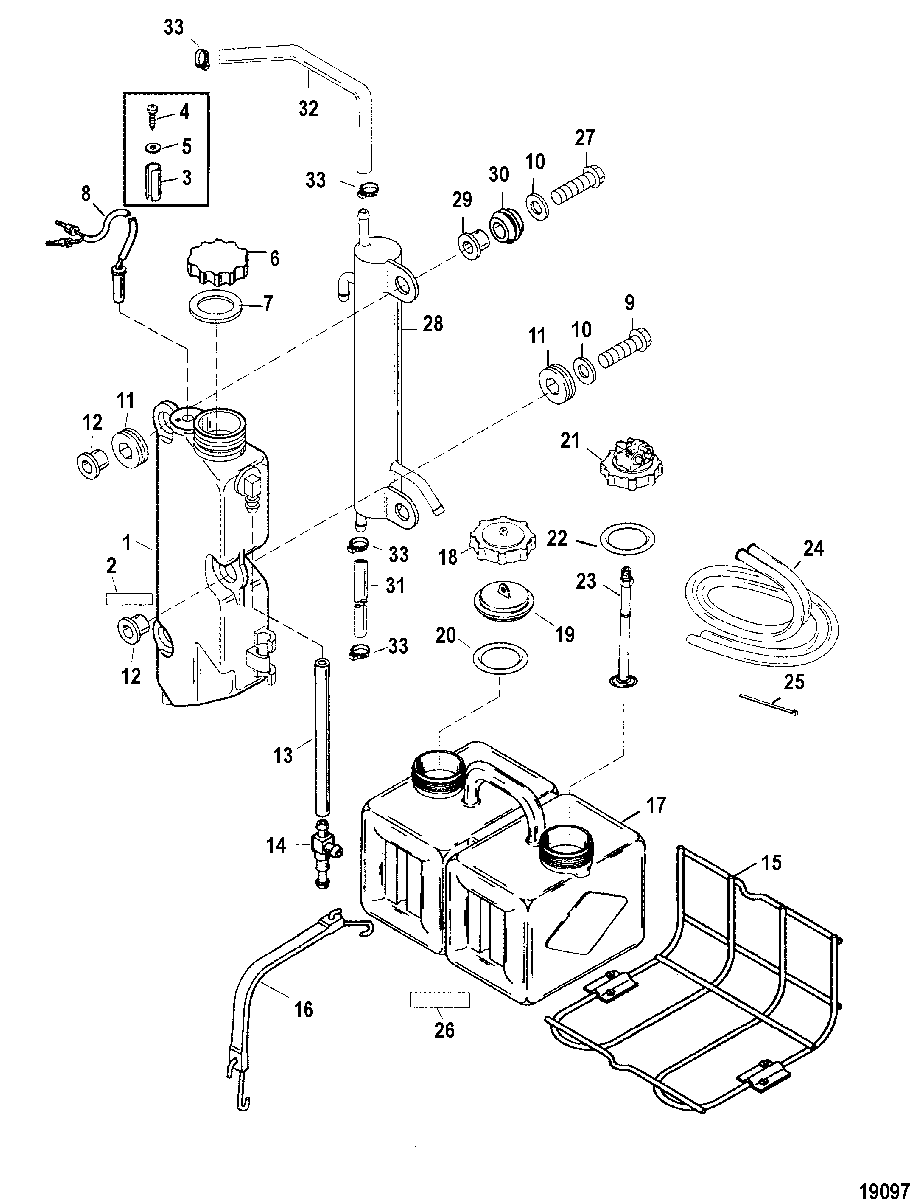

Oil Injection Components для Mercury - 200 (DFI) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    1270-830889A1 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 2
    NSS NOT SOLD SEPARATE, Decal-Reservoir
    NOT SOLD SEPARATE, Decal-Reservoir
  • 3
    23-8260841 SPACER
    SPACER
  • 4
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 5
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 6
    36-814449A3 CAP ASSEMBLY
    CAP ASSEMBLY
  • 7
    27-42999T GASKET
    GASKET
  • 8
    87-12886A7 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 9
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    12-49436 WASHER
    WASHER
  • 11
    25-855362001 GROMMET
    GROMMET
  • 12
    23-855364 BUSHING
    BUSHING
  • 13
    32-8M0108355 HOSE, (57.00 Inches Bulk) (8 IN.)
    HOSE, (57.00 Inches Bulk) (8 IN.)
  • 14
    22-424254 FITTING
    FITTING
  • 15
    12335A1 BRACKET KIT
    BRACKET KIT
  • 16
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 17
    1257-87421 TANK
    TANK
  • 18
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 19
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 20
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 21
    816190A4 HOUSING ASSEMBLY, Adapter
    HOUSING ASSEMBLY, Adapter
  • 22
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 23
    32-99802 TUBE
    TUBE
  • 24
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 26
    NSS NOT SOLD SEPARATE, Decal-Caution Remote Tank
    NOT SOLD SEPARATE, Decal-Caution Remote Tank
  • 27
    10-81893445 SCREW (M8 X 45)
    SCREW (M8 X 45)
  • 28
    855841T2 COOLER, Fuel
    COOLER, Fuel
  • 29
    23-8502341 BUSHING
    BUSHING
  • 30
    25-833155 GROMMET
    GROMMET
  • 31
    32-85466755 HOSE (25 IN.)
    HOSE (25 IN.)
  • 32
    32-856819 HOSE
    SN# 0G911719 & Below
    HOSE
    SN# 0G911719 & Below
  • 33
    54-856880 CLAMP, Hose (15.3)
    SN# 0G911719 & Below
    CLAMP, Hose (15.3)
    SN# 0G911719 & Below
