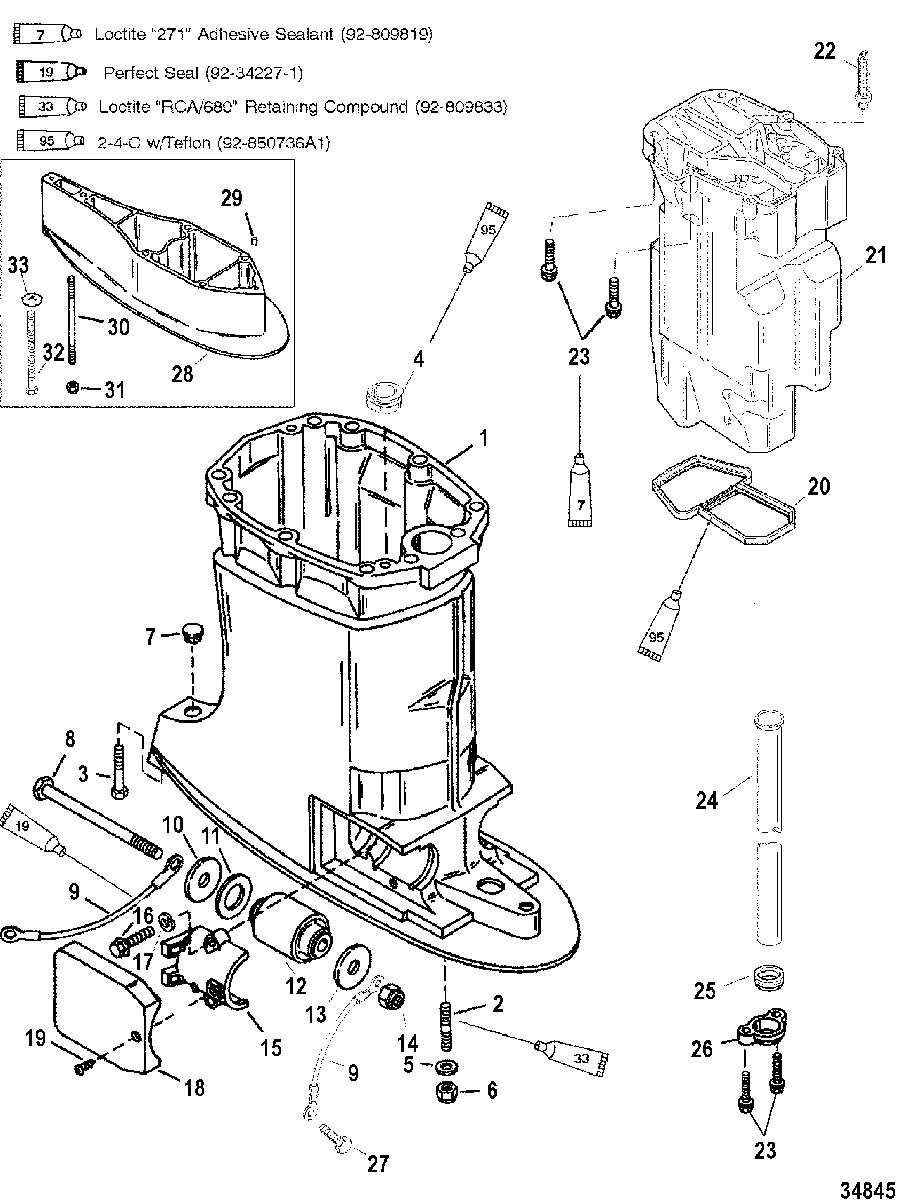

Driveshaft Housing and Exhaust Tube для Mercury - 200 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(LONG)HOUSING ASSEMBLY, Driveshaft
(LONG) -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X-LONG)HOUSING ASSEMBLY, Driveshaft
(X-LONG) -
216-8M0070951 STUD, (M12 x 52)
LONG/X-LONGSTUD, (M12 x 52)
LONG/X-LONG -
310-82130130 SCREW, (M10 x 30)
LONG/X-LONGSCREW, (M10 x 30)
LONG/X-LONG -
310-857136 SCREW, (M12 x 35)
LONG/X-LONGSCREW, (M12 x 35)
LONG/X-LONG -
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW, (M14 x 178)SCREW, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, BlackCOVER, Black
-
1910-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
208329321 SEALSEAL
-
21833116A4 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
22NSS NOT SOLD SEPARATE, StrainerNOT SOLD SEPARATE, Strainer
-
2310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2432-8M0042785 TUBE, Water
LONGTUBE, Water
LONG -
2432-8M0042786 TUBE, Water
X-LONGTUBE, Water
X-LONG -
2432-8M0042787 TUBE, Water
XX-LONGTUBE, Water
XX-LONG -
25832940001 SEALSEAL
-
268329391 CLAMPCLAMP
-
2710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
288M0105088 SPACER
XX-LONGSPACER
XX-LONG -
2917-43044 PIN, Dowel - Without Hole (.375 x .625)
XX-LONGPIN, Dowel - Without Hole (.375 x .625)
XX-LONG -
3016-8M0008047 STUD, (M12 x 179)
XX-LONGSTUD, (M12 x 179)
XX-LONG -
3016-824118 STUD
(M10 X 1.5 X 173) XX-LONGSTUD
(M10 X 1.5 X 173) XX-LONG -
3111-400636 NUT (M10 X 1.5)
(USE W/M10 X 1.5 X 173 STUD XX-LONGNUT (M10 X 1.5)
(USE W/M10 X 1.5 X 173 STUD XX-LONG -
3210-857137 SCREW, (M12 x 160)
XX-LONGSCREW, (M12 x 160)
XX-LONG -
3312-856982 WASHER, (.500 x .810 x .090) Stainless Steel
XX-LONGWASHER, (.500 x .810 x .090) Stainless Steel
XX-LONG
