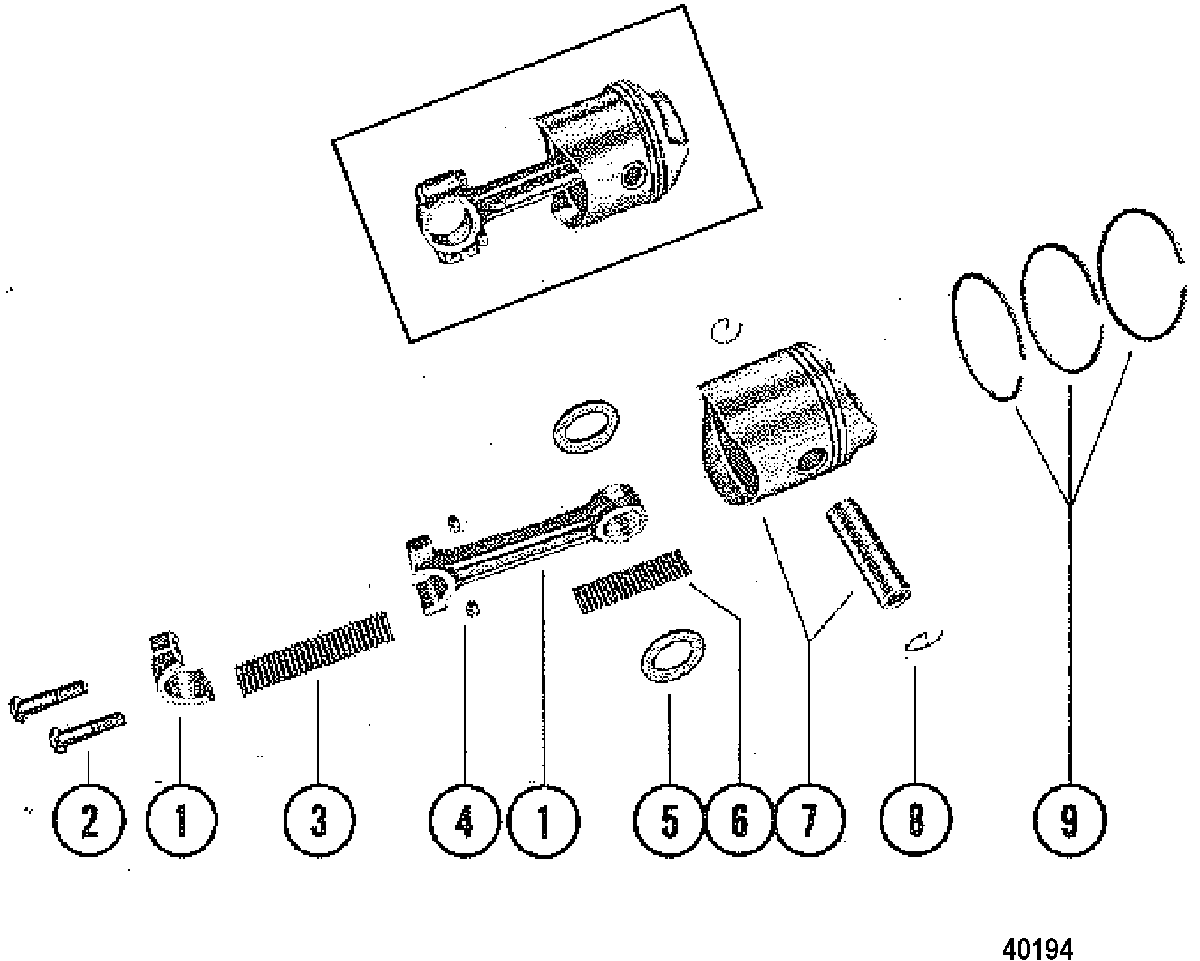

PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 200, 20 4709593 & Up

  • №
    Артикул
    Название
  • 1
    632-7621A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-45379 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 3
    29-20046T BEARING, Needle, CRANKPIN
    BEARING, Needle, CRANKPIN
  • 4
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 5
    12-47275 WASHER, NEEDLE BEARING RETAINING
    WASHER, NEEDLE BEARING RETAINING
  • 6
    29-20063 BEARING, Needle, PISTON PIN
    BEARING, Needle, PISTON PIN
  • 7
    780-9229A7 PISTON ASSEMBLY
    STANDARD
    PISTON ASSEMBLY
    STANDARD
  • 7
    780-9229A10 PISTON ASSEMBLY
    (.015 OVERSIZE)
    PISTON ASSEMBLY
    (.015 OVERSIZE)
  • 8
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 9
    39-27841A12 RING SET, Piston - Standard
    RING SET, Piston - Standard
  • 9
    39-28616A12 RING SET, Piston
    (.015 OVERSIZE)
    RING SET, Piston
    (.015 OVERSIZE)
