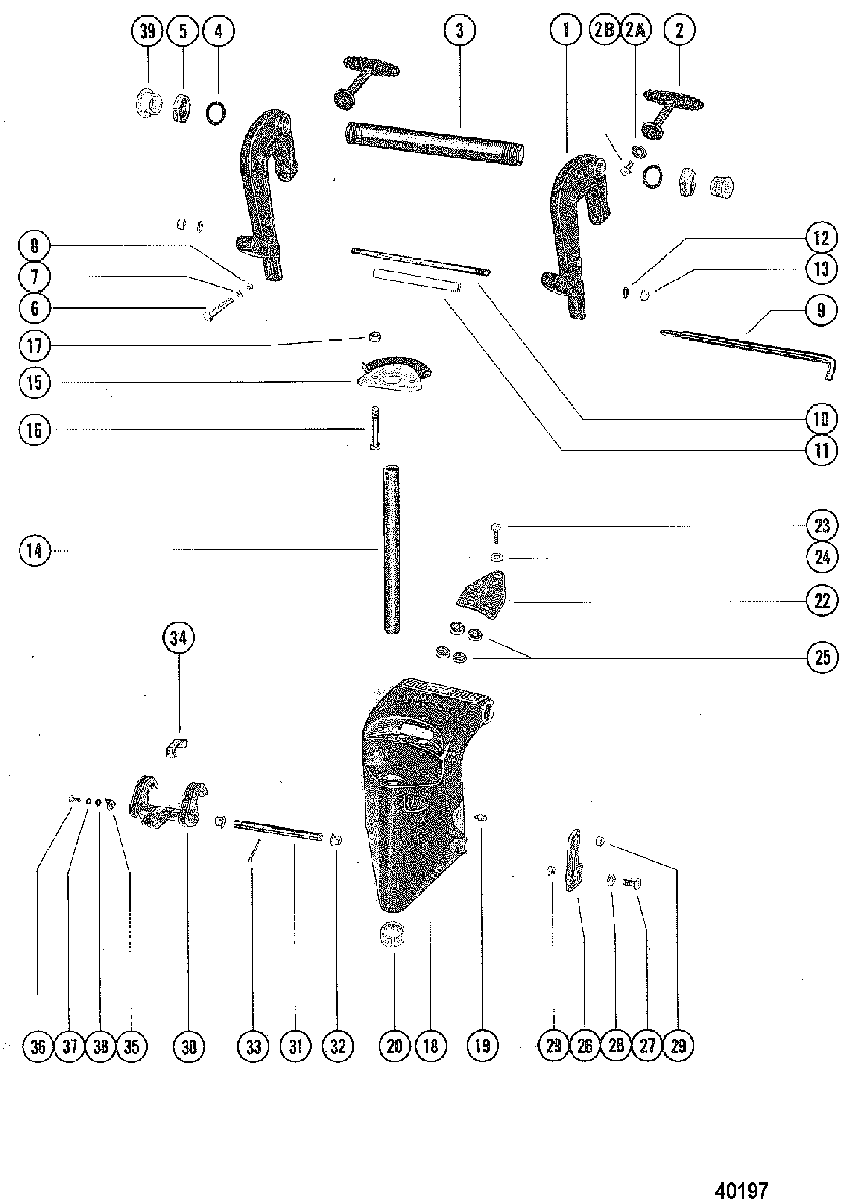

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 200, 20 4709593 & Up

  • №
    Артикул
    Название
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    WASHER ATTACHER WITH A RETAINING RING
    CLAMP BRACKET ASSEMBLY
    WASHER ATTACHER WITH A RETAINING RING
  • 2
    10-77190A3 THUMB SCREW ASSEMBLY
    WASHER ATTACHER WITH A RETAINING RING
    THUMB SCREW ASSEMBLY
    WASHER ATTACHER WITH A RETAINING RING
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A SCREW
    CLAMP BRACKET ASSEMBLY
    WASHER ATTACHED WITH A SCREW
  • 2
    10-77190A3 THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
    THUMB SCREW ASSEMBLY
    WASHER ATTACHED WITH A SCREW
  • 2A
    12-818884 WASHER
    WASHER ATTACHED WITH A SCREW
    WASHER
    WASHER ATTACHED WITH A SCREW
  • 2B
    10-768042 SCREW
    WASHER ATTACHED WITH A SCREW
    SCREW
    WASHER ATTACHED WITH A SCREW
  • 3
    74249 TILT TUBE, CLAMP BRACKET
    TILT TUBE, CLAMP BRACKET
  • 4
    12-71421 WASHER, Nylon, CLAMP BRACKET TILT TUBE
    WASHER, Nylon, CLAMP BRACKET TILT TUBE
  • 5
    11-858869 NUT, (.875-14), TILT TUBE FASTENING
    NUT, (.875-14), TILT TUBE FASTENING
  • 6
    10-67979 BOLT, CLAMP BRACKET TO TRANSOM(2 3/4")
    BOLT, CLAMP BRACKET TO TRANSOM(2 3/4")
  • 7
    12-67981 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 8
    11-82670910 NUT, (.312-18), CLAMP BRACKET SCREW
    NUT, (.312-18), CLAMP BRACKET SCREW
  • 9
    17-56373A2 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 10
    16-59620 STUD, CLAMP BRACKET (8")
    STUD, CLAMP BRACKET (8")
  • 11
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 12
    13-26993 LOCKWASHER, (.312), CLAMP BRACKET STUD
    LOCKWASHER, (.312), CLAMP BRACKET STUD
  • 13
    11-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
    NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
  • 14
    66557 SWIVEL PIN
    SWIVEL PIN
  • 15
    33423 DISC, Co-Pilot
    DISC, Co-Pilot
  • 16
    10-26132 SCREW (2 1/2")
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    SCREW (2 1/2")
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 16
    10-35385 SCREW, (.312-18 x 1-3/4)
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    SCREW, (.312-18 x 1-3/4)
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 17
    11-29250 NUT, (5/16-24)
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    NUT, (5/16-24)
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 18
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
    SWIVEL BRACKET ASSEMBLY
    SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below
  • 18
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
    SWIVEL BRACKET ASSEMBLY
    SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up
  • 19
    22-74036 FITTING, Grease
    FITTING, Grease
  • 20
    23-64651 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 22
    73014A1 PLATE ASSEMBLY, CO-PILOT
    PLATE ASSEMBLY, CO-PILOT
  • 23
    10-78841 SCREW, (.312-24 x 1.500)
    SCREW, (.312-24 x 1.500)
  • 24
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 25
    20203 DISC
    DISC
  • 26
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
  • 27
    10-41433 SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    SCREW, RETAINING - LEVER TO SWIVEL BRACKET
  • 28
    13-31030 WAVE WASHER
    WAVE WASHER
  • 29
    11-36069 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 30
    61012 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 31
    26092 ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 32
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 33
    18-45882 COTTER PIN, REVERSE LOCK LEVER ROD
    COTTER PIN, REVERSE LOCK LEVER ROD
  • 34
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
  • 35
    70241 STOP, REVERSE LOCK
    STOP, REVERSE LOCK
  • 36
    10-71056 SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
    SCREW, (.250-28 x .560), REVERSE STOP TO SWIVEL BRACKET
  • 37
    13-26992 LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
    LOCKWASHER, (.250) Stainless Steel, REVERSE STOP SCREW
  • 38
    12-71055 WASHER, REVERSE STOP SCREW
    WASHER, REVERSE STOP SCREW
  • 39
    19-39333 PLUG, TILT TUBE
    PLUG, TILT TUBE
