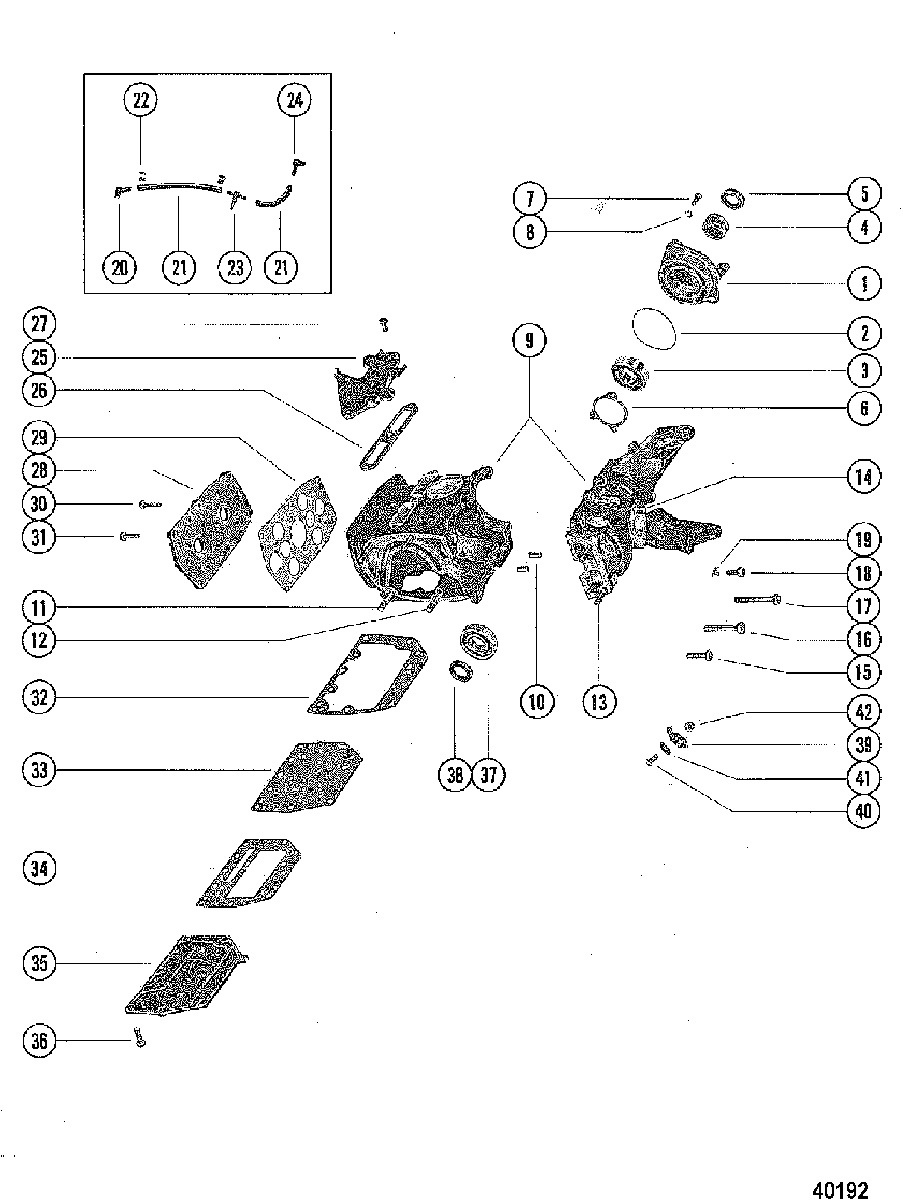

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200, 20 4709593 & Up

  • №
    Артикул
    Название
  • 1
    1163-6437A1 CRANKCASE TOP ASSEMBLY
    CRANKCASE TOP ASSEMBLY
  • 2
    20071 O-RING, CRANKCASE TOP
    O-RING, CRANKCASE TOP
  • 3
    30-63326T BEARING, BALL - CRANKCASE TOP (UPPER)
    BEARING, BALL - CRANKCASE TOP (UPPER)
  • 4
    31-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)
    BEARING, ROLLER - CRANKCASE TOP (UPPER)
  • 5
    26-66300 SEAL, Oil, CRANKCASE TOP (UPPER)
    SEAL, Oil, CRANKCASE TOP (UPPER)
  • 6
    15-56191A1 SHIM
    SHIM
  • 7
    10-86750 SCREW, CRANKCASE TOP TO CYLINDR BLOCK (5/8")
    SCREW, CRANKCASE TOP TO CYLINDR BLOCK (5/8")
  • 8
    14-75670 TAB WASHER, CRANKCSAE TOP SCREW
    TAB WASHER, CRANKCSAE TOP SCREW
  • 9
    848-6430A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 10
    17-23784 PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
  • 11
    16-72743 STUD (2 1/8")
    STUD (2 1/8")
  • 12
    16-8M0034434 STUD, (.312-18/.312-24 x 1.750)
    STUD, (.312-18/.312-24 x 1.750)
  • 13
    16-8M0034434 STUD, (.312-18/.312-24 x 1.750)
    STUD, (.312-18/.312-24 x 1.750)
  • 14
    16-8M0034422 STUD, (.312-18/.324-24 x 1.090)
    STUD, (.312-18/.324-24 x 1.090)
  • 15
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 16
    10-35385 SCREW, (.312-18 x 1-3/4)
    SCREW, (.312-18 x 1-3/4)
  • 17
    10-67450 SCREW, (.312-18 x 2.250)
    SCREW, (.312-18 x 2.250)
  • 18
    10-98260 SCREW, (.375-16 x .62), Use where Applicable
    SCREW, (.375-16 x .62), Use where Applicable
  • 19
    14-20091 TAB WASHER, Use where Applicable
    TAB WASHER, Use where Applicable
  • 20
    21-42863 FITTING, BLEED DRAIN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    FITTING, BLEED DRAIN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 21
    32-9938779 HOSE, BLEED DRAIN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    HOSE, BLEED DRAIN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 22
    54-56223 CLAMP, BLEED HOSE ATTACHING
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CLAMP, BLEED HOSE ATTACHING
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 23
    22-78917 TEE, INJECTION
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    TEE, INJECTION
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 24
    22-78915 ELBOW, BLEED DRIAN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    ELBOW, BLEED DRIAN
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 25
    76347 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 26
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 27
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 27
    10-24646 SCREW (5/8 Inch)
    SCREW (5/8 Inch)
  • 28
    1022-3567 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 29
    27-78410 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 30
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 31
    10-76630 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 32
    27-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 33
    39308 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 34
    27-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
  • 35
    88797 COVER, EXHAUST MANIFOLD
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    COVER, EXHAUST MANIFOLD
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • 35
    88797 COVER, EXHAUST MANIFOLD
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    COVER, EXHAUST MANIFOLD
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
  • 36
    10-28782 SCREW, (.312-18 x .880) Stainless Steel
    SCREW, (.312-18 x .880) Stainless Steel
  • 37
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 38
    26-66302 SEAL, Oil, CRANKCASE (LOWER)
    SEAL, Oil, CRANKCASE (LOWER)
  • 39
    76255 INDICATOR, TIMING
    Electric
    INDICATOR, TIMING
    Electric
  • 40
    10-20784 SCREW, INDICATOR TO CRANKCASE
    Electric
    SCREW, INDICATOR TO CRANKCASE
    Electric
  • 41
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, INDICATOR SCREW
    Electric
    WASHER, (.281 x .500 x .060) Stainless Steel, INDICATOR SCREW
    Electric
  • 42
    11-35888 NUT, (.250-28) Stainless Steel, INDICATOR SCREW
    Electric
    NUT, (.250-28) Stainless Steel, INDICATOR SCREW
    Electric
  • -
    75392A77 POWERHEAD ASSEMBLY
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
    POWERHEAD ASSEMBLY
    SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below
  • -
    75392A80 POWERHEAD ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
    POWERHEAD ASSEMBLY
    SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up
