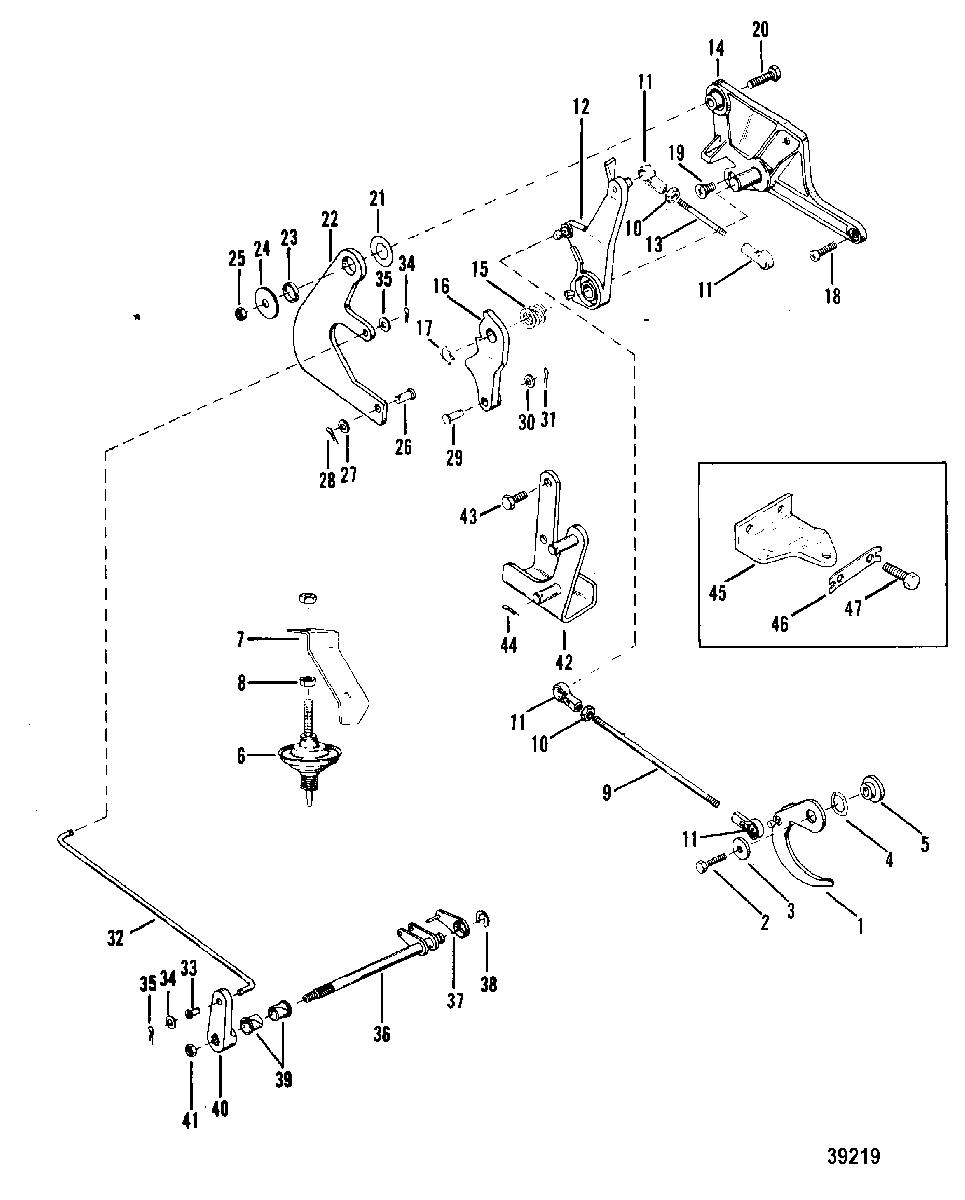

THROTTLE AND SHIFT LINKAGE(ELECTRIC) для Mercury - 18 7173723 THRU 7207857

‹-+›
  • №
    Артикул
    Название
  • 1
    87997A1 CAM, Throttle
    (USE WITH BC2B CARBURETOR)
    CAM, Throttle
    (USE WITH BC2B CARBURETOR)
  • 1
    96096 CAM, Throttle
    (USE WITH BC2D CARBURETOR)
    CAM, Throttle
    (USE WITH BC2D CARBURETOR)
  • 2
    10-400035 SCREW, (M5 x 16), THROTTLE CAM TO CRANKCASE
    SCREW, (M5 x 16), THROTTLE CAM TO CRANKCASE
  • 3
    12-87791 WASHER, THROTTLE CAM SCREW
    WASHER, THROTTLE CAM SCREW
  • 4
    13-69150 WAVE WASHER, THROTTLE CAM SCREW
    WAVE WASHER, THROTTLE CAM SCREW
  • 5
    17764A2 BUSHING, THROTTLE CAM SCREW
    BUSHING, THROTTLE CAM SCREW
  • 6
    92425 DASHPOT
    DASHPOT
  • 7
    93001 BRACKET, DASHPOT
    BRACKET, DASHPOT
  • 8
    11-22053 NUT, (.312-24), DASHPOT TERMINAL
    NUT, (.312-24), DASHPOT TERMINAL
  • 9
    98463A2 ROD ASSEMBLY, Throttle
    ROD ASSEMBLY, Throttle
  • 10
    11-68219 NUT, (#10-32) Stainless Steel, LOCK-THROTTLE ROD
    NUT, (#10-32) Stainless Steel, LOCK-THROTTLE ROD
  • 11
    8M0084742 SOCKET, THROTTLE ROD
    SOCKET, THROTTLE ROD
  • 12
    92730 LEVER, CONTROL
    LEVER, CONTROL
  • 13
    817429 TIMING ROD
    TIMING ROD
  • 14
    44299 PLATFOM, CONTROL
    PLATFOM, CONTROL
  • 15
    24-89540 SPRING, SPARK ADVANCE
    SPRING, SPARK ADVANCE
  • 16
    95034 LEVER, ACTUATING
    LEVER, ACTUATING
  • 17
    53-46250 RING, Retaining
    ACTUATING AND CONTROL LEVER
    RING, Retaining
    ACTUATING AND CONTROL LEVER
  • 18
    10-40019108 SCREW, (M5 x 20), CONTROL PLATFORM
    SCREW, (M5 x 20), CONTROL PLATFORM
  • 19
    10-40037126 SCREW, CONTROL PLATFORM (13MM)
    SCREW, CONTROL PLATFORM (13MM)
  • 20
    10-40007128 SCREW, (M6 x 20), SHIFT LEVER TO PLATFORM
    SCREW, (M6 x 20), SHIFT LEVER TO PLATFORM
  • 21
    12-95093 WASHER, SHIFT LEVER TO PLATFORM
    WASHER, SHIFT LEVER TO PLATFORM
  • 22
    95035 LEVER, SHIFT
    LEVER, SHIFT
  • 23
    23-95091 SLEEVE, SHIFT LEVER TO PLATFORM
    SLEEVE, SHIFT LEVER TO PLATFORM
  • 24
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER SCREW
    WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER SCREW
  • 25
    11-401386 NUT, (M6), SHIFT LEVER SCREW
    NUT, (M6), SHIFT LEVER SCREW
  • 26
    17-95029 PIN, SHIFT LEVER
    PIN, SHIFT LEVER
  • 27
    12-71055 WASHER, SHIFT LEVER PIN
    WASHER, SHIFT LEVER PIN
  • 28
    18-210711 COTTER PIN, SHIFT LEVER PIN
    COTTER PIN, SHIFT LEVER PIN
  • 29
    17-95784 PIN, ACTUATING LEVER
    PIN, ACTUATING LEVER
  • 30
    12-71055 WASHER, ACTUATING LEVER PIN
    WASHER, ACTUATING LEVER PIN
  • 31
    18-210711 COTTER PIN, ACTUATING LEVER PIN
    COTTER PIN, ACTUATING LEVER PIN
  • 32
    95025 SHIFT LINK
    SHIFT LINK
  • 33
    23-96202 BUSHING, NYLON - SHIFT LINK
    BUSHING, NYLON - SHIFT LINK
  • 34
    12-89302 WASHER, (.203 x .406 x .040), SHIFT LINK
    WASHER, (.203 x .406 x .040), SHIFT LINK
  • 35
    18-210711 COTTER PIN, SHIFT LINK
    COTTER PIN, SHIFT LINK
  • 36
    95027A6 SHIFT SHAFT ASSEMBLY, HORIZONTAL
    SHIFT SHAFT ASSEMBLY, HORIZONTAL
  • 37
    95023 LEVER, SHIFT SHAFT
    LEVER, SHIFT SHAFT
  • 38
    53-95019 RING, Retaining, LEVER TO SHIFT SHAFT
    RING, Retaining, LEVER TO SHIFT SHAFT
  • 39
    23-60762 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 40
    17724A1 LEVER, SHIFT SHAFT
    LEVER, SHIFT SHAFT
  • 41
    11-401385 NUT, (M5), SHIFT SHAFT
    NUT, (M5), SHIFT SHAFT
  • 42
    95033 BRACKET, REMOTE CONTROL
    BRACKET, REMOTE CONTROL
  • 43
    10-4000327 SCREW, (M6 x 14), REMOTE CONTROL BRACKET
    SCREW, (M6 x 14), REMOTE CONTROL BRACKET
  • 44
    18-210711 COTTER PIN, REMOTE CONTROL CABLES
    COTTER PIN, REMOTE CONTROL CABLES
  • 45
    96186A2 BRACKET ASSEMBLY, ATTACHING
    BRACKET ASSEMBLY, ATTACHING
  • 46
    96201 STRAP, Key
    STRAP, Key
  • 47
    10-1993325 SCREW, (M10 x 25), BRACKET
    SCREW, (M10 x 25), BRACKET
