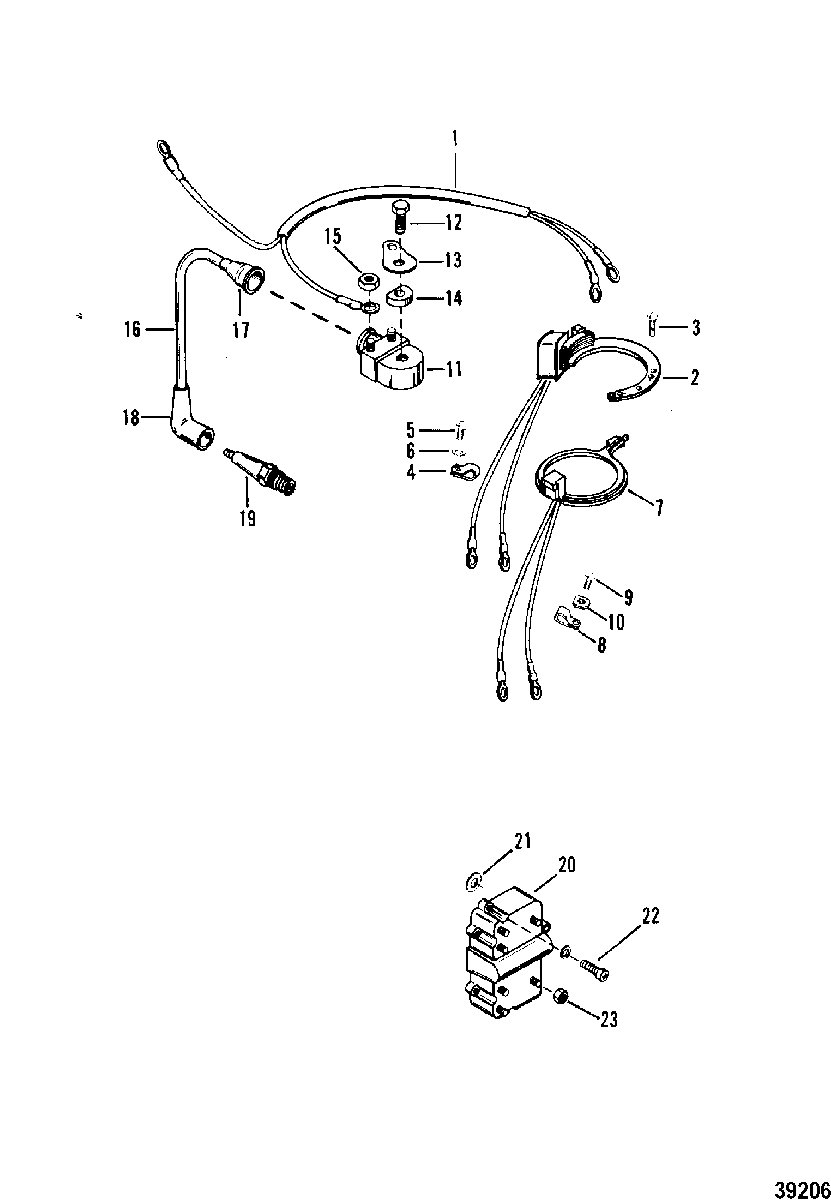

IGNITION COMPONENTS для Mercury - 18 7173723 THRU 7207857

  • №
    Артикул
    Название
  • 1
    84-88891A1 HARNESS ASSEMBLY, PRIMARY
    HARNESS ASSEMBLY, PRIMARY
  • 2
    86617A20 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 3
    10-4000120 SCREW, (M5 x 25), STATOR ATTACHING
    SCREW, (M5 x 25), STATOR ATTACHING
  • 3
    10-400015 SCREW, (M5 x 10), STATOR ATTACHING
    MANUAL
    SCREW, (M5 x 10), STATOR ATTACHING
    MANUAL
  • 4
    54-24836 CLIP, STATOR LEADS
    CLIP, STATOR LEADS
  • 5
    10-40019108 SCREW, (M5 x 20), CLIP TO SWITCH BOX
    SCREW, (M5 x 20), CLIP TO SWITCH BOX
  • 6
    12-89302 WASHER, CLIP SCREW
    WASHER, CLIP SCREW
  • 7
    98450A10 TRIGGER ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Up
    TRIGGER ASSEMBLY
    SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Up
  • 7
    98450A10 TRIGGER ASSEMBLY
    SN# USA-6055408/BEL-9340565/CAN-7186768 & Up
    TRIGGER ASSEMBLY
    SN# USA-6055408/BEL-9340565/CAN-7186768 & Up
  • 8
    54-24836 CLIP, TRIGGER LEADS
    CLIP, TRIGGER LEADS
  • 9
    10-77137 SCREW, (.190-16 x .620), CLIP TO CRANKCASE
    SCREW, (.190-16 x .620), CLIP TO CRANKCASE
  • 10
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 11
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 12
    10-4000189 SCREW, (M6 x 45), COIL TO CYLINDER BLOCK
    SCREW, (M6 x 45), COIL TO CYLINDER BLOCK
  • 13
    88173 TAB WASHER, COIL SCREW
    TAB WASHER, COIL SCREW
  • 14
    23-88171 BUSHING, COIL SCREW
    BUSHING, COIL SCREW
  • 15
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 16
    84-813715A1 WIRE ASSEMBLY, HIGH TENSION
    WIRE ASSEMBLY, HIGH TENSION
  • 17
    85-92308 BOOT, COIL
    BOOT, COIL
  • 18
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 19
    33-8M0114742 SPARK PLUG, CHAMPION #L-77J4
    SPARK PLUG, CHAMPION #L-77J4
  • 19
    33-896329828 SPARK PLUG, CHAMPION #QL-77J4
    CANADA AND BELGIUM
    SPARK PLUG, CHAMPION #QL-77J4
    CANADA AND BELGIUM
  • 20
    899883230 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 21
    13-69432 LOCKWASHER, External (#10), GROUND
    LOCKWASHER, External (#10), GROUND
  • 22
    10-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
    SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
  • 23
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALS
    NUT, (#10-32) Brass, SWITCH BOX TERMINALS
