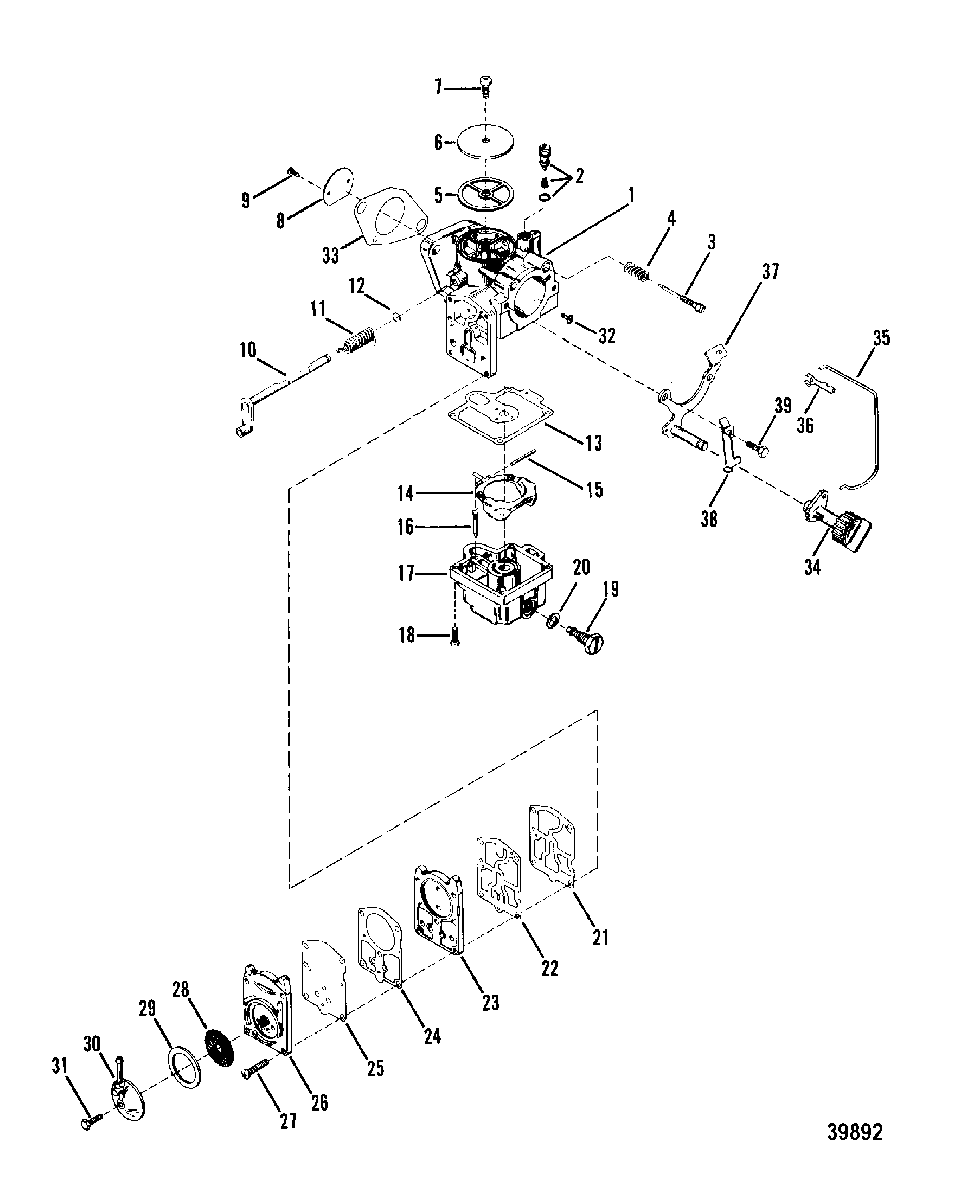

CARBURETOR ASSEMBLY для Mercury - 18 7173723 THRU 7207857

  • №
    Артикул
    Название
  • 1
    1390-8676A13 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    1399-8138 VALVE, Enrichment
    VALVE, Enrichment
  • 3
    1399-1713 SCREW, IDLE
    SCREW, IDLE
  • 4
    NSS NOT SOLD SEPARATE, Spring-idle screw
    NOT SOLD SEPARATE, Spring-idle screw
  • 5
    NSS NOT SOLD SEPARATE, Gasket, metering cover
    NOT SOLD SEPARATE, Gasket, metering cover
  • 6
    1399-8145 COVER, METERING
    COVER, METERING
  • 7
    1399-8146 SCREW, METERING COVER
    SCREW, METERING COVER
  • 8
    1399-8322 SHUTTER, Throttle
    SHUTTER, Throttle
  • 9
    NSS NOT SOLD SEPARATE, Screw, throttle shutter
    NOT SOLD SEPARATE, Screw, throttle shutter
  • 10
    1399-8321 SHAFT, Throttle
    SHAFT, Throttle
  • 11
    NSS NOT SOLD SEPARATE, Spring, return - throttle shaft
    NOT SOLD SEPARATE, Spring, return - throttle shaft
  • 12
    NSS NOT SOLD SEPARATE, E-Ring, throttle shaft
    NOT SOLD SEPARATE, E-Ring, throttle shaft
  • 13
    NSS NOT SOLD SEPARATE, Gasket, fuel bowl
    NOT SOLD SEPARATE, Gasket, fuel bowl
  • 14
    1390-8676A13 FLOAT
    FLOAT
  • 15
    NSS NOT SOLD SEPARATE, Float Pin
    NOT SOLD SEPARATE, Float Pin
  • 16
    1399-8143 NEEDLE AND SEAT, Inlet
    NEEDLE AND SEAT, Inlet
  • 17
    1399-8140 BOWL, Fuel
    BOWL, Fuel
  • 18
    1399-8141 SCREW, FUEL BOWL
    SCREW, FUEL BOWL
  • 19
    1399-8323 JET, Main (.052)
    JET, Main (.052)
  • 19
    1399-8325 JET, Main (.046)
    JET, Main (.046)
  • 19
    16608048 JET, Main (.048)
    JET, Main (.048)
  • 19
    16608050 JET, Main (.050)
    JET, Main (.050)
  • 20
    NSS NOT SOLD SEPARATE, Gasket, main jet
    NOT SOLD SEPARATE, Gasket, main jet
  • 21
    NSS NOT SOLD SEPARATE, Gasket, fuel pump diaphragm
    NOT SOLD SEPARATE, Gasket, fuel pump diaphragm
  • 22
    NSS NOT SOLD SEPARATE, Diaphragm, fuel pump
    NOT SOLD SEPARATE, Diaphragm, fuel pump
  • 23
    1399-8142 BODY, FUEL PUMP
    BODY, FUEL PUMP
  • 24
    NSS NOT SOLD SEPARATE, Gasket, fuel pump diaphragm
    NOT SOLD SEPARATE, Gasket, fuel pump diaphragm
  • 25
    NSS NOT SOLD SEPARATE, Diaphragm, fuel pump
    NOT SOLD SEPARATE, Diaphragm, fuel pump
  • 26
    1399-8147 BODY, STRAINER
    BODY, STRAINER
  • 27
    1399-8148 SCREW, STRAINER BODY
    SCREW, STRAINER BODY
  • 28
    1399-5758 SCREEN, STRAINER
    SCREEN, STRAINER
  • 29
    1399-5207 GASKET, STRAINER COVER
    GASKET, STRAINER COVER
  • 30
    99941 COVER, STRAINER
    COVER, STRAINER
  • 31
    1399-8150 SCREW, STRAINER COVER
    SCREW, STRAINER COVER
  • 32
    1395-7335 JET, (.098), BACK-DRAG
    USED WITH BC2B CARBURETOR
    JET, (.098), BACK-DRAG
    USED WITH BC2B CARBURETOR
  • 32
    1395-8423 JET, (.094), BACK-DRAG
    USED WITH BC2B CARBURETOR
    JET, (.094), BACK-DRAG
    USED WITH BC2B CARBURETOR
  • 32
    1399-6249 JET, Main (.096), BACK-DRAG
    USED WITH BC2B CARBURETOR
    JET, Main (.096), BACK-DRAG
    USED WITH BC2B CARBURETOR
  • 33
    27-88004 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 34
    98183A1 KNOB ASSEMBLY, Choke
    KNOB ASSEMBLY, Choke
  • 35
    89762 ROD, Choke
    ROD, Choke
  • 36
    54-89668 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 37
    89402A1 PLATE ASSEMBLY, CHOKE KNOB
    MANUAL
    PLATE ASSEMBLY, CHOKE KNOB
    MANUAL
  • 37
    94301A1 PLATE ASSEMBLY, CHOKE KNOB
    ELECTRIC
    PLATE ASSEMBLY, CHOKE KNOB
    ELECTRIC
  • 38
    92333 LINK, CHOKE DETENT
    LINK, CHOKE DETENT
  • 39
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • -
    1399-8153 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    1399-8154 GASKET KIT, Carburetor
    GASKET KIT, Carburetor
  • -
    27-85168A80 GASKET SET
    GASKET SET
