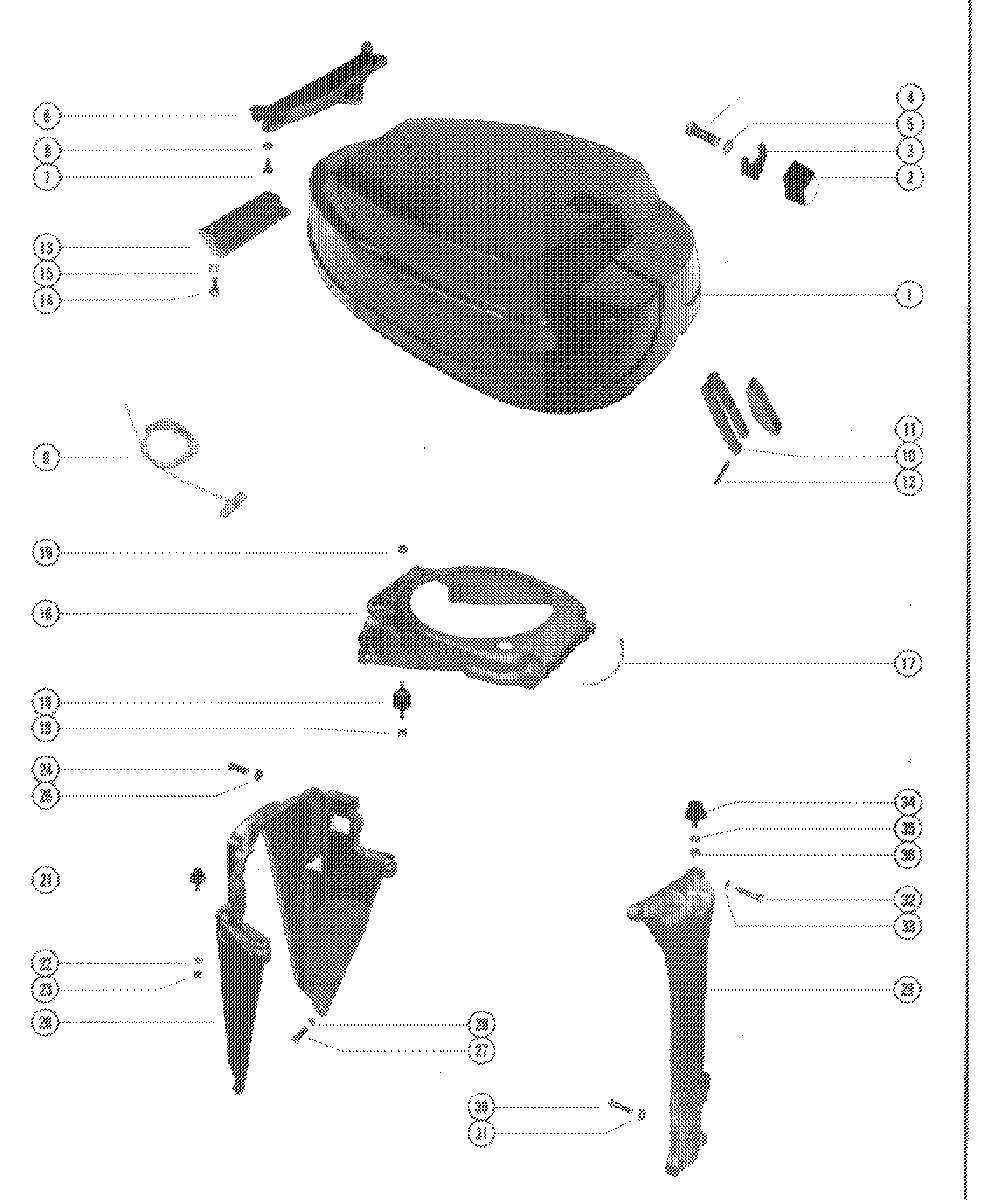

TOP COWL AND SUPPORT BRACKETS для Mercury - 1500XS 4868648 THRU 5327662

  • №
    Артикул
    Название
  • 1
    2114-7934T COWL, TOP (WITHOUT DECALS)
    COWL, TOP (WITHOUT DECALS)
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    RETAINER ASSEMBLY, TOP COWL
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    PAD, BUMPER - TOP COWL RETAINER
  • 4
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
  • 5
    13-39107 LOCKWASHER, RETAINER TO TOP COWL SCREW
    LOCKWASHER, RETAINER TO TOP COWL SCREW
  • 6
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 7
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 8
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 9
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
  • 10
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 11
    94918F1 LEVER, COWL LATCHHINGE
    LEVER, COWL LATCHHINGE
  • 12
    17-58998 PIN, ROLL - COWL LATCH LEVER TO HINGE
    PIN, ROLL - COWL LATCH LEVER TO HINGE
  • 13
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 14
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 15
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT - SERIAL GROUP #1
    FRAME ASSEMBLY, TOP COWL SUPPORT - SERIAL GROUP #1
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT - SERIAL GROUP #2
    FRAME ASSEMBLY, TOP COWL SUPPORT - SERIAL GROUP #2
  • 17
    37-73291 DECAL, TIMING (FLYWHEEL) - SERIAL GROUP #1
    DECAL, TIMING (FLYWHEEL) - SERIAL GROUP #1
  • 18
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 18
    46096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
    MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
  • 19
    11-35888 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 20
    86472 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 21
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 22
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 23
    11-29598 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 24
    10-37562 SCREW, REAR BRACKET TO FRAME (1")
    SCREW, REAR BRACKET TO FRAME (1")
  • 26
    13-26993 LOCKWASHER, REAR BRACKET SCREW
    LOCKWASHER, REAR BRACKET SCREW
  • 27
    10-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")
    SCREW, REAR BRACKET TO BOTTOM COWL (1")
  • 28
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 29
    42706A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    BRACKET ASSEMBLY, TOP COWL - FRONT
  • 30
    10-60411 SCREW, FRONT BRACKET TO BOTOM COWL (1 1/4")
    SCREW, FRONT BRACKET TO BOTOM COWL (1 1/4")
  • 31
    13-26992 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 32
    10-55511 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
    SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
  • 33
    13-26993 LOCKWASHER, FRON TSUPPORT BRACKET SCREW
    LOCKWASHER, FRON TSUPPORT BRACKET SCREW
  • 34
    37640 MOUNT, RUBBER FRONT SUPPORT BRACKET
    MOUNT, RUBBER FRONT SUPPORT BRACKET
  • 35
    13-26993 LOCKWASHER, RUBBER MOUNT TO FRON TSUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO FRON TSUPPORT BRACKET
  • 36
    11-28770 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
