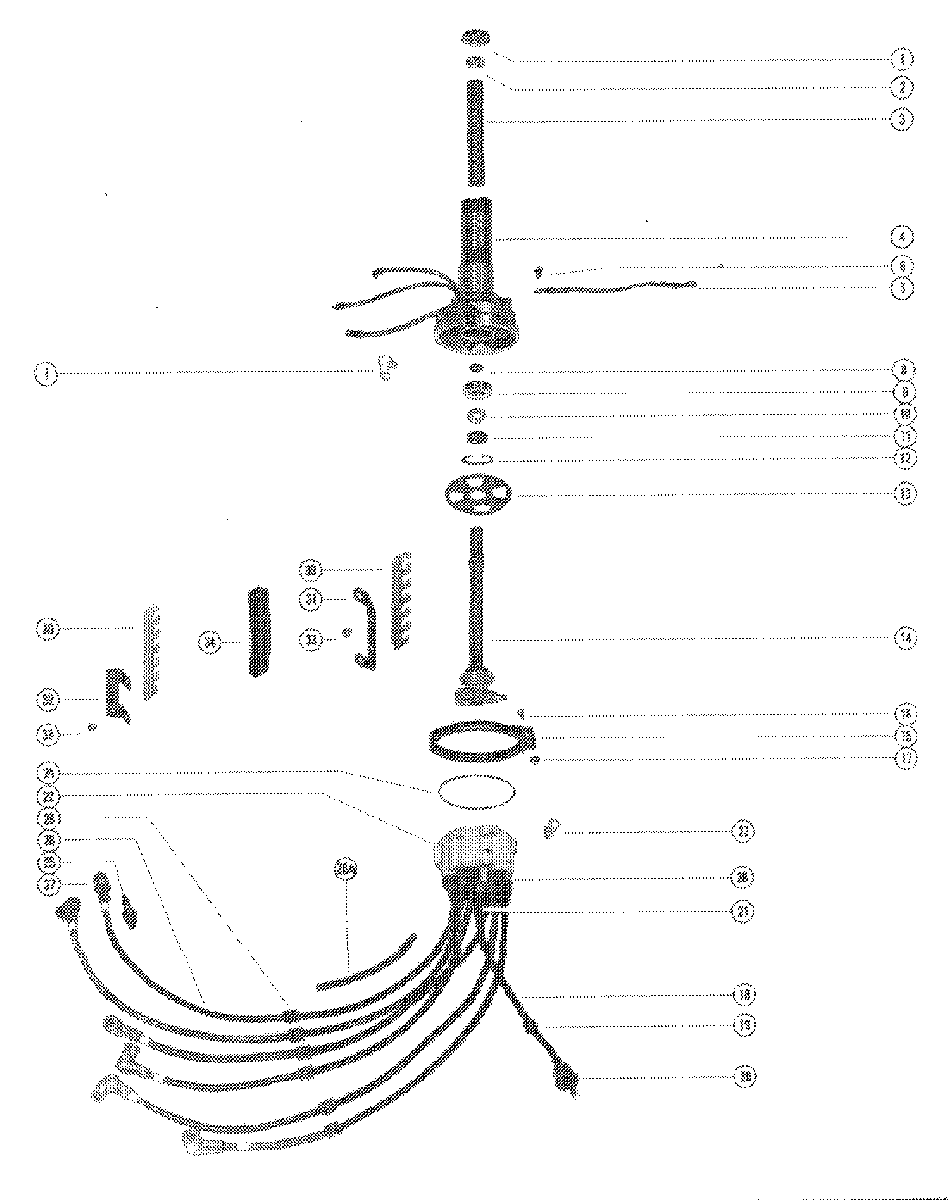

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 1500XS 4868648 THRU 5327662
-
№АртикулНазвание
-
130-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-53539 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
553417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
758807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSINGFLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING
-
815-55853 SHIM, BALL BEARING TO DISTRIBUTOR HOUSINGSHIM, BALL BEARING TO DISTRIBUTOR HOUSING
-
930-26379 BALL BEARING, DISTRIBUTOR HOUSING ( LOWER)BALL BEARING, DISTRIBUTOR HOUSING ( LOWER)
-
1015-21148A1 SHIM, BALL BEARING TO SPACERSHIM, BALL BEARING TO SPACER
-
1123-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
1253-26406 RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
-
13393-4313 DISC, ROTORDISC, ROTOR
-
14393-4312 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
1554-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG.
PART OF DISTRIBUTOR CAP ASSEMBLYCLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG.
PART OF DISTRIBUTOR CAP ASSEMBLY -
1610-65774 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
PART OF DISTRIBUTOR CAP ASSEMBLYSCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
PART OF DISTRIBUTOR CAP ASSEMBLY -
1711-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
PART OF DISTRIBUTOR CAP ASSEMBLYNUT, DISTRIBUTOR CAP CLAMP SCREW
PART OF DISTRIBUTOR CAP ASSEMBLY -
1884-821945A2 CABLE ASSEMBLY, CAP TO COILCABLE ASSEMBLY, CAP TO COIL
-
1925-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
20332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2185-94589 BOOT, HIGH TENSION CABLEBOOT, HIGH TENSION CABLE
-
22393-4841A2 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
22393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2358807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR CAPFLAME ARRESTOR, VENT - DISTRIBUTOR CAP
-
2427-55896 GASKET, DISTRIBUTOR CAPGASKET, DISTRIBUTOR CAP
-
2533-97180Q SPARK PLUG (CHAMPION L-76V)SPARK PLUG (CHAMPION L-76V)
-
2684-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS.SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS. -
268M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
2785-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
2885-94589 BOOT, SPARK PLUG LEAD TO DISTRIBUTORBOOT, SPARK PLUG LEAD TO DISTRIBUTOR
-
28A23-622381 SLEEVE, SPARK PLUG LEAD (7")SLEEVE, SPARK PLUG LEAD (7")
-
2925-26547 GROMMET, SPARK PLUG LEADSGROMMET, SPARK PLUG LEADS
-
3045409 WIRE RETAINER, HIGH TENSION LEADSWIRE RETAINER, HIGH TENSION LEADS
-
3145392 BRACKET, FRONT - WIRE RETAINERBRACKET, FRONT - WIRE RETAINER
-
3247398 BRACKET, REAR - WIRE RETAINERBRACKET, REAR - WIRE RETAINER
-
3310-62568 SCREW, FRONT AND REAR BRACKET ATTACHINGSCREW, FRONT AND REAR BRACKET ATTACHING
-
3445391 SPACER, RUBBER - HIGH TENSION LEADSSPACER, RUBBER - HIGH TENSION LEADS
