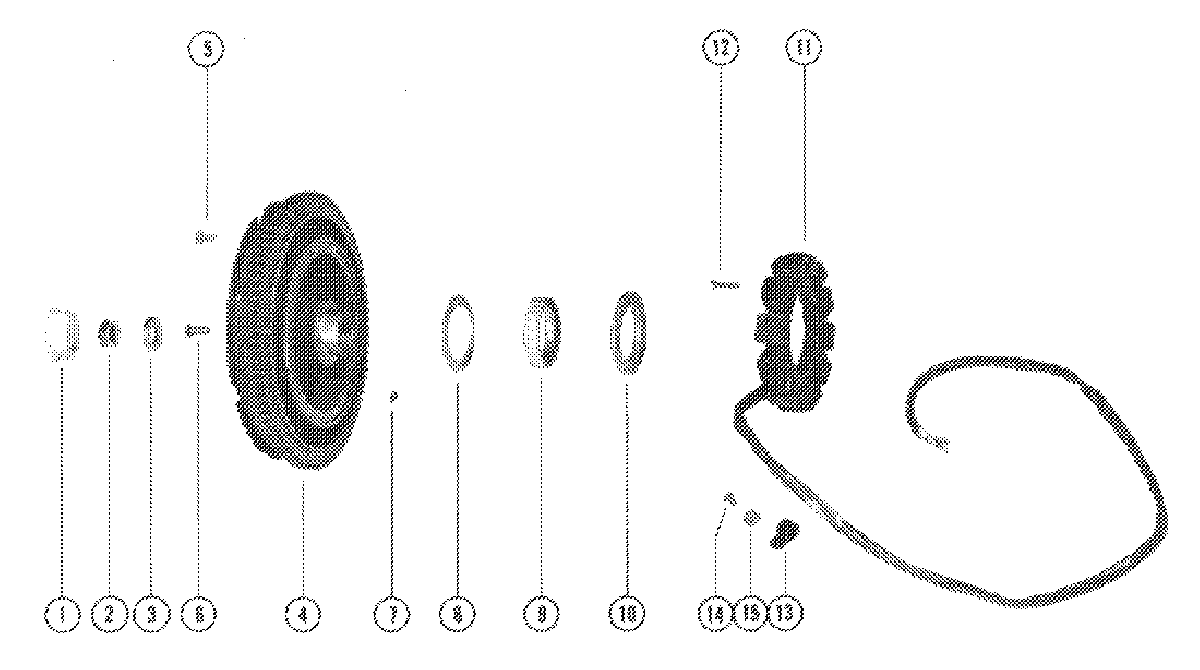

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1500XS 4868648 THRU 5327662
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)NUT, FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE - SERIAL GROUP #1FLYWHEEL ASSEMBLY, COMPLETE - SERIAL GROUP #1
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE - SERIAL GROUP #2FLYWHEEL ASSEMBLY, COMPLETE - SERIAL GROUP #2
-
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
610-68997 SCREW, PLATE/HUB TO FLEX. PLATE (7/8")SCREW, PLATE/HUB TO FLEX. PLATE (7/8")
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4793 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1210-75840 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1354-24871 CLIP, STATOR LEAD FASTENING (5/8")CLIP, STATOR LEAD FASTENING (5/8")
-
1354-22627 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")
-
1410-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")SCREW, STATOR LEAD CLIP FASTENING (3/8")
-
158M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
