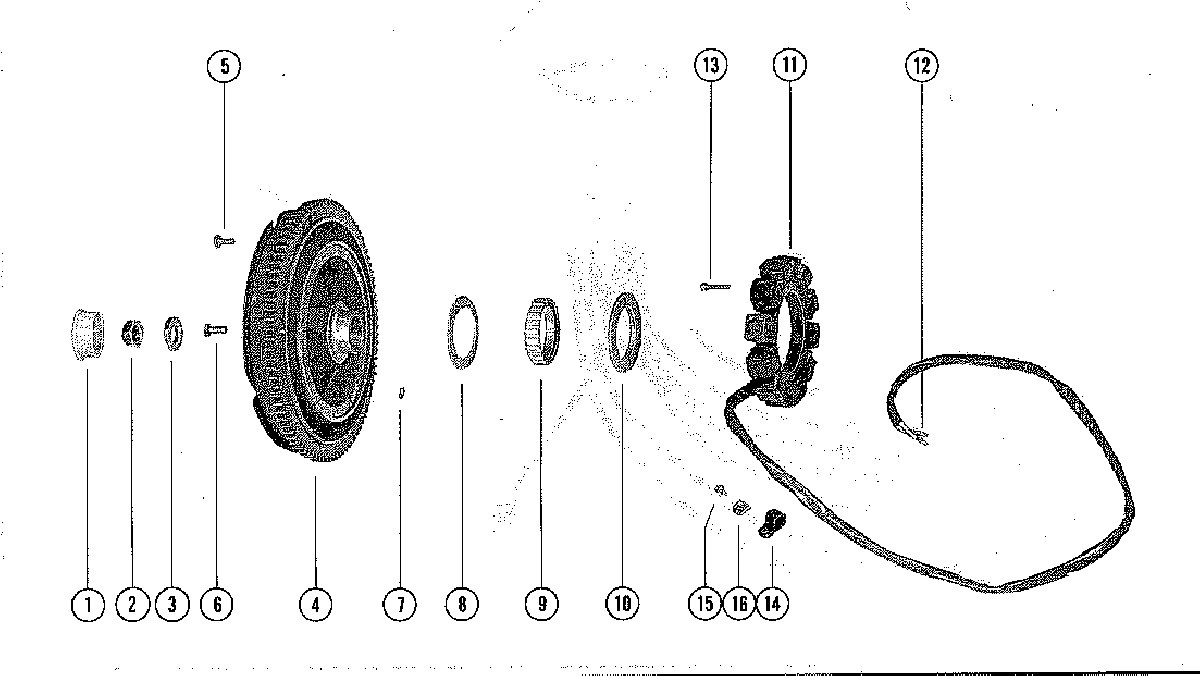

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1400 3293234 THRU 3502805

№

Артикул

Название
1

19-45907 PLUG, FLYWHEEL PULLER THREADS

PLUG, FLYWHEEL PULLER THREADS

430 ₽
2

11-52901 NUT, FLYWHEEL (PART OF A-436-48423A3 CRANKSHAFT ASSEMBLY)

NUT, FLYWHEEL (PART OF A-436-48423A3 CRANKSHAFT ASSEMBLY)

880 ₽
3

12-33001 WASHER, FLYWHEEL NUT

WASHER, FLYWHEEL NUT

600 ₽
4

225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE

FLYWHEEL ASSEMBLY, COMPLETE

0 ₽
5

10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")

SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")

100 ₽
6

10-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")

SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")

110 ₽
7

17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL

PIN, DOWEL - PULLEY TO FLYWHEEL

0 ₽
8

29788 FLANGE, FLYWHEEL PULLEY

FLANGE, FLYWHEEL PULLEY

0 ₽
9

14-20306 PULLEY, FLYWHEEL

PULLEY, FLYWHEEL

0 ₽
10

29787 HUB, FLYWHEEL PULLEY

HUB, FLYWHEEL PULLEY

0 ₽
11

398-4793 STATOR, ALTERNATOR

STATOR, ALTERNATOR

63 150 ₽
12

30050 TERMINAL, STATOR LEAD WIRE

TERMINAL, STATOR LEAD WIRE

0 ₽
13

10-63136 SCREW, STATOR TO UPPER END CAP (7/8")

SCREW, STATOR TO UPPER END CAP (7/8")

0 ₽
14

54-22875 CLIP, STATOR LEAD FASTENING (7/16")

CLIP, STATOR LEAD FASTENING (7/16")

300 ₽
14

54-26550 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")

CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")

190 ₽
15

10-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")

SCREW, STATOR LEAD CLIP FASTENING (3/8")

70 ₽
16

8M0084613 "D" WASHER, CLIP FASTENING SCREW

"D" WASHER, CLIP FASTENING SCREW

100 ₽
