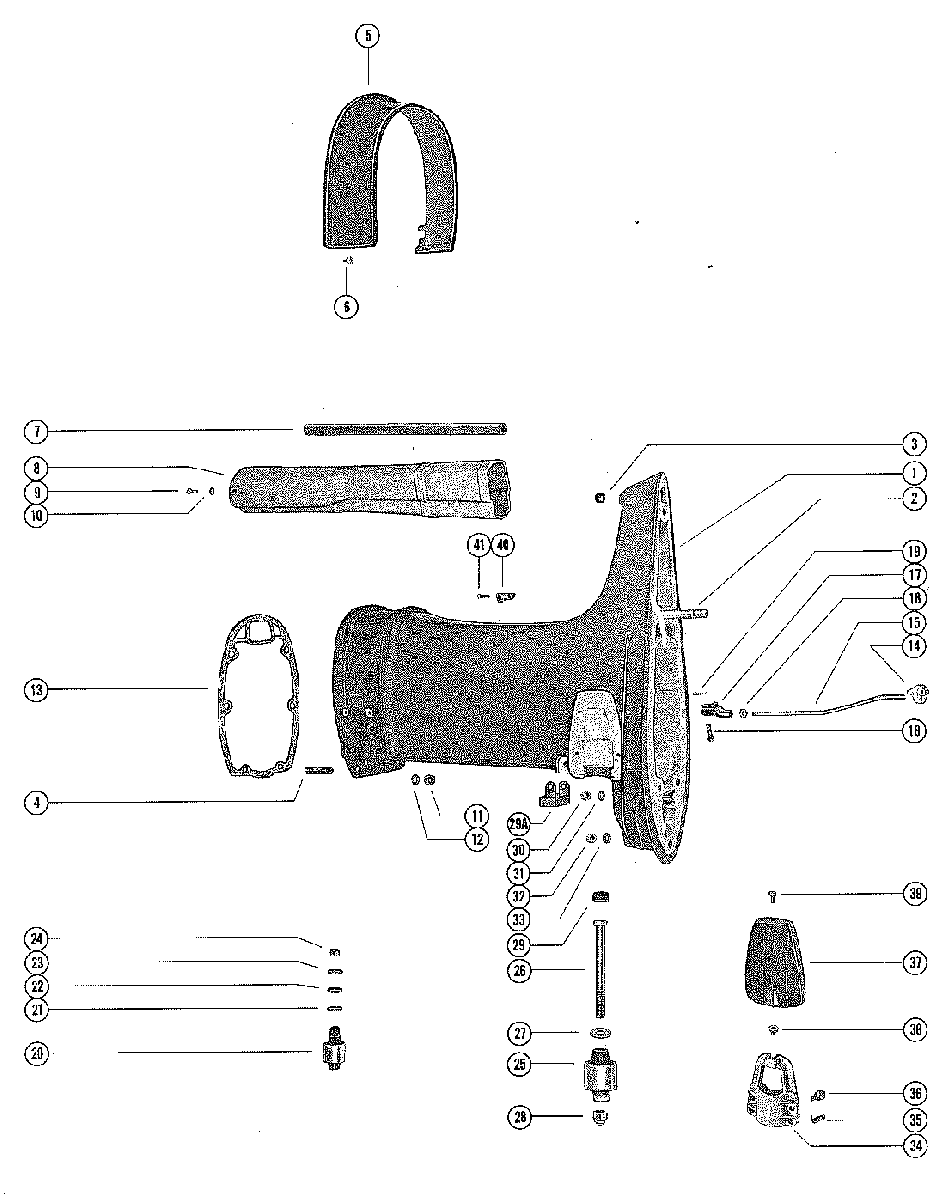

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1400 3293234 THRU 3502805

  • №
    Артикул
    Название
  • 1
    1575-5240A4 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1573-5239A4 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    19-824928001 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 4
    16-34378 STUD, DRIVE SHAFT HSG. TO DRIVE SHAFT HSG. PLATE (2 5/16")
    STUD, DRIVE SHAFT HSG. TO DRIVE SHAFT HSG. PLATE (2 5/16")
  • 5
    37417 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 6
    10-57807 SCREW, TRIM COVER TO BOTTOM COWL
    SCREW, TRIM COVER TO BOTTOM COWL
  • -
    25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREW
    GROMMET, PLASTIC - TRIM COVER SCREW
  • 7
    32-62864 TUBE, WATER INLET- SHORT SHAFT
    TUBE, WATER INLET- SHORT SHAFT
  • 8
    66345A1 TUBE, EXHAUST -SHORT SHAFT
    TUBE, EXHAUST -SHORT SHAFT
  • 7
    32-60897 TUBE, WATER INLET- LONG SHAFT
    TUBE, WATER INLET- LONG SHAFT
  • 8
    66344A1 TUBE, EXHAUST- LONG SHAFT
    TUBE, EXHAUST- LONG SHAFT
  • 9
    10-28636 SCREW, EXHAUST TUBE ATTACHING (3/4")
    SCREW, EXHAUST TUBE ATTACHING (3/4")
  • 10
    13-26992 LOCKWASHER, EXHAUST TUBE SCREW
    LOCKWASHER, EXHAUST TUBE SCREW
  • 11
    11-8M0042636 NUT, POWERHEAD STUDS (3/8-24)
    NUT, POWERHEAD STUDS (3/8-24)
  • 12
    12-20086 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 13
    27-66335 GASKET, PLATE TO DRIVE SHAFT HOUSING
    GASKET, PLATE TO DRIVE SHAFT HOUSING
  • 14
    52887 GUIDE, PUSH ROD - REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM.
    GUIDE, PUSH ROD - REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM.
  • 15
    47591 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    NOT USED WITH FULL POWER TRIM.
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    NOT USED WITH FULL POWER TRIM.
  • 16
    11-69254 NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM.
    NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM.
  • 17
    47559 YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM.
    YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM.
  • 18
    24-78203A2 PIN, PUSH ROD TO REVERSE LOCK
    NOT USED WITH FULL POWER TRIM.
    PIN, PUSH ROD TO REVERSE LOCK
    NOT USED WITH FULL POWER TRIM.
  • 19
    18-25191 COTTER PIN, PUSH ROD PIN
    NOT USED WITH FULL POWER TRIM.
    COTTER PIN, PUSH ROD PIN
    NOT USED WITH FULL POWER TRIM.
  • 20
    75297 MOUNT, RUBBER - UPPER (SHORT SHAFT)
    MOUNT, RUBBER - UPPER (SHORT SHAFT)
  • 20
    75296 MOUNT, RUBBER - UPPER (LONG SHAFT)
    MOUNT, RUBBER - UPPER (LONG SHAFT)
  • 21
    12-31262 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 22
    12-47840 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 23
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 24
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 25
    75300 MOUNT, RUBBER - LOWER (SHORT SHAFT)
    MOUNT, RUBBER - LOWER (SHORT SHAFT)
  • 25
    75299 MOUNT, RUBBER - LOWER (LONG SHAFT)
    MOUNT, RUBBER - LOWER (LONG SHAFT)
  • 26
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 27
    12-49339 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 28
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 29
    25067 BUMPER, RUBBER - LOWER MOUNTING SCREW
    BUMPER, RUBBER - LOWER MOUNTING SCREW
  • 29A
    66336 BUMPER ASSEMBLY, RUBBER - DRIVE SHAFT HOUSING (SHORT SHAFT)
    BUMPER ASSEMBLY, RUBBER - DRIVE SHAFT HOUSING (SHORT SHAFT)
  • 30
    11-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 31
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 32
    11-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
  • 33
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 34
    35608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 35
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 36
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
  • 37
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 38
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 39
    10-29722 SCREW, COVER TO LOWER CLAMP MOUNT
    SCREW, COVER TO LOWER CLAMP MOUNT
  • 40
    62497 BRACKET, SUPPORT - DRIVE SHAFT -LONG SHAFT
    BRACKET, SUPPORT - DRIVE SHAFT -LONG SHAFT
  • 41
    10-48409 SCREW, SUPPORT BRACKET ATTACHING (5/8") -LONG SHAFT
    SCREW, SUPPORT BRACKET ATTACHING (5/8") -LONG SHAFT
