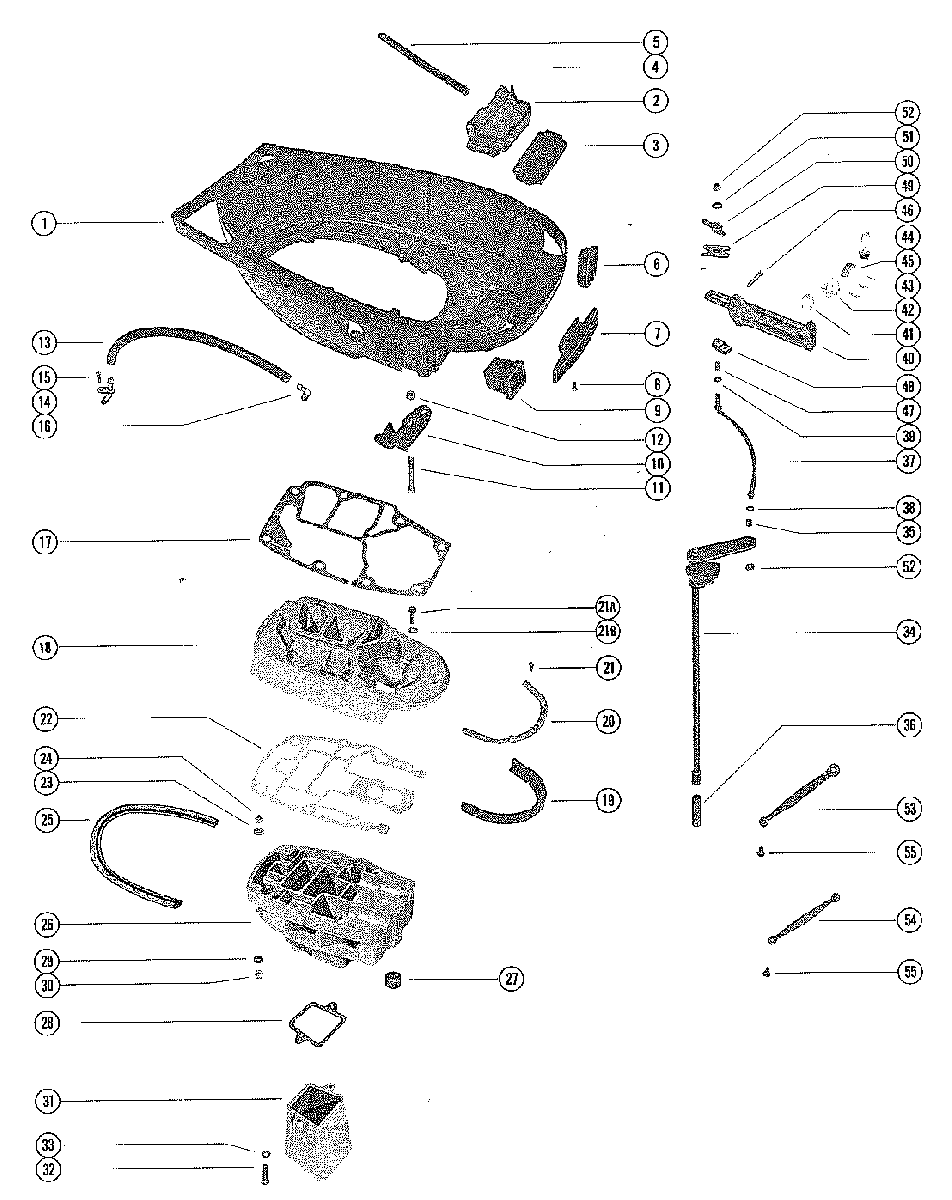

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1400 3293234 THRU 3502805

  • №
    Артикул
    Название
  • 1
    2115-3919 COWL, BOTTOM
    COWL, BOTTOM
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-35519 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 7
    76369 SPACER, BOTTOM COWL (COWL FRONT COVER)
    SPACER, BOTTOM COWL (COWL FRONT COVER)
  • 8
    10-48591 SCREW, SPACER TO BOTTOM COWL (1/2")
    SCREW, SPACER TO BOTTOM COWL (1/2")
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 11
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
  • 11
    10-88488 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
  • 12
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 13
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 14
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 15
    10-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 16
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 17
    27-692381 GASKET, CYLINDER BLOCK TO EXHAUST EXTENSION PLATE
    GASKET, CYLINDER BLOCK TO EXHAUST EXTENSION PLATE
  • 18
    60432A1 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 19
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 20
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 21
    10-37571 SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
    SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
  • 21A
    10-62644 SCREW, ADAPTOR PLATE ATTACHING (5/16")
    SCREW, ADAPTOR PLATE ATTACHING (5/16")
  • 21B
    13-26993 LOCKWASHER, ADAPTOR PLATE SCREW
    LOCKWASHER, ADAPTOR PLATE SCREW
  • 22
    27-661021 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING PLATE
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING PLATE
  • 23
    12-20722 WASHER, DRIVE SHAFT HOUSING STUD
    WASHER, DRIVE SHAFT HOUSING STUD
  • 24
    11-862902 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
  • 25
    26-60898 SEAL, DRIVE SHAFT HOUSING PLATE
    SEAL, DRIVE SHAFT HOUSING PLATE
  • 26
    43543A1 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 27
    26-38970 SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HOUSING PLATE)
    SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HOUSING PLATE)
  • 28
    27-62362 GASKET, MEGAPHONE TO DRIVE SHAFT HOUSING PLATE
    GASKET, MEGAPHONE TO DRIVE SHAFT HOUSING PLATE
  • 29
    12-20553 WASHER, CYLINDER BLOCK STUD
    WASHER, CYLINDER BLOCK STUD
  • 30
    11-23161 NUT, CYLINDER BLOCK STUD
    NUT, CYLINDER BLOCK STUD
  • 31
    99699 MEGAPHONE, EXHAUST
    MEGAPHONE, EXHAUST
  • 32
    10-60480 SCREW, MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8")
    SCREW, MEGAPHONE TO DRIVE SHAFT HOUSING PLATE (1 1/8")
  • 33
    13-26992 LOCKWASHER, MEGAPHONE SCREW
    LOCKWASHER, MEGAPHONE SCREW
  • 34
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 34
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 35
    23-26600 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 36
    93960A1 COUPLING, SHIFT SHAFT
    COUPLING, SHIFT SHAFT
  • 37
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 38
    12-24664 WASHER, LINK ROD
    WASHER, LINK ROD
  • 39
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 40
    52732A6 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 41
    39519 CAP, BARREL RETAINER - ANCHOR BRACKET
    CAP, BARREL RETAINER - ANCHOR BRACKET
  • 42
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 43
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 44
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 45
    39536 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 46
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 47
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 48
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 49
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 50
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
  • 51
    12-69056 WASHER, PLAIN - LINK ROD
    WASHER, PLAIN - LINK ROD
  • 52
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 53
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
    GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
  • 54
    46933A2 GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
    GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
  • 55
    10-62568 SCREW, GROUND STRAP FASTENING
    SCREW, GROUND STRAP FASTENING
