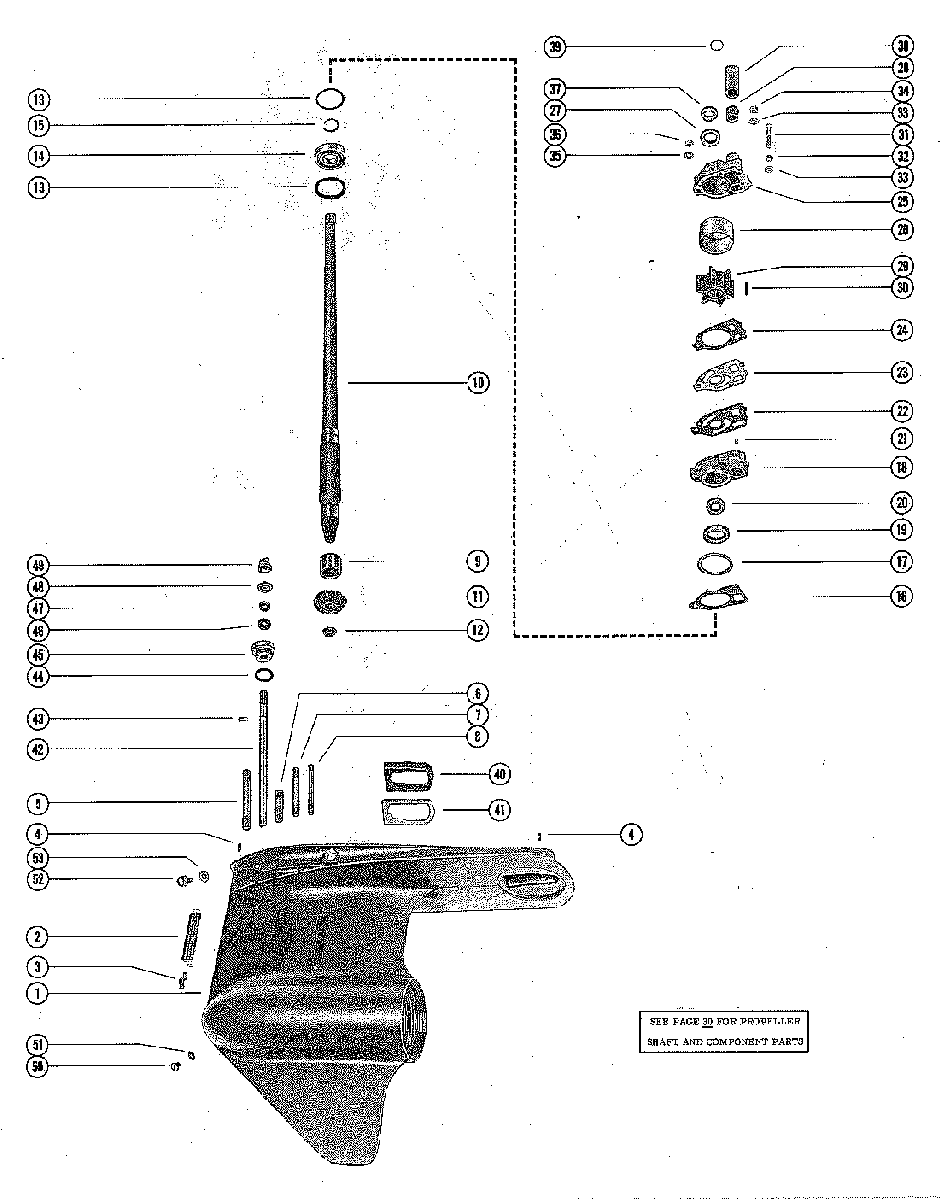

GEAR HOUSING ASSEMBLY, COMPLETE (CONT) для Mercury - 1350 2839369 THRU 3293233

  • №
    Артикул
    Название
  • -
    1623-4934A21 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTSFROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTSFROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30
  • -
    1623-4934A20 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTSFROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTSFROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30
  • 1
    1623-5244A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    55662 SCREEN, WATER INLET
    EARLY MODELS ONLY
    SCREEN, WATER INLET
    EARLY MODELS ONLY
  • 3
    24-57430 SPRING, WATER INLET SCREEN RETAINING
    EARLY MODELS ONLY
    SPRING, WATER INLET SCREEN RETAINING
    EARLY MODELS ONLY
  • 4
    17-21438 DOWEL PIN, GEAR HOUSING LOCATIN
    DOWEL PIN, GEAR HOUSING LOCATIN
  • 5
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
  • 6
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16)
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16)
  • 7
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
  • 8
    16-57919 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16)
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16)
  • 9
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 10
    45-47433 DRIVE SHAFT (SHORT SHAFT)
    SERIAL 00000000-02910020
    DRIVE SHAFT (SHORT SHAFT)
    SERIAL 00000000-02910020
  • 10
    45-47434 DRIVE SHAFT (LONG SHAFT)
    SERIAL 00000000-02910020
    DRIVE SHAFT (LONG SHAFT)
    SERIAL 00000000-02910020
  • 10
    45-64388 DRIVE SHAFT (SHORT SHAFT)
    SERIAL 02940021-09999999
    DRIVE SHAFT (SHORT SHAFT)
    SERIAL 02940021-09999999
  • 10
    45-64389 DRIVE SHAFT (LONG SHAFT)
    SERIAL 02940021-09999999
    DRIVE SHAFT (LONG SHAFT)
    SERIAL 02940021-09999999
  • 11
    43-55688 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 13
    15-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
    SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
  • 14
    30-63326T BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 15
    53-30726 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 16
    27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 17
    25-30224 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 18
    46-48747A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 19
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 20
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 21
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 22
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 23
    324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 24
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 25
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 26
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 27
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 28
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 29
    47-89984T4 IMPELLER - WATER PUMP
    IMPELLER - WATER PUMP
  • 30
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 31
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
  • 32
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW
    LOCKWASHER, WATER PUMP BODY SCREW
  • 33
    12-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
    WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
  • 34
    11-826709109 NUT, WATER PUMP FASTENING SCREW
    NUT, WATER PUMP FASTENING SCREW
  • 35
    12-36001 WASHER, WATER PUMP BODY FASTENING STUD
    WASHER, WATER PUMP BODY FASTENING STUD
  • 36
    11-826709111 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 37
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 38
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 39
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 40
    37641001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 41
    38051 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 42
    76062A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 43
    53-29641 "E" RING, RETAINING - SHIFT SHAFT
    "E" RING, RETAINING - SHIFT SHAFT
  • 44
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 45
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 46
    26-24590 OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
    OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
  • 46
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 47
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 48
    78036 SPACER, LOWER - REVERSE LOCKING
    SPACER, LOWER - REVERSE LOCKING
  • 49
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 50
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 51
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 52
    19-48750 PLUG, GEAR HOUSING FLUSHING HOLE
    PLUG, GEAR HOUSING FLUSHING HOLE
  • 53
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUG
    WASHER, GEAR HOUSING FLUSHING HOLE PLUG
