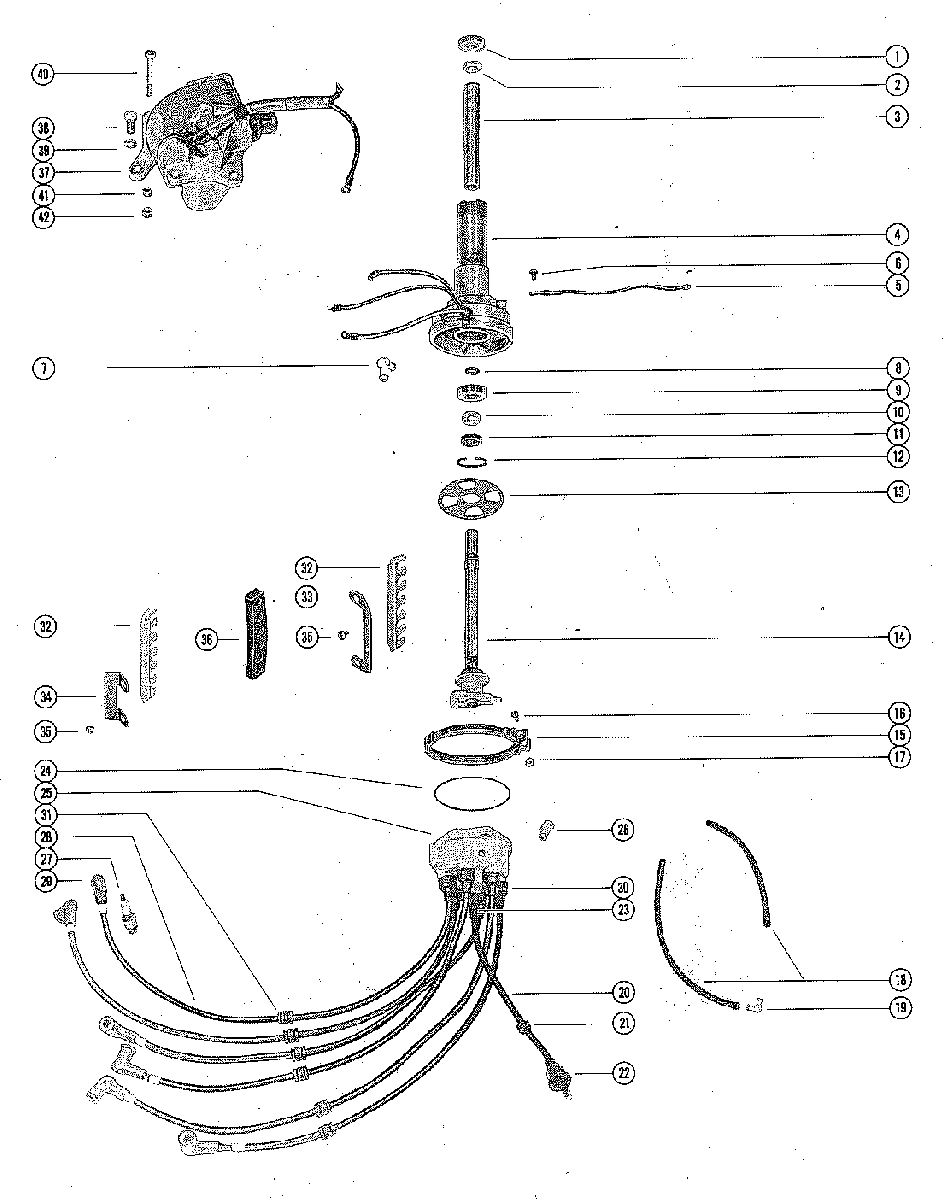

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 1350 2839369 THRU 3293233

  • №
    Артикул
    Название
  • 1
    30-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
    BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
  • 2
    11-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
    NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
  • 3
    23-53539 SLEEVE, ROTOR SHAFT
    SLEEVE, ROTOR SHAFT
  • 4
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02942990
    HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02942990
  • 4
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 03036066-09999999
    HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 03036066-09999999
  • 5
    53417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
  • 6
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • 7
    22-55262 ELBOW, VENT - DISTRIBUTOR HOUSING
    ELBOW, VENT - DISTRIBUTOR HOUSING
  • 8
    15-55853 SHIM, BALL BEARING TO DISTRIBUTOR HOUSING
    SHIM, BALL BEARING TO DISTRIBUTOR HOUSING
  • 9
    30-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
    BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
  • 10
    15-21148A1 SHIM, BALL BEARING TO SPACER
    SHIM, BALL BEARING TO SPACER
  • 11
    23-53538 SPACER, ROTOR SHAFT
    SPACER, ROTOR SHAFT
  • 12
    53-26406 RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
    RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
  • 13
    393-4248 DISC, ROTOR
    SERIAL 00000000-02940020
    DISC, ROTOR
    SERIAL 00000000-02940020
  • 14
    393-4371 ROTOR, DISTRIBUTOR
    SERIAL 00000000-02940020
    ROTOR, DISTRIBUTOR
    SERIAL 00000000-02940020
  • 13
    393-4313 DISC, ROTOR
    SERIAL 02940021-09999999
    DISC, ROTOR
    SERIAL 02940021-09999999
  • 14
    393-4312 ROTOR, DISTRIBUTOR
    SERIAL 02940021-09999999
    ROTOR, DISTRIBUTOR
    SERIAL 02940021-09999999
  • 15
    54-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 00000000-00294290
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 00000000-00294290
  • 15
    54-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 03036066-09999999
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    SERIAL 03036066-09999999
  • 16
    10-54281 SCREW, DISTRIBUTOR CAP CLAMP (1 1/4")
    SCREW, DISTRIBUTOR CAP CLAMP (1 1/4")
  • 17
    11-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
    NUT, DISTRIBUTOR CAP CLAMP SCREW
  • 18
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2")
  • 18
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2")
  • 19
    22-31521 ELBOW, VENT HOSE TO BOTTOM COWL
    ELBOW, VENT HOSE TO BOTTOM COWL
  • 20
    84-821945A5 HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL
    HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL
  • 21
    25-26547 GROMMET, HIGH TENSION CABLE
    GROMMET, HIGH TENSION CABLE
  • 22
    332-2854T01 BOOT, HIGH TENSION CABLE TO COIL
    BOOT, HIGH TENSION CABLE TO COIL
  • 23
    85-94589 SLEEVE, HIGH TENSION CABLE
    SLEEVE, HIGH TENSION CABLE
  • 24
    27-55896 GASKET, DISTRIBUTOR CAP
    GASKET, DISTRIBUTOR CAP
  • 25
    393-4841A2 DISTRIBUTOR CAP ASSEMBLY
    SERIAL 00000000-02942990
    DISTRIBUTOR CAP ASSEMBLY
    SERIAL 00000000-02942990
  • 25
    393-4841A2 DISTRIBUTOR CAP ASSEMBLY
    SERIAL 03036066-09999999
    DISTRIBUTOR CAP ASSEMBLY
    SERIAL 03036066-09999999
  • --
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 26
    22-31521 ELBOW, VENT - DISTRIBUTOR CAP
    ELBOW, VENT - DISTRIBUTOR CAP
  • 27
    33-97180Q SPARK PLUG (AC-V40FFM)
    SPARK PLUG (AC-V40FFM)
  • 28
    84-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 29
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
  • 30
    85-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
    SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
  • 31
    25-26547 GROMMET, SPARK PLUG LEADS
    GROMMET, SPARK PLUG LEADS
  • 32
    45409 WIRE RETAINER, HIGH TENSION LEADS
    WIRE RETAINER, HIGH TENSION LEADS
  • 33
    45392 BRACKET, FRONT - WIRE RETAINER
    BRACKET, FRONT - WIRE RETAINER
  • 34
    47398 BRACKET, REAR - WIRE RETAINER
    BRACKET, REAR - WIRE RETAINER
  • 35
    10-62568 SCREW, FRONT AND REAR BRACKET ATTACHING
    SCREW, FRONT AND REAR BRACKET ATTACHING
  • 36
    45391 SPACER, RUBBER - HIGH TENSION LEADS
    SPACER, RUBBER - HIGH TENSION LEADS
  • 37
    332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
    IGNITION COIL ASSEMBLY, COMPLETE
  • 38
    10-24624 SCREW, COIL MOUNTING BRACKET (1 3/4")
    SCREW, COIL MOUNTING BRACKET (1 3/4")
  • 39
    13-26992 LOCKWASHER, COIL MOUNTING BRACKET
    LOCKWASHER, COIL MOUNTING BRACKET
  • 40
    10-88488 SCREW, COIL MOUNTING BRACKET (3 1/4")
    SCREW, COIL MOUNTING BRACKET (3 1/4")
  • 41
    23-52933 SPACER, COIL BRACKET TO BOTTOM COWL
    SPACER, COIL BRACKET TO BOTTOM COWL
  • 42
    11-20184 NUT, COIL MOUNTING BRACKET SCREW
    NUT, COIL MOUNTING BRACKET SCREW
