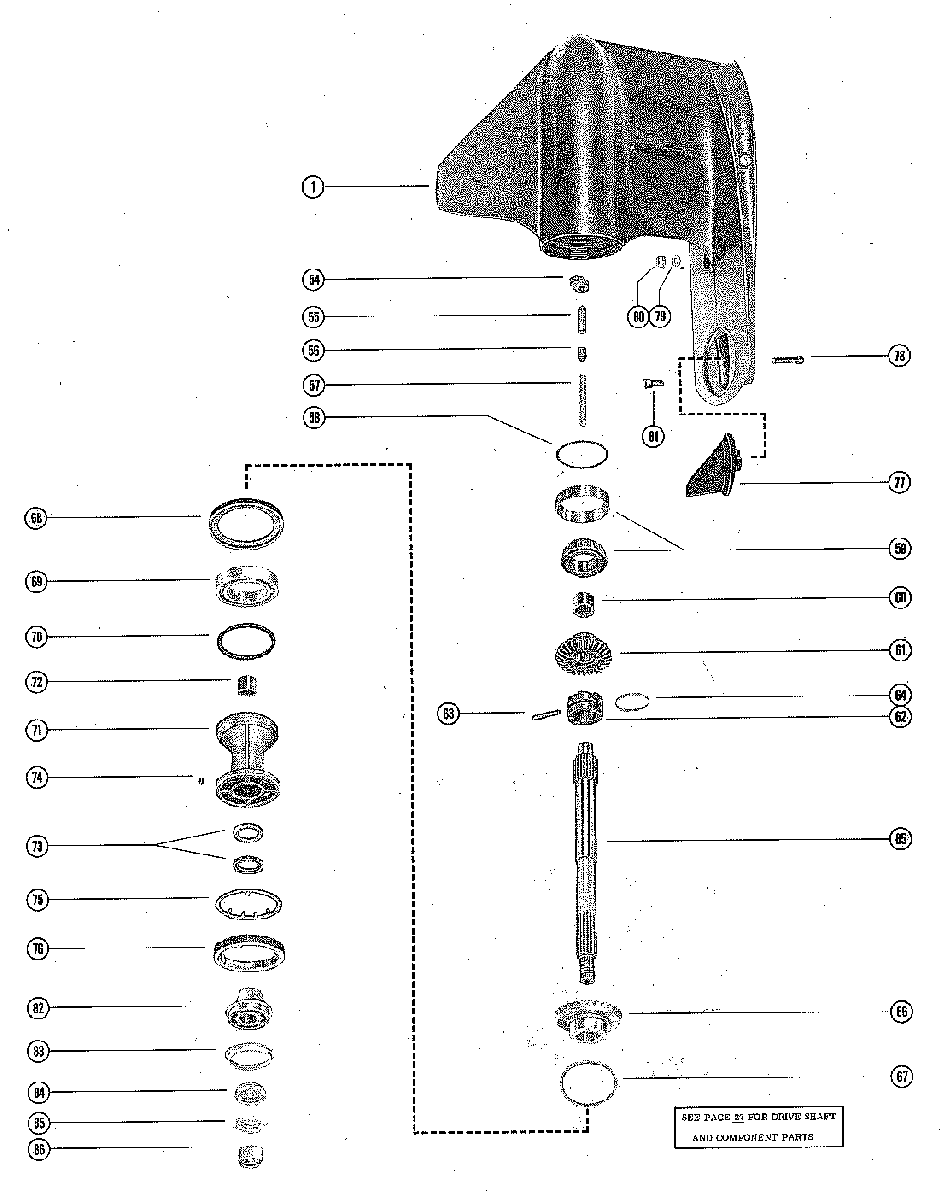

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 1350 2839369 THRU 3293233

№

Артикул

Название
-

1623-4934A21 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30

GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30

0 ₽
-

1623-4934A20 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30

GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLIES, COMPLETE INCLUDE ALL PARTS FROM REFERENCE #78 AS LISTED ON PAGES 27 AND 30

0 ₽
1

1623-5244A6 GEAR HOUSING ASSEMBLY (SEE PAGE 27 FOR PARTS BREAKDOWN)

GEAR HOUSING ASSEMBLY (SEE PAGE 27 FOR PARTS BREAKDOWN)

0 ₽
54

760394 CAM, SHIFT

CAM, SHIFT

2 570 ₽
55

30625 FOLLOWER, CAM

FOLLOWER, CAM

4 130 ₽
56

30624 SLIDE, CROSS PIN

SLIDE, CROSS PIN

0 ₽
57

24-30622 SPRING, COMPRESSION - CAM FOLLOWER

SPRING, COMPRESSION - CAM FOLLOWER

490 ₽
58

15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)

SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)

0 ₽
59

31-30894A1 TAPERED ROLLER BEARING ASSEMBLY

TAPERED ROLLER BEARING ASSEMBLY

8 380 ₽
60

31-30895T BEARING, ROLLER - FORWARD GEAR

BEARING, ROLLER - FORWARD GEAR

1 550 ₽
61

43-57011A4 FORWARD GEAR ASSEMBLY

FORWARD GEAR ASSEMBLY

0 ₽
62

52-822539T RATCHET, SLIDING CLUTCH

RATCHET, SLIDING CLUTCH

23 870 ₽
63

17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT

PIN, CROSS - RATCHET TO PROPELLER SHAFT

330 ₽
64

24-30893 SPRING, RETAINING - CROSS PIN

SPRING, RETAINING - CROSS PIN

220 ₽
65

44-93003 SHAFT, PROPELLER

SHAFT, PROPELLER

41 390 ₽
66

43-55689 REVERSE GEAR ASSEMBLY

REVERSE GEAR ASSEMBLY

0 ₽
67

15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)

SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)

2 520 ₽
68

12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING

WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING

0 ₽
69

30-31265 BEARING, BALL - REVERSE GEAR

BEARING, BALL - REVERSE GEAR

9 350 ₽
70

25-29976 "O" RING, BEARING CARRIER

"O" RING, BEARING CARRIER

480 ₽
71

52132T1 BEARING CARRIER ASSEMBLY

BEARING CARRIER ASSEMBLY

25 340 ₽
72

31-30956T BEARING, ROLLER - BEARING CARRIER

BEARING, ROLLER - BEARING CARRIER

1 350 ₽
73

26-76868 OIL SEAL, BEARING CARRIER

OIL SEAL, BEARING CARRIER

950 ₽
74

28-30281 KEY, LOCATING - BEARING CARRIER

KEY, LOCATING - BEARING CARRIER

220 ₽
75

14-52700 TAB WASHER, GEAR HOUSING COVER

TAB WASHER, GEAR HOUSING COVER

2 040 ₽
76

52699 COVER, GEAR HOUSING

COVER, GEAR HOUSING

2 900 ₽
77

97-31640Q4 TRIM TAB, GEAR HOUSING

TRIM TAB, GEAR HOUSING

1 530 ₽
78

10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")

SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")

630 ₽
79

12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS

WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS

130 ₽
80

11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS

NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS

440 ₽
81

10-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")

SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")

170 ₽
82

65091Q01 THRUST HUB AND WASHER ASSEMBLY
PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE

THRUST HUB AND WASHER ASSEMBLY
PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE

3 940 ₽
83

12-29590 WASHER, CUPPED - THRUST HUB
PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE

WASHER, CUPPED - THRUST HUB
PART OF A-1623-3909A3 AND A5 GEAR HOUSING ASSEMBLY, COMPLETE

0 ₽
84

12-31211Q03 WASHER, SPLINED - PROPELLER NUT

WASHER, SPLINED - PROPELLER NUT

1 520 ₽
85

14-816629Q TAB WASHER, PROPELLER NUT

TAB WASHER, PROPELLER NUT

460 ₽
86

11-52707Q1 NUT, PROPELLER

NUT, PROPELLER

1 530 ₽
