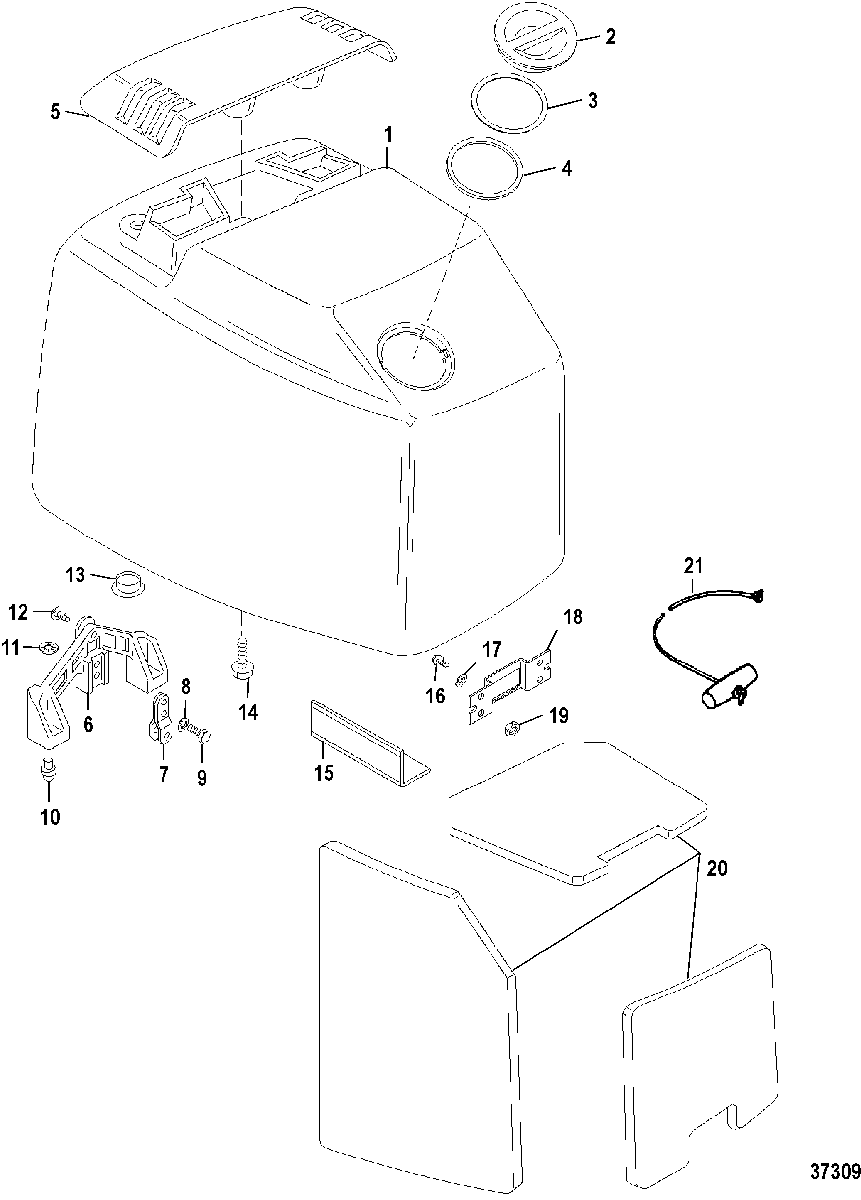

TOP COWL(S/N-USA-0G301751/BEL-9885505 AND UP) для Mercury - 125 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
14026-828354T8 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14026-828354T9 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
14026-828354A10 TOP COWL ASSEMBLY, Silver Cowl And Black Cap
(TRACKER)TOP COWL ASSEMBLY, Silver Cowl And Black Cap
(TRACKER) -
2828716A2 CAPCAP
-
3828352 SEALSEAL
-
48283511 SEALSEAL
-
58218751 CAP, Upper
(BLACK)CAP, Upper
(BLACK) -
58218751 CAP, Upper
(SILVER)CAP, Upper
(SILVER) -
6819813T1 BRACKET, Cover LatchBRACKET, Cover Latch
-
7893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
813-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
910-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
10F481434 GUIDE, Cowl Latch BracketGUIDE, Cowl Latch Bracket
-
1111-91925 PUSH NUTPUSH NUT
-
1210-822512 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
1319-823865 CAP PLUGCAP PLUG
-
1410-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15823830 SUPPORTSUPPORT
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
188233941 BRACKETBRACKET
-
1911-8237515 NUT, (M4)NUT, (M4)
-
20823583A02 SOUND BLANKET KITSOUND BLANKET KIT
-
2147341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
