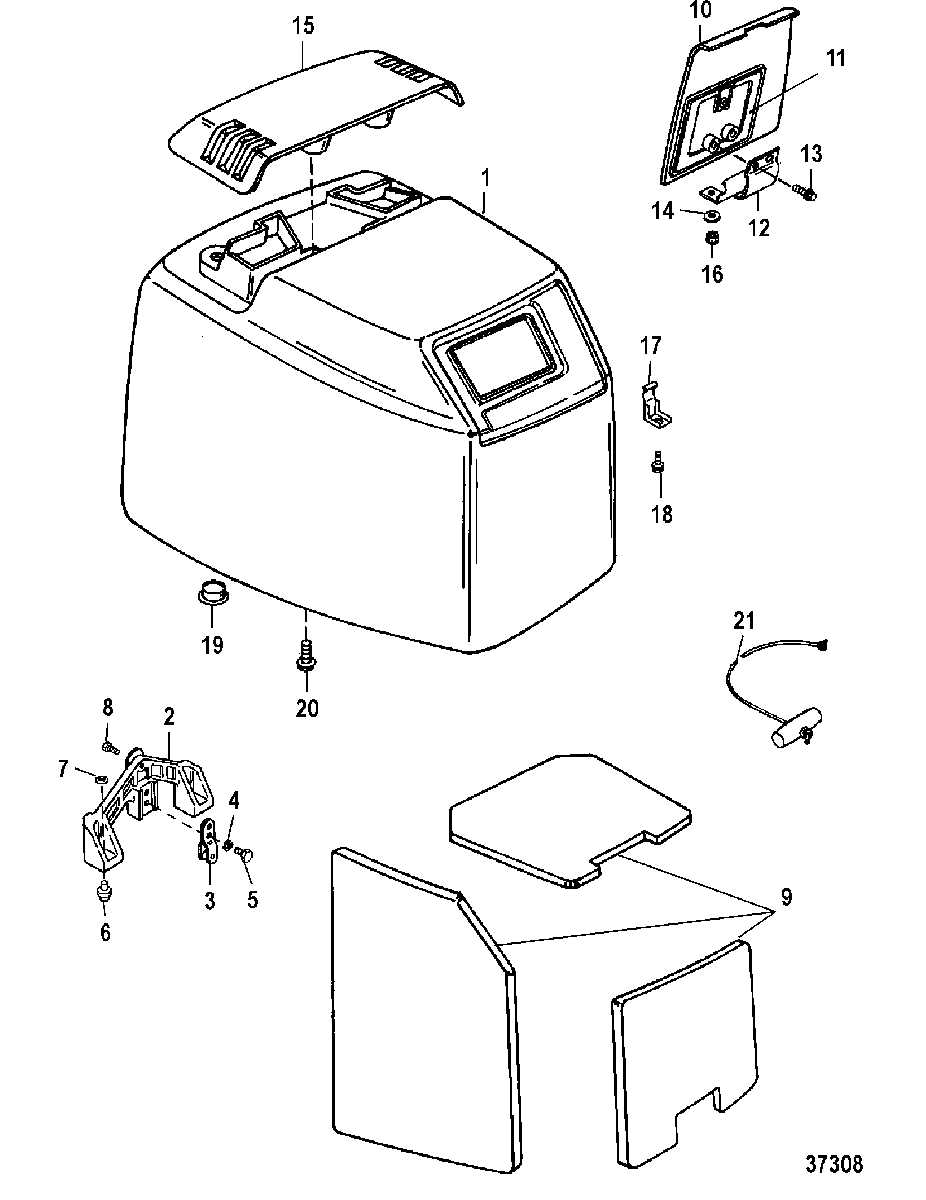

TOP COWL(S/N-USA-0G301750/ BEL-9885504 AND BELOW) для Mercury - 125 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
14026-828354A11 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14026-828354A12 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
14026-828354A13 TOP COWL ASSEMBLY
(TRACKER GRAPHITE GRAY)TOP COWL ASSEMBLY
(TRACKER GRAPHITE GRAY) -
2819813T1 BRACKET, Cover LatchBRACKET, Cover Latch
-
3893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
413-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
510-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
6F481434 GUIDE, Cowl Latch BracketGUIDE, Cowl Latch Bracket
-
711-91925 PUSH NUTPUSH NUT
-
810-822512 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
9823583A02 SOUND BLANKET KITSOUND BLANKET KIT
-
10821912A1 TRAP DOOR
(BLACK)TRAP DOOR
(BLACK) -
10821912A2 TRAP DOOR
(SILVER)TRAP DOOR
(SILVER) -
10821912A3 TRAP DOOR
(TRACKER GRAPHITE GRAY)TRAP DOOR
(TRACKER GRAPHITE GRAY) -
118239671 SEAL, Trap DoorSEAL, Trap Door
-
1217-8220551 PIN, HingePIN, Hinge
-
1310-82104512 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
1412-4002316 WASHERWASHER
-
158218751 CAP, Upper
(BLACK)CAP, Upper
(BLACK) -
158218751 CAP, Upper
(SILVER)CAP, Upper
(SILVER) -
158218751 CAP, Upper
(TRACKER GRAPHITE GRAY)CAP, Upper
(TRACKER GRAPHITE GRAY) -
1611-401386 NUT, (M6)NUT, (M6)
-
178239601 CATCHCATCH
-
1810-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1919-823865 CAP PLUGCAP PLUG
-
2010-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2147341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
