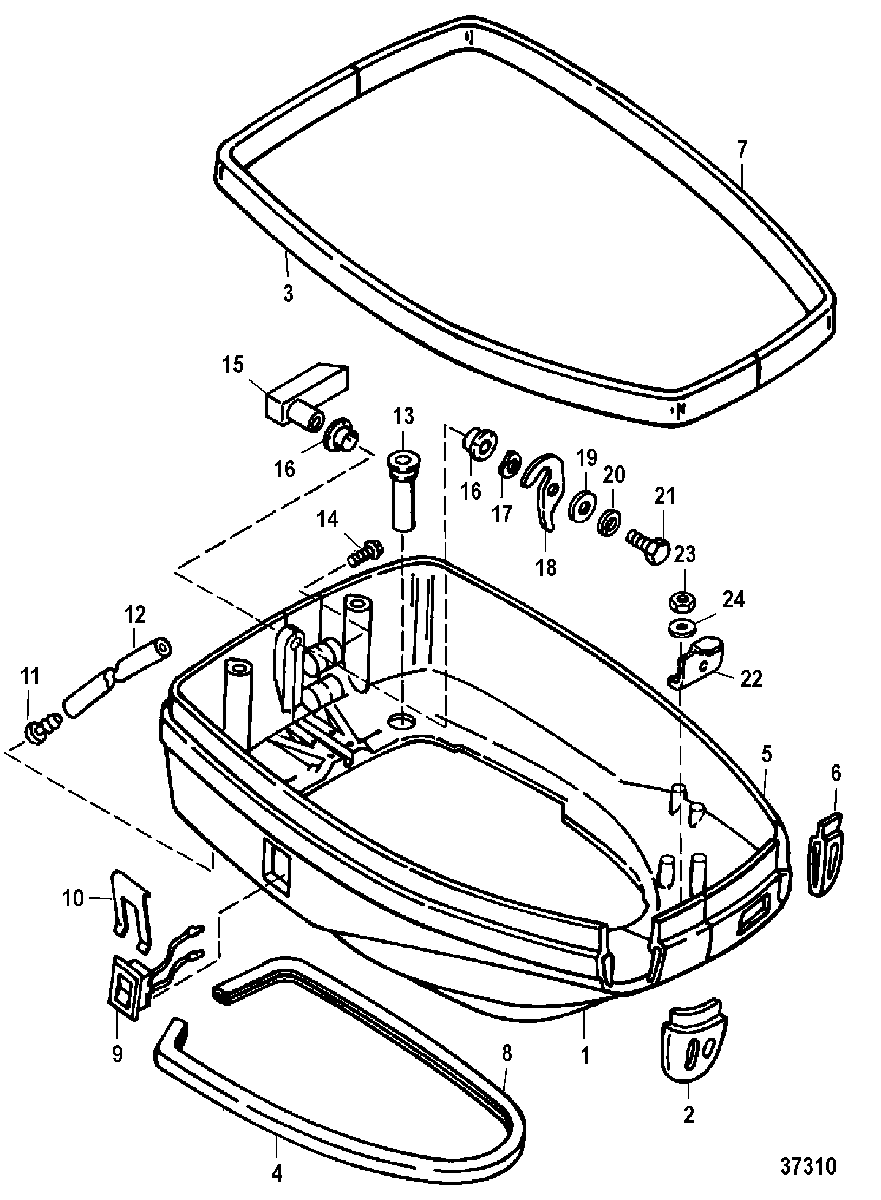

BOTTOM COWL для Mercury - 125 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
1100-8M0113918 BOTTOM COWL ASSEMBLY, Starboard
(BLACK)BOTTOM COWL ASSEMBLY, Starboard
(BLACK) -
12187-821873A2 BOTTOM COWL ASSEMBLY, Starboard
(GRAY)BOTTOM COWL ASSEMBLY, Starboard
(GRAY) -
12187-821873A3 BOTTOM COWL ASSEMBLY, Starboard
(TRACKER-GRAPHITE GRAY)BOTTOM COWL ASSEMBLY, Starboard
(TRACKER-GRAPHITE GRAY) -
225-822556003 GROMMETGROMMET
-
38M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
48238052 SEAL, Lower CowlSEAL, Lower Cowl
-
5100-8M0113919 BOTTOM COWL ASSEMBLY, Port
(BLACK)BOTTOM COWL ASSEMBLY, Port
(BLACK) -
52188-821874A2 BOTTOM COWL ASSEMBLY, Port
(GRAY)BOTTOM COWL ASSEMBLY, Port
(GRAY) -
52188-821874A3 BOTTOM COWL ASSEMBLY, Port
(TRACKER-GRAPHITE GRAY)BOTTOM COWL ASSEMBLY, Port
(TRACKER-GRAPHITE GRAY) -
625-822555001 GROMMETGROMMET
-
78M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
88238052 SEAL, Lower CowlSEAL, Lower Cowl
-
987-8M0042301 SWITCHSWITCH
-
108M0032848 RETAINER (USE WHERE APPLICABLE)RETAINER (USE WHERE APPLICABLE)
-
1122-813613 FITTINGFITTING
-
1232-8M0108349 TUBING, (28.00 Inches Bulk)TUBING, (28.00 Inches Bulk)
-
1321-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
1410-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
158M0041366 HANDLE
(BLACK)HANDLE
(BLACK) -
158M0041366 HANDLE
(GRAY)HANDLE
(GRAY) -
158M0041366 HANDLE
(TRACKER-GRAPHITE GRAY)HANDLE
(TRACKER-GRAPHITE GRAY) -
1623-812707 BUSHINGBUSHING
-
1713-F2047 WASHER, WaveWASHER, Wave
-
188M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1912-4002316 WASHERWASHER
-
2013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2110-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
22822363T1 RETAINERRETAINER
-
2311-401386 NUT, (M6)NUT, (M6)
-
2412-4002316 WASHERWASHER
