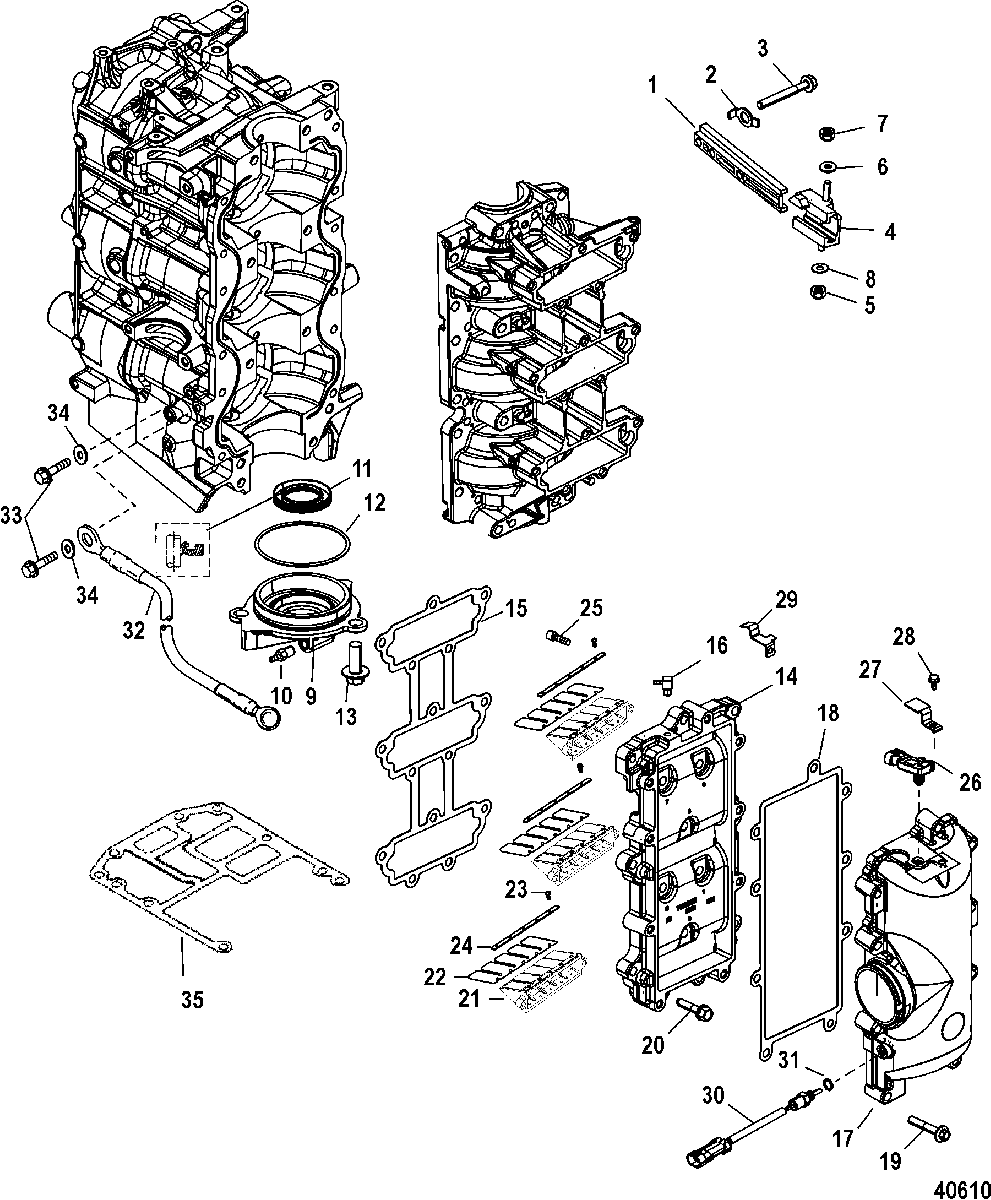

Reed Block для Mercury - 115 Pro XS (3 CYL.)(1.5L) 1B751825 & Up
-
№АртикулНазвание
-
142881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
214-42981 TAB WASHERTAB WASHER
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
4988851 SLIDESLIDE
-
511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
612-35459 WASHERWASHER
-
711-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
91169-858552T2 CAP ASSEMBLY, Lower EndCAP ASSEMBLY, Lower End
-
1021-426585 CHECK VALVECHECK VALVE
-
1126-419533 SEAL, OilSEAL, Oil
-
1225-89224 O-RINGO-RING
-
1310-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
14879839A00 PLATE ASSEMBLY, Reed AdaptorPLATE ASSEMBLY, Reed Adaptor
-
1527-879840 GASKETGASKET
-
1622-768431 FITTINGFITTING
-
17879841A03 COVERCOVER
-
1827-879843 GASKETGASKET
-
1910-82127345 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
2010-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
21840418T04 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
2234-840445A04 REED PETAL ASSEMBLYREED PETAL ASSEMBLY
-
2310-849038 SCREW, (M3 x 5)SCREW, (M3 x 5)
-
24840447 REED PLATEREED PLATE
-
2510-4007420 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
26854445 SENSOR, MAPSENSOR, MAP
-
27884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
2810-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2954-889559 CLAMPCLAMP
-
30885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
3125-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
3284-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3310-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
3412-36001 WASHERWASHER
-
3527-430075 GASKETGASKET
-
3627-880122 GASKET, Component of 879839A00GASKET, Component of 879839A00
-
-27-879855A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
-891767A07 POWERHEAD ASSEMBLY, 90/115 DFIPOWERHEAD ASSEMBLY, 90/115 DFI
