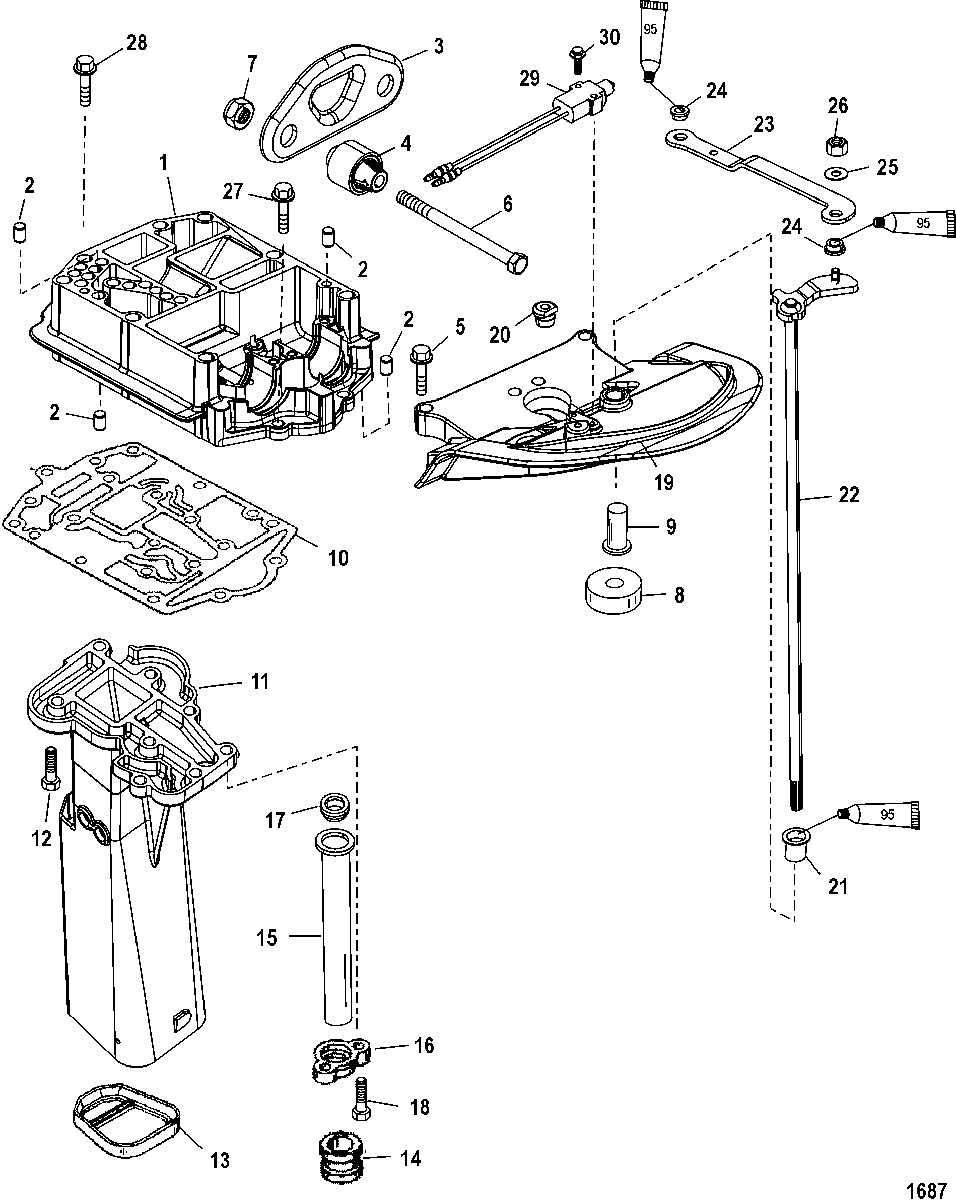

Exhaust Plate для Mercury - 115 Pro XS (3 CYL.)(1.5L) 1B751825 & Up
-
№АртикулНазвание
-
1881912T01 PLATE, ExhaustPLATE, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
3881973 RETAINERRETAINER
-
4881915002 MOUNTMOUNT
-
510-881975 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
610-898487 SCREW, (M12 x 175)SCREW, (M12 x 175)
-
711-896963 NUT, (M12)NUT, (M12)
-
823-813745 SPACERSPACER
-
943585 COUPLINGCOUPLING
-
1027-430086 GASKETGASKET
-
1142966T07 TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water - Long (13.21 Inches)TUBE, Water - Long (13.21 Inches)
-
16824661 CLAMPCLAMP
-
17814080001 SEAL, UpperSEAL, Upper
-
1810-889833045 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
19881918T03 CLAMPCLAMP
-
2025-12602002 GROMMETGROMMET
-
2123-48237 BUSHINGBUSHING
-
22892245T02 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
23892246A01 SHIFT LINKSHIFT LINK
-
2423-892263 BUSHINGBUSHING
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2710-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
2810-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
2987-889514T02 SWITCHSWITCH
-
3010-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
Все узлы модели:
- Accessories
- Air Compressor
- Air Hoses
- Bleed System
- Bottom Cowl
- Coastal Flush Kit, 858566A02
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Crankcase
- Driveshaft Housing
- Electrical Components
- Electrical Components, PCM Mounting, 2B092562 and Below
- Electrical Components, PCM Mounting, 2B092563 and Above
- Engine Overhaul Gasket Set Components
- • Exhaust Plate
- Flywheel and Alternator
- Fuel Pump
- Fuel Rail
- Fuel System
- Gear Housing, Driveshaft - 2.07:1 Gear Ratio
- Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio
- Oil Tank
- Oiling System
- Pitot Sensor Kit, 881879A22
- Poppet/Thermostat Mounting
- Power Trim Assembly - Components, 2B092563 and Above
- Power Trim Assembly, 2B092563 and Above
- Power Trim Components, 2B092562 and Below
- Reed Block
- Service/Support Material
- Starter Motor
- Steering Handle Kit Components, 896648A09
- Steering Handle Kit, 896648A09
- Swivel Bracket and Steering Arm
- Throttle Body
- Throttle Lever and Linkage
- Tools
- Top Cowl
- Transom Bracket
- Vapor Separator
- Vapor Separator/Fuel Rail Mounting
- Water Hoses
