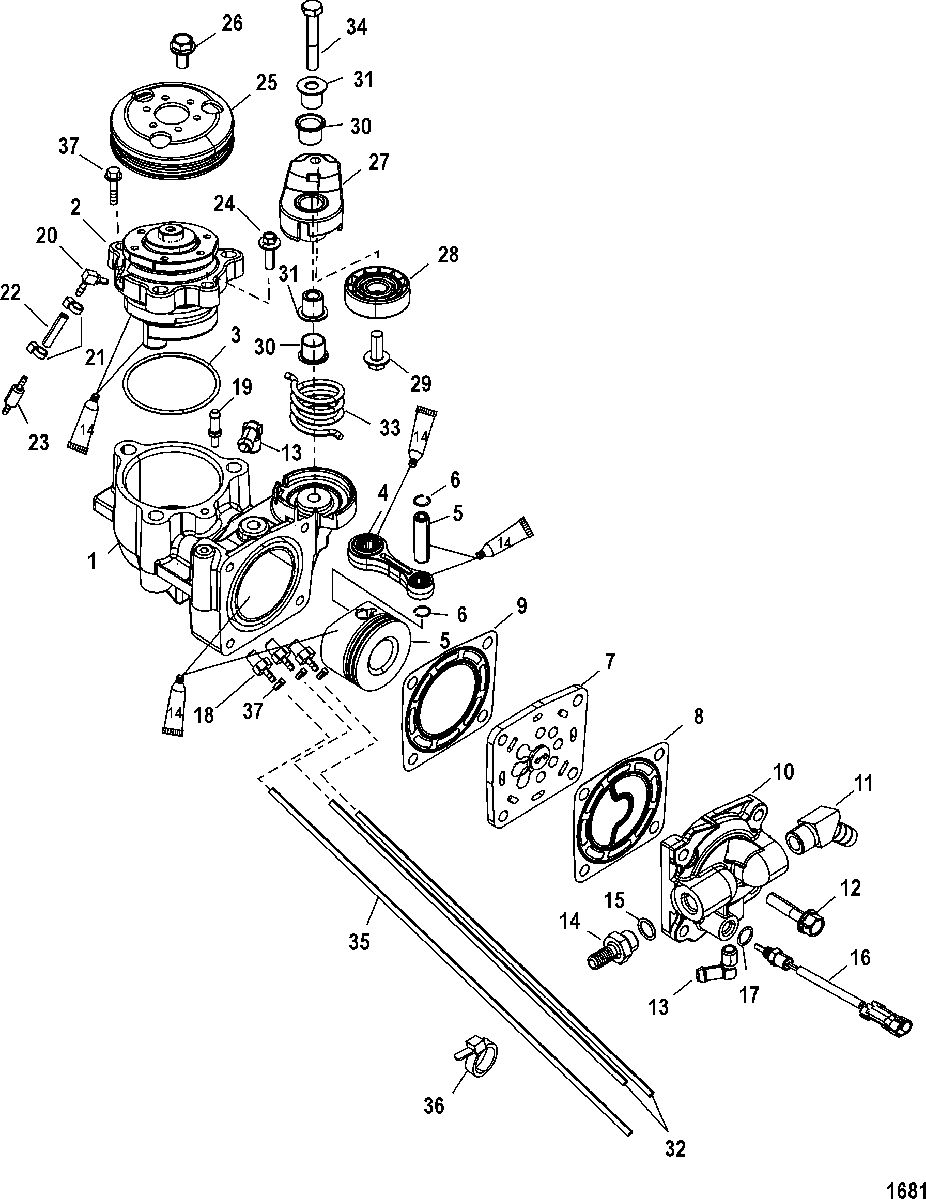

Air Compressor для Mercury - 115 Pro XS (3 CYL.)(1.5L) 1B751825 & Up

  • №
    Артикул
    Название
  • 1
    8M0050654 COMPRESSOR ASSEMBLY, Air
    COMPRESSOR ASSEMBLY, Air
  • 2
    8M0114192 END CAP
    END CAP
  • 3
    25-86391 O-RING
    O-RING
  • 4
    657-853658T02 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Piston Assembly-With Rings
    NOT SOLD SEPARATE, Piston Assembly-With Rings
  • 6
    53-854638 LOCK RING
    LOCK RING
  • 7
    853584A10 REED PLATE ASSEMBLY
    REED PLATE ASSEMBLY
  • 8
    27-854442 GASKET
    GASKET
  • 9
    27-854443 GASKET
    GASKET
  • 10
    854334T02 HEAD, Compressor
    HEAD, Compressor
  • 11
    22-38565 FITTING, (.375-18)
    FITTING, (.375-18)
  • 12
    10-82446035 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 13
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 14
    22-856744 FITTING
    FITTING
  • 15
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 16
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 17
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 18
    21-888421 CHECK VALVE
    CHECK VALVE
  • 19
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 20
    22-15133 FITTING
    FITTING
  • 21
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 22
    32-88306955 HOSE, (.125 x 25.00 Inches)
    HOSE, (.125 x 25.00 Inches)
  • 23
    21-889851 CONNECTOR
    CONNECTOR
  • 24
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 25
    853944T03 PULLEY
    PULLEY
  • 26
    10-85593912 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 27
    8M0047394 TENSIONER ARM
    TENSIONER ARM
  • 28
    8547971 PULLEY
    PULLEY
  • 29
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 30
    30-8570111 BEARING, Flanged
    BEARING, Flanged
  • 31
    23-856549001 BUSHING
    BUSHING
  • 32
    32-88104441 TUBING, (18.00 Inches Bulk), Cut to 8 Inches
    TUBING, (18.00 Inches Bulk), Cut to 8 Inches
  • 33
    24-8547953 SPRING
    SPRING
  • 34
    10-4000382 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 35
    32-88104441 TUBING, (18.00 Inches Bulk), Cut to 13 Inches
    TUBING, (18.00 Inches Bulk), Cut to 13 Inches
  • 36
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 37
    10-82446090 SCREW, (M8 x 90)
    SCREW, (M8 x 90)
