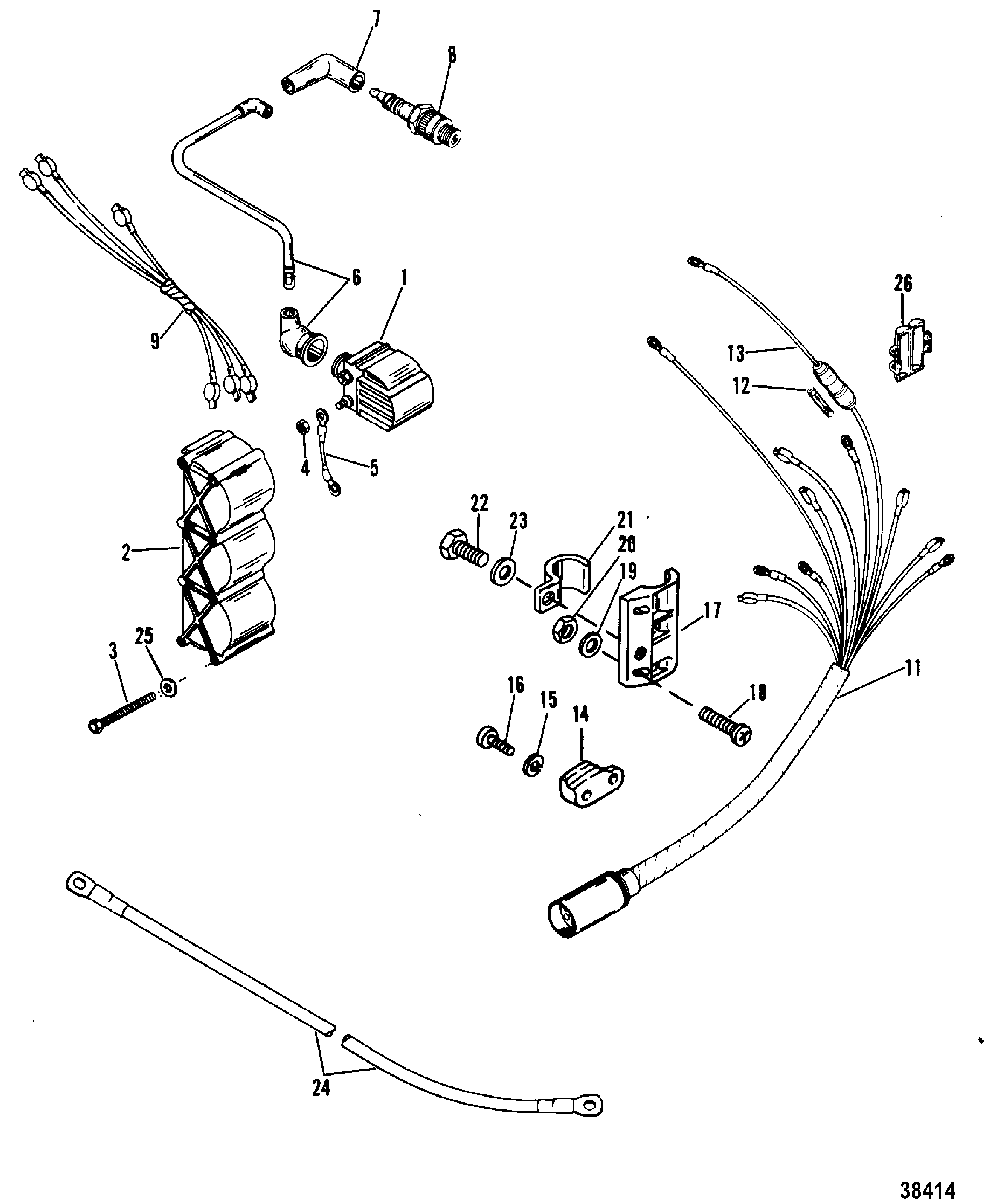

WIRING HARNESS AND IGNITION COIL для Mercury - 115 (6 CYL.) 6436123 & Up
-
№АртикулНазвание
-
1339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
243542 COVER, IGNITION COILCOVER, IGNITION COIL
-
310-88856 SCREW, (.190-32 x 2.00), IGNITION COIL COVERSCREW, (.190-32 x 2.00), IGNITION COIL COVER
-
411-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
584-88807A12 CABLE ASSEMBLY, IGNITION COIL (BLACK - 10-1/2")CABLE ASSEMBLY, IGNITION COIL (BLACK - 10-1/2")
-
584-88807A13 CABLE ASSEMBLY, IGNITION COIL (BLACK - 5-1/4")CABLE ASSEMBLY, IGNITION COIL (BLACK - 5-1/4")
-
684-813715A10 CABLE ASSEMBLY, HIGH TENSIONCABLE ASSEMBLY, HIGH TENSION
-
785-63709A1 BOOT/TERMINAL KIT, SPARK PLUG ENDBOOT/TERMINAL KIT, SPARK PLUG END
-
833-97180Q SPARK PLUG (NGK-BUHW)SPARK PLUG (NGK-BUHW)
-
833-14103550 SPARK PLUG, (NGK-BUZHW) (CANADA/BELGIUM)SPARK PLUG, (NGK-BUZHW) (CANADA/BELGIUM)
-
984-85537A2 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 AND 6)HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 AND 6)
-
984-85537A1 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 AND 5)HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 AND 5)
-
1184-96188A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1384-95084A2 CABLE ASSEMBLY, FUSE HOLDERCABLE ASSEMBLY, FUSE HOLDER
-
1454-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1510-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMPSCREW, (.250-20 x .750), WIRING HARNESS CLAMP
-
1613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1789047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1810-24637 SCREW, (#10-32 x .875), WIRING HARNESS BRACKETSCREW, (#10-32 x .875), WIRING HARNESS BRACKET
-
1912-38833 WASHERWASHER
-
2011-20110 NUT, (#10-32)NUT, (#10-32)
-
2188751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2210-28636 SCREW, (.250-20 x .750), WIRING HARNESS CLAMPSCREW, (.250-20 x .750), WIRING HARNESS CLAMP
-
2312-20533 WASHERWASHER
-
2484-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2484-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2512-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
26134731 HOLDER, FuseHOLDER, Fuse
