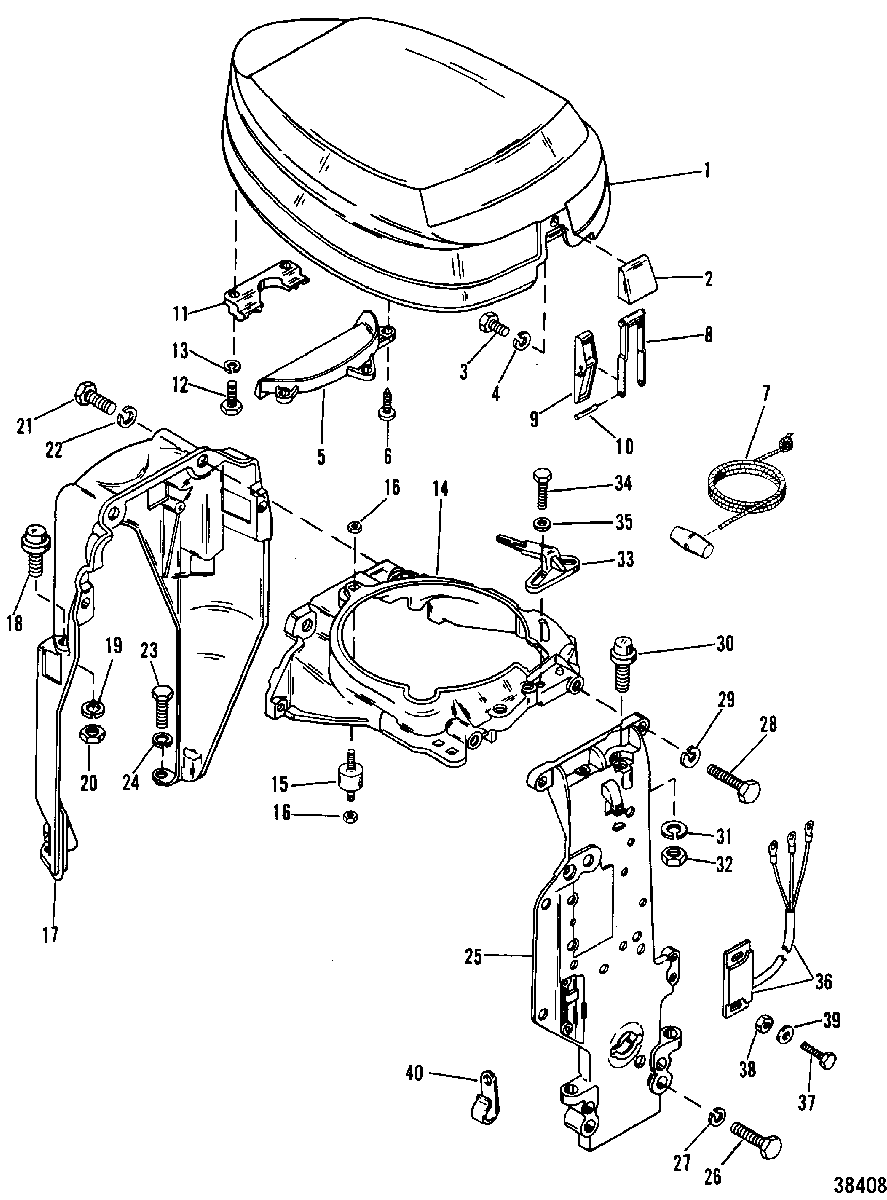

TOP COWL AND SUPPORT BRACKETS для Mercury - 115 (6 CYL.) 6436123 & Up
-
№АртикулНазвание
-
12114-7934T TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
12162-6392T6 TOP COWL ASSEMBLY
(GRAY)TOP COWL ASSEMBLY
(GRAY) -
293122A1 RETAINER ASSEMBLY
(BLACK)RETAINER ASSEMBLY
(BLACK) -
276440 RETAINER ASSEMBLY
(GRAY)RETAINER ASSEMBLY
(GRAY) -
310-53167T SCREW, (.312-18 x .880)
(BLACK)SCREW, (.312-18 x .880)
(BLACK) -
310-25299 SCREW, (.312-18 x .75)
(GRAY)SCREW, (.312-18 x .75)
(GRAY) -
413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
576370 SHIELD, REAR
(BLACK)SHIELD, REAR
(BLACK) -
576433 SHIELD, REAR
(GRAY)SHIELD, REAR
(GRAY) -
610-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO TOP COWLSCREW, (#10-16 x .625) Stainless Steel, SHIELD TO TOP COWL
-
747341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER (FOR MANUAL STARTING ONLY)ROPE AND HANDLE KIT, Manual/Emergency Start, STARTER (FOR MANUAL STARTING ONLY)
-
852739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
994918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1017-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1155455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1210-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWLSCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1479897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
1590435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
1546096 MOUNT, RUBBER - TOP COWL FRAME
(HEAVY DUTY)MOUNT, RUBBER - TOP COWL FRAME
(HEAVY DUTY) -
1611-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
1786472 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
1831014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1913-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
2011-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
2110-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAMESCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
-
2213-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2310-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWLSCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWL
-
2413-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2542706A1 BRACKET ASSEMBLY, TOP COWL - FRONTBRACKET ASSEMBLY, TOP COWL - FRONT
-
2610-60411 SCREW, (1.25), FRONT BRACKET TO BOTTOM COWLSCREW, (1.25), FRONT BRACKET TO BOTTOM COWL
-
2713-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2810-60411 SCREW, (1.25), FRONT BRACKET TO TOP COWL FRAMESCREW, (1.25), FRONT BRACKET TO TOP COWL FRAME
-
2913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3037640 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
3113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3211-28770 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
3387991 POINTER, TIMINGPOINTER, TIMING
-
3410-28636 SCREW, (.250-20 x .750), TIMING POINTERSCREW, (.250-20 x .750), TIMING POINTER
-
3512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3687076A4 IDLE SPEED CONTROL ASSEMBLY
(115)IDLE SPEED CONTROL ASSEMBLY
(115) -
3710-24637 SCREW, (#10-32 x .875), IDLE SPEED CONTROL ATTACHING
(115)SCREW, (#10-32 x .875), IDLE SPEED CONTROL ATTACHING
(115) -
3811-20110 NUT, (#10-32)
(115)NUT, (#10-32)
(115) -
3912-38833 WASHER
(115)WASHER
(115) -
4054-47483 J CLIP, FRONT COWL SUPPORTJ CLIP, FRONT COWL SUPPORT
