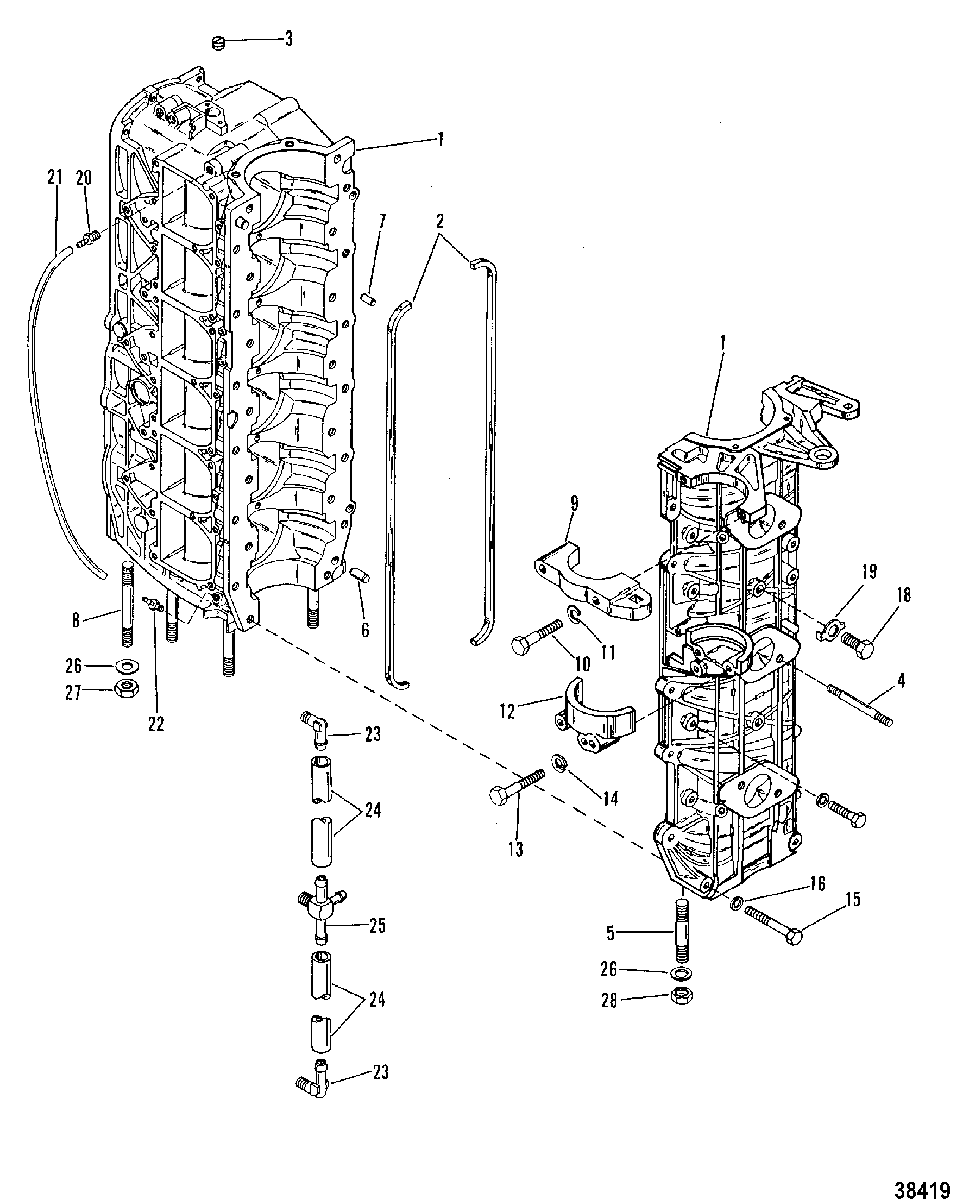

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 115 (6 CYL.) 6436123 & Up

  • №
    Артикул
    Название
  • 1
    852-8311A4 CYLINDER BLOCK ASSEMBLY
    (90)
    CYLINDER BLOCK ASSEMBLY
    (90)
  • 1
    852-8310A4 CYLINDER BLOCK ASSEMBLY
    (115)
    CYLINDER BLOCK ASSEMBLY
    (115)
  • 2
    27-53862 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
  • 4
    16-64936 STUD, CARBURETOR (1-1/4")
    STUD, CARBURETOR (1-1/4")
  • 5
    16-64281 STUD, (.375-16/.375-24 x 1.880)
    STUD, (.375-16/.375-24 x 1.880)
  • 6
    17-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
    PIN, Dowel, CRANKCASE TO CYLINDER BLOCK
  • 7
    17-63779 PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
    PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
  • 8
    16-64282 STUD, (4 In.), CYLINDER BLOCK TO PLATE (4")
    STUD, (4 In.), CYLINDER BLOCK TO PLATE (4")
  • 9
    86473 COVER, STARTER MOTOR - TOP
    COVER, STARTER MOTOR - TOP
  • 10
    10-73279 SCREW, (.312-18 x 1.880), TOP COVER
    SCREW, (.312-18 x 1.880), TOP COVER
  • 11
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 12
    76867 COVER, BOTTOM
    COVER, BOTTOM
  • 13
    10-73279 SCREW, (.312-18 x 1.880), BOTTOM COVER
    SCREW, (.312-18 x 1.880), BOTTOM COVER
  • 14
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 15
    10-57841 SCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCK
  • 15
    10-73657 SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK
  • 15
    10-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
  • 16
    12-26020 WASHER
    WASHER
  • 18
    10-20359 SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
    SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
  • 19
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 20
    21-42866 CHECK VALVE, BLEED HOSE - UPPER
    CHECK VALVE, BLEED HOSE - UPPER
  • 21
    32-9938779 HOSE, BLEED (22")
    HOSE, BLEED (22")
  • 22
    21-428671 CHECK VALVE, BLEED HOSE - LOWER
    CHECK VALVE, BLEED HOSE - LOWER
  • 23
    22-996642 ELBOW, BALANCE HOSE
    ELBOW, BALANCE HOSE
  • 24
    32-8M0108355 LINE, (57.00 Inches Bulk) (6-1/4")
    LINE, (57.00 Inches Bulk) (6-1/4")
  • 25
    22-97231 TEE, BLEED HOSE
    TEE, BLEED HOSE
  • 26
    12-20553 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 27
    11-82671013 NUT, (.375-24), POWERHEAD STUDS
    NUT, (.375-24), POWERHEAD STUDS
  • 28
    11-69254 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • -
    97472A32 POWERHEAD ASSEMBLY
    (90)
    POWERHEAD ASSEMBLY
    (90)
  • -
    42110A83 POWERHEAD ASSEMBLY
    (115)
    POWERHEAD ASSEMBLY
    (115)
  • -
    27-85653A87 GASKET SET
    GASKET SET
