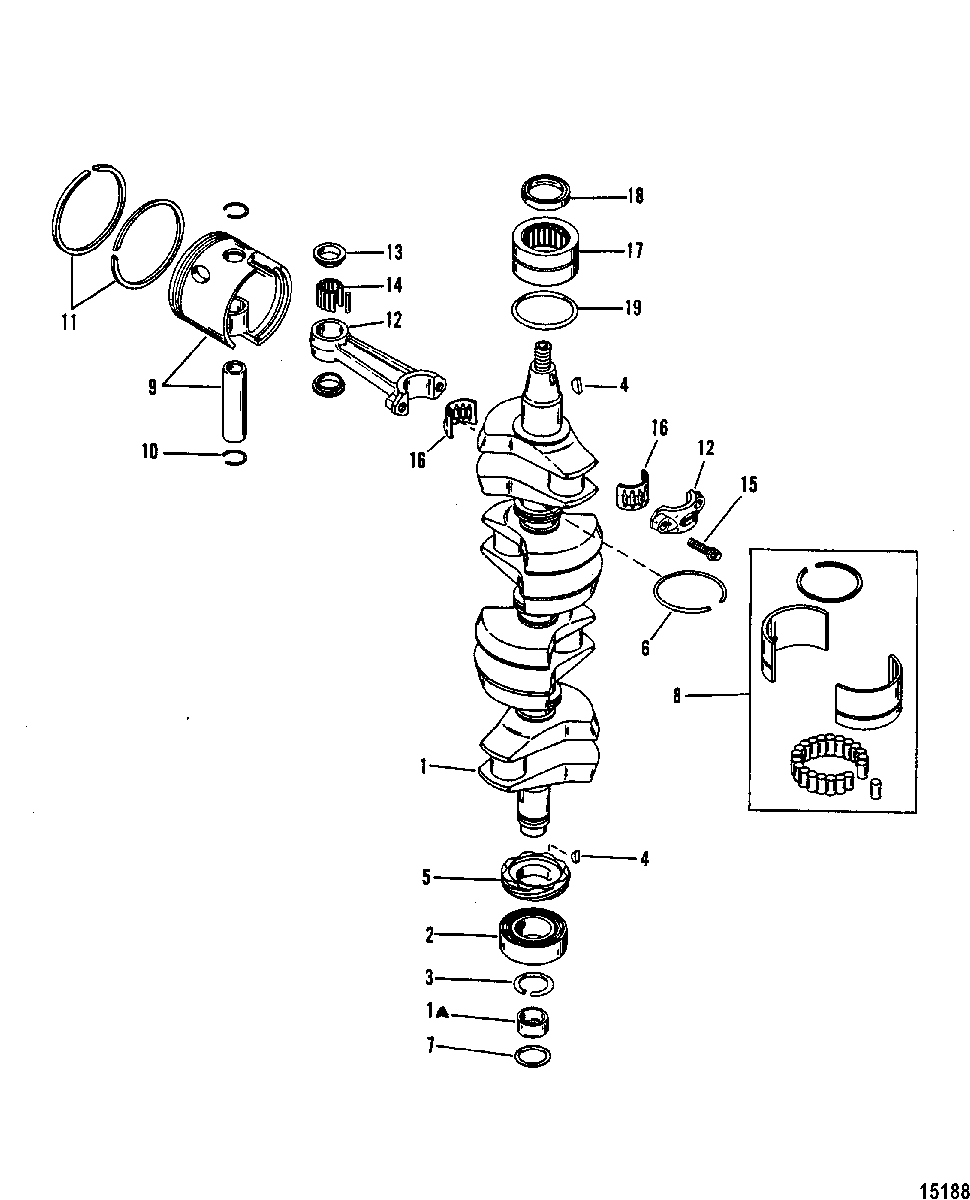

Crankshaft, Pistons And Connecting Rods (#638-8532--1) для Mercury - 115 (4 CYL.) 9559771 THRU 9793576

№

Артикул

Название
1

473-9193T3 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

295 930 ₽
1A

786611 WEAR SLEEVE

WEAR SLEEVE

400 ₽
2

30-43011T BEARING, Ball, Lower

BEARING, Ball, Lower

5 400 ₽
3

53-93412 RING, Retaining, Old Design

RING, Retaining, Old Design

640 ₽
4

28-91800 KEY, Woodruff

KEY, Woodruff

340 ₽
5

43-43019A1 GEAR ASSEMBLY

GEAR ASSEMBLY

5 630 ₽
6

39-42079A4 RING ASSEMBLY

RING ASSEMBLY

4 310 ₽
7

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)

200 ₽
8

42943A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 140 ₽
9

777-9009T13 PISTON ASSEMBLY
(Standard)

PISTON ASSEMBLY
(Standard)

18 570 ₽
9

777-9009A6 PISTON ASSEMBLY
(.015 0versize)

PISTON ASSEMBLY
(.015 0versize)

17 770 ₽
9

777-9009A7 PISTON ASSEMBLY
(.030 Oversize)

PISTON ASSEMBLY
(.030 Oversize)

19 150 ₽
10

53-857196 RING, Lock

RING, Lock

100 ₽
11

39-96170A12 RING SET, Piston
(Standard)

RING SET, Piston
(Standard)

23 530 ₽
11

39-96170A3 RING SET, Piston
(.015 Oversize)

RING SET, Piston
(.015 Oversize)

8 720 ₽
11

39-96170A4 RING SET, Piston
(.030 Oversize)

RING SET, Piston
(.030 Oversize)

15 500 ₽
12

638-9002A6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

35 520 ₽
13

12-8M0032839 WASHER

WASHER

960 ₽
14

29-88258001 NEEDLE, Roller Bearing

NEEDLE, Roller Bearing

70 ₽
15

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

650 ₽
16

31-844338A01 BEARING/CAGE KIT

BEARING/CAGE KIT

9 160 ₽
17

31-43013T3 BEARING ASSEMBLY, Roller, Upper

BEARING ASSEMBLY, Roller, Upper

8 680 ₽
18

26-43993 SEAL, Oil

SEAL, Oil

920 ₽
19

25-823683 O-RING

O-RING

220 ₽
-

17791T92 POWERHEAD ASSEMBLY, Complete
(IncludesCylinder Block And Crankcase, Pistons, Connecting Rods And Bearings, ETC.

POWERHEAD ASSEMBLY, Complete
(IncludesCylinder Block And Crankcase, Pistons, Connecting Rods And Bearings, ETC.

815 800 ₽
