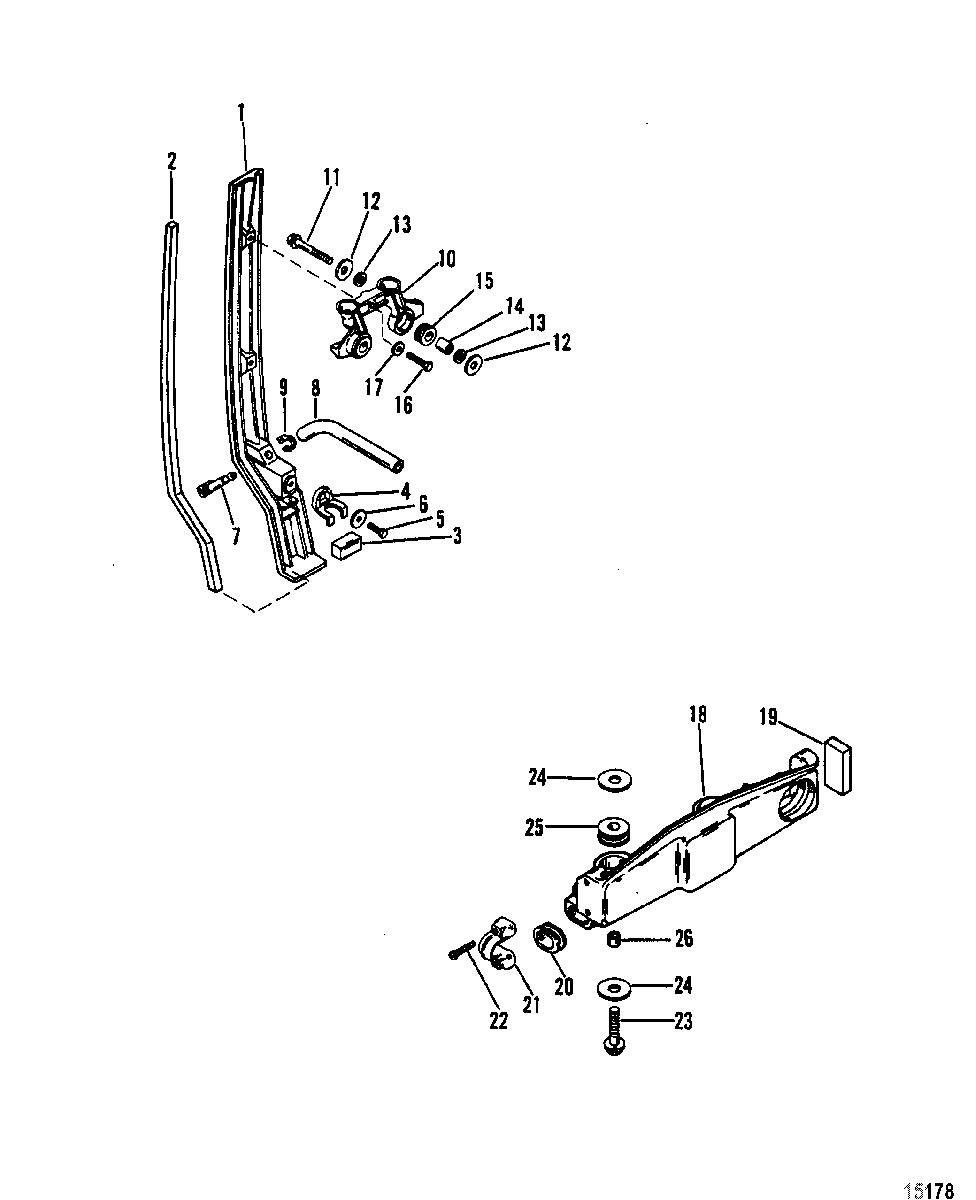

Cowl Mounting Brackets для Mercury - 115 (4 CYL.) 9559771 THRU 9793576

  • №
    Артикул
    Название
  • 1
    11189A1 BRACKET ASSEMBLY, Black
    BRACKET ASSEMBLY, Black
  • 1
    11189A2 BRACKET ASSEMBLY, Gray
    BRACKET ASSEMBLY, Gray
  • 1
    11189A2 BRACKET ASSEMBLY, Oyster
    BRACKET ASSEMBLY, Oyster
  • 2
    183061 SEAL, Bracket, Black, Gray
    SEAL, Bracket, Black, Gray
  • 2
    193861 SEAL, Bracket, Oyster
    SEAL, Bracket, Oyster
  • 3
    42935 SEAL
    SEAL
  • 4
    11244 RESTRAINT
    RESTRAINT
  • 5
    10-400015 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 6
    12-42118 WASHER
    WASHER
  • 7
    42907 CONNECTOR, Black, Gray
    CONNECTOR, Black, Gray
  • 7
    429071 CONNECTOR, Oyster
    CONNECTOR, Oyster
  • 8
    32-8M0108349 TUBING
    TUBING
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    932642 HOUSING
    HOUSING
  • 11
    10-8M0103817 SCREW
    SCREW
  • 12
    12-814803 WASHER
    (Cylinder Block Cover Casting Number 1035-9195C1)
    WASHER
    (Cylinder Block Cover Casting Number 1035-9195C1)
  • 13
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    (Cylinder Block Cover Casting Number 1035-9195C1)
    WASHER, (.344 x .688 x .065) Stainless Steel
    (Cylinder Block Cover Casting Number 1035-9195C1)
  • 14
    23-14395 BUSHING
    (Cylinder Block Cover Casting Number 1035-9195C1)
    BUSHING
    (Cylinder Block Cover Casting Number 1035-9195C1)
  • 12
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    (Cylinder Block Cover Casting Number 1035-9195C2)
    WASHER, (.344 x 1.00 x .063) Stainless Steel
    (Cylinder Block Cover Casting Number 1035-9195C2)
  • 14
    23-143951 BUSHING
    (Cylinder Block Cover Casting Number 1035-9195C2)
    BUSHING
    (Cylinder Block Cover Casting Number 1035-9195C2)
  • 15
    25-88033 GROMMET
    (Cylinder Block Cover Casting Number 1035-9195C2)
    GROMMET
    (Cylinder Block Cover Casting Number 1035-9195C2)
  • 16
    10-400038 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 17
    12-42118 WASHER
    WASHER
  • 18
    42952T BRACKET, Front, Black
    BRACKET, Front, Black
  • 18
    42952T6 BRACKET, Front, Gray
    BRACKET, Front, Gray
  • 18
    42952T6 BRACKET, Front, Oyster
    BRACKET, Front, Oyster
  • 19
    67260 SEAL
    SEAL
  • 20
    25-67272 GROMMET
    GROMMET
  • 21
    99447 RETAINER
    RETAINER
  • 22
    10-69011 SCREW, (#10-32 x 1.00)
    SCREW, (#10-32 x 1.00)
  • 23
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 24
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 25
    25-88033 GROMMET
    GROMMET
  • 26
    23-143951 BUSHING
    BUSHING
