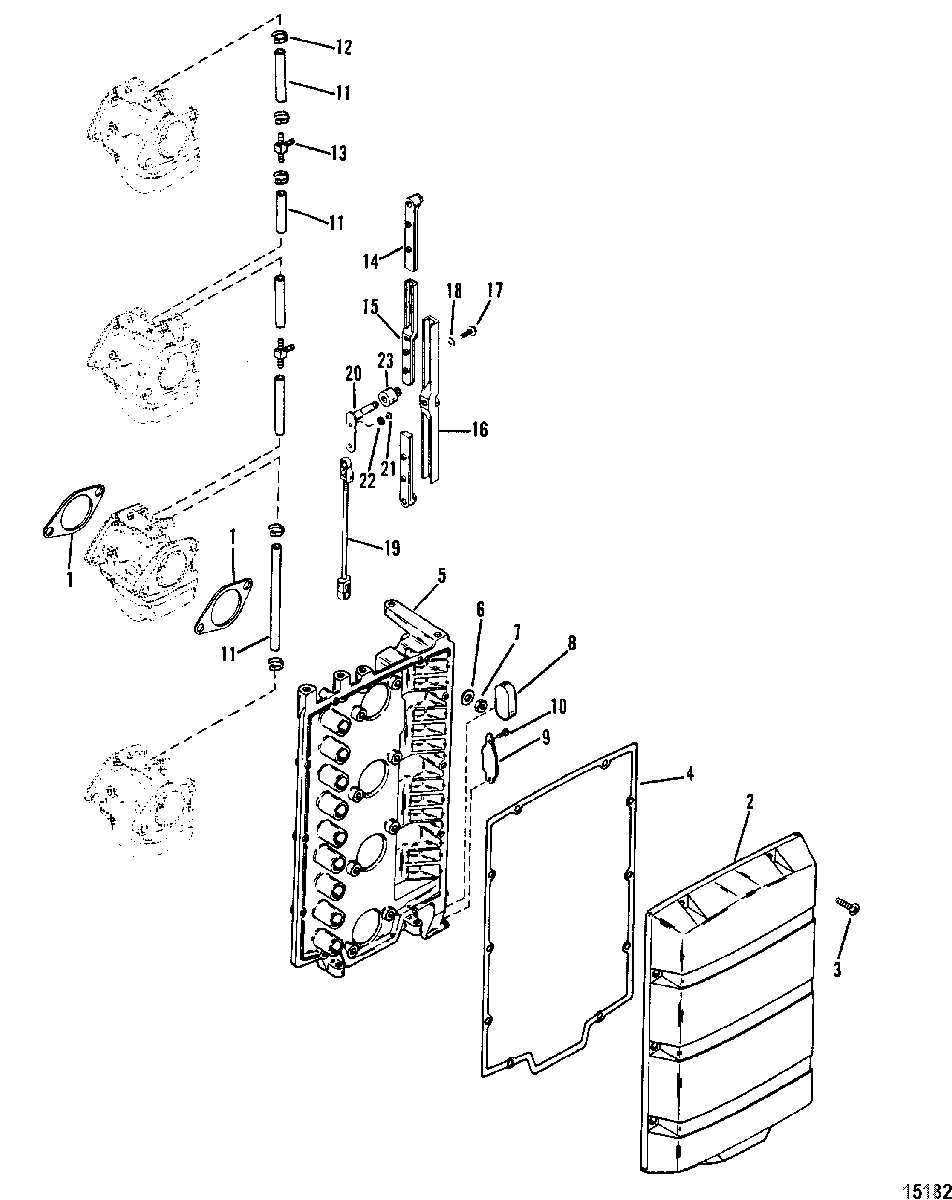

Attenuator Plate для Mercury - 115 (4 CYL.) 9559771 THRU 9793576

  • №
    Артикул
    Название
  • 1
    27-151724 GASKET
    GASKET
  • 2
    44342A1 COVER
    COVER
  • 3
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 4
    NLA No Longer Available, Gasket, Old Design
    No Longer Available, Gasket, Old Design
  • 5
    44340A2 PLATE, Attenuator
    PLATE, Attenuator
  • 6
    12-4002217 WASHER
    WASHER
  • 7
    11-826365 NUT
    NUT
  • 8
    39519 CUP
    CUP
  • 9
    98889 LATCH
    LATCH
  • 10
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 11
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    HOSE, (.187) (26.00 Inches Bulk)
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    22-17762 REDUCING TEE
    REDUCING TEE
  • 14
    98886T01 LINK
    LINK
  • 15
    44336 LINK, Throttle, Upper
    LINK, Throttle, Upper
  • 16
    98887T LINK, Throttle, Main
    LINK, Throttle, Main
  • 17
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 18
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 19
    193859 LINK ROD
    LINK ROD
  • 20
    11399A1 ARM ASSEMBLY
    ARM ASSEMBLY
  • 21
    10-40056103 SCREW, (M5 x 6)
    SCREW, (M5 x 6)
  • 22
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 23
    67748 ROLLER
    ROLLER
  • -
    27-13461A99 GASKET SET
    GASKET SET
