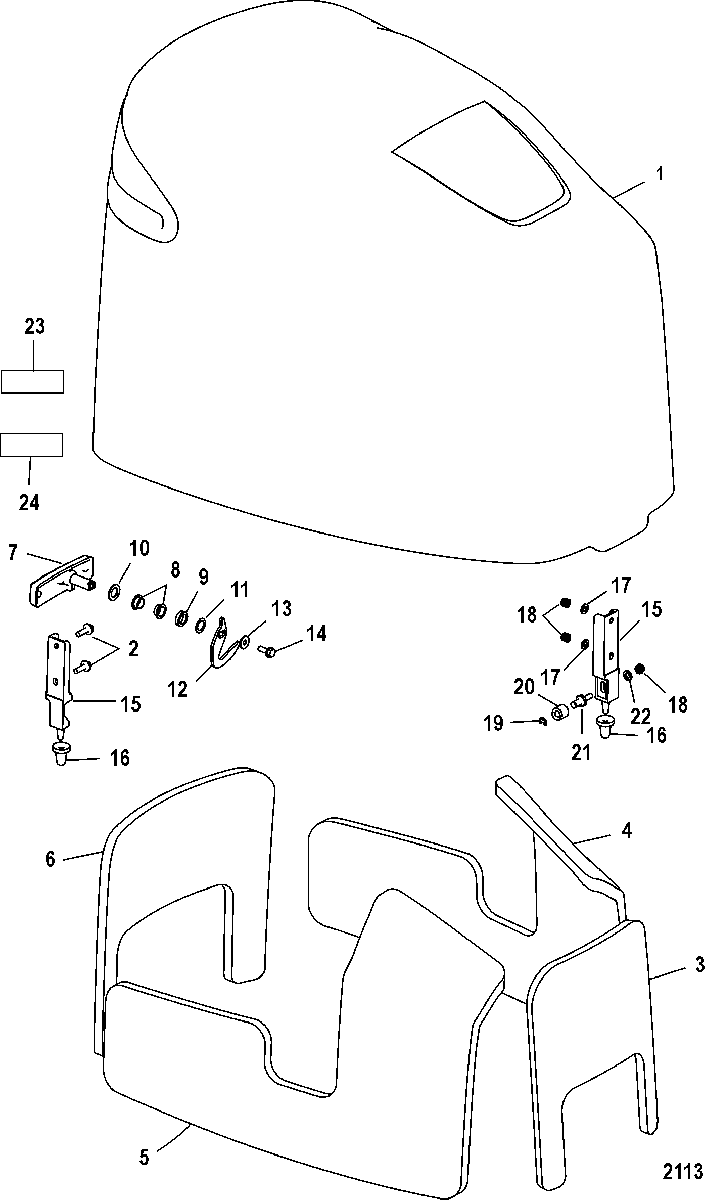

Top Cowl для Mercury - 110 Jet (2.5L) 1B690542 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0063397 TOP COWL ASSEMBLY, Black, Includes all Decals except Horsepower
    TOP COWL ASSEMBLY, Black, Includes all Decals except Horsepower
  • 1
    100-883058T02 TOP COWL ASSEMBLY, Silver
    TOP COWL ASSEMBLY, Silver
  • 1
    100-8M0075376 TOP COWL ASSEMBLY, Mercury, Without decals
    TOP COWL ASSEMBLY, Mercury, Without decals
  • 1
    8M0075378 TOP COWL ASSEMBLY, Mariner, Without decals
    TOP COWL ASSEMBLY, Mariner, Without decals
  • -
    888167 BLOCK, Filler
    BLOCK, Filler
  • 2
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 3
    883019A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 4
    NSS NOT SOLD SEPARATE, Sound Blanket-Port
    NOT SOLD SEPARATE, Sound Blanket-Port
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Starboard
    NOT SOLD SEPARATE, Sound Blanket-Starboard
  • 6
    NSS NOT SOLD SEPARATE, Sound Blanket-Rear
    NOT SOLD SEPARATE, Sound Blanket-Rear
  • 7
    831207A16 HANDLE KIT, Cowl Latch
    HANDLE KIT, Cowl Latch
  • 8
    23-812707 BUSHING
    BUSHING
  • 9
    23-8312141 SPACER
    SPACER
  • 10
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    WASHER, (.520 x .850 x .060) Nylon - Black
  • 11
    13-12134 WASHER, Wave
    WASHER, Wave
  • 12
    8M0001081 CAM
    CAM
  • 13
    12-4002316 WASHER
    WASHER
  • 14
    10-8M0009253 SCREW, (M6 x 16), Included with Handle Kit
    SCREW, (M6 x 16), Included with Handle Kit
  • 15
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 16
    815477 BUMPER, Latch
    BUMPER, Latch
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 19
    53-8237951 RING, Retaining
    RING, Retaining
  • 20
    815263 ROLLER
    ROLLER
  • 21
    8155381 PIN, Roll
    PIN, Roll
  • 22
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 23
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • 24
    NSS NOT SOLD SEPARATE, Decal-Break-In
    NOT SOLD SEPARATE, Decal-Break-In
  • -
    37-854292A07 DECAL SET
    Black 135
    DECAL SET
    Black 135
  • -
    37-8M0061182 DECAL, Horsepower (135)
    DECAL, Horsepower (135)
  • -
    37-854294A07 DECAL SET
    Black 150
    DECAL SET
    Black 150
  • -
    37-8M0115001 DECAL, Horsepower (150)
    DECAL, Horsepower (150)
  • -
    37-879756A07 DECAL SET
    Black 175
    DECAL SET
    Black 175
  • -
    37-8M0115001 DECAL, Horsepower (175)
    DECAL, Horsepower (175)
  • -
    37-854295A03 DECAL SET
    Gray 135
    DECAL SET
    Gray 135
  • -
    37-854297A03 DECAL SET
    Gray 150
    DECAL SET
    Gray 150
  • -
    37-879757A03 DECAL SET
    Gray 175
    DECAL SET
    Gray 175
  • -
    37-826331A08 DECAL SET, Jet Drive 110 (2.5L)
    DECAL SET, Jet Drive 110 (2.5L)
