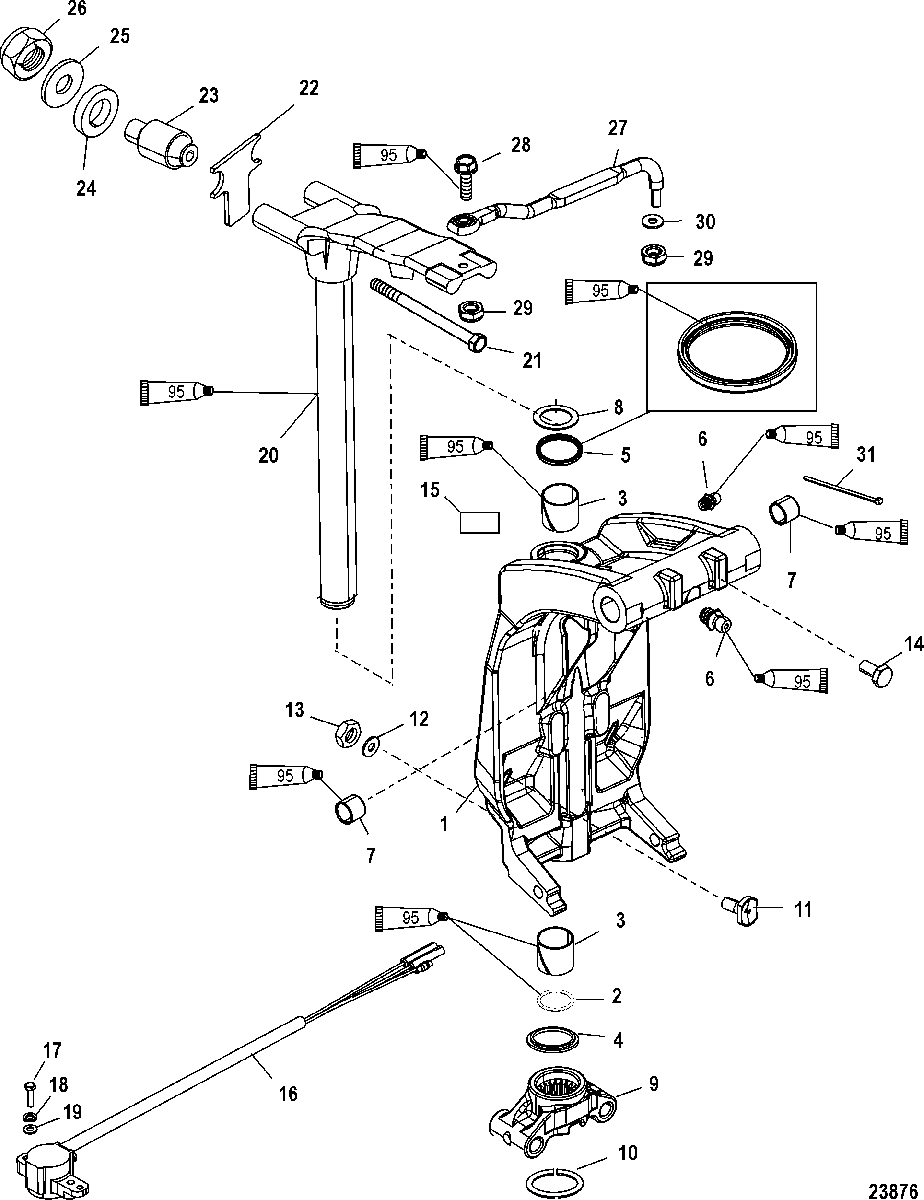

Swivel Bracket and Steering Arm для Mercury - 110 Jet (2.5L) 1B690542 & Up

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    SWIVEL BRACKET ASSEMBLY, Black
  • 2
    25-33504 O-RING
    O-RING
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    23-816039 SPACER
    SPACER
  • 5
    26-87735 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    12-816432 THRUST WASHER
    THRUST WASHER
  • 9
    878182T01 YOKE, Bottom
    YOKE, Bottom
  • 10
    53-67684 RING, Retaining
    RING, Retaining
  • 11
    8M0045383 STRIKER PLATE
    STRIKER PLATE
  • 12
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 15
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 16
    896688001 SENDER ASSEMBLY, Trim, Digital
    SENDER ASSEMBLY, Trim, Digital
  • 16
    8M0098273 SENDER ASSEMBLY, Trim, Analog
    SENDER ASSEMBLY, Trim, Analog
  • 17
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 19
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 20
    17-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
    SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
  • 21
    10-8M0000491 SCREW, (.437-20 x 7.500)
    SCREW, (.437-20 x 7.500)
  • 22
    8M0000516 BUMPER, Top Yoke
    BUMPER, Top Yoke
  • 23
    77326 MOUNT
    MOUNT
  • 24
    12-66921 WASHER
    WASHER
  • 25
    12-78688 WASHER
    WASHER
  • 26
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 27
    92876A12 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 28
    10-849838 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 29
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 29
    11-8M0042636 NUT, (.375-24) Brass
    NUT, (.375-24) Brass
  • 30
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 31
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
