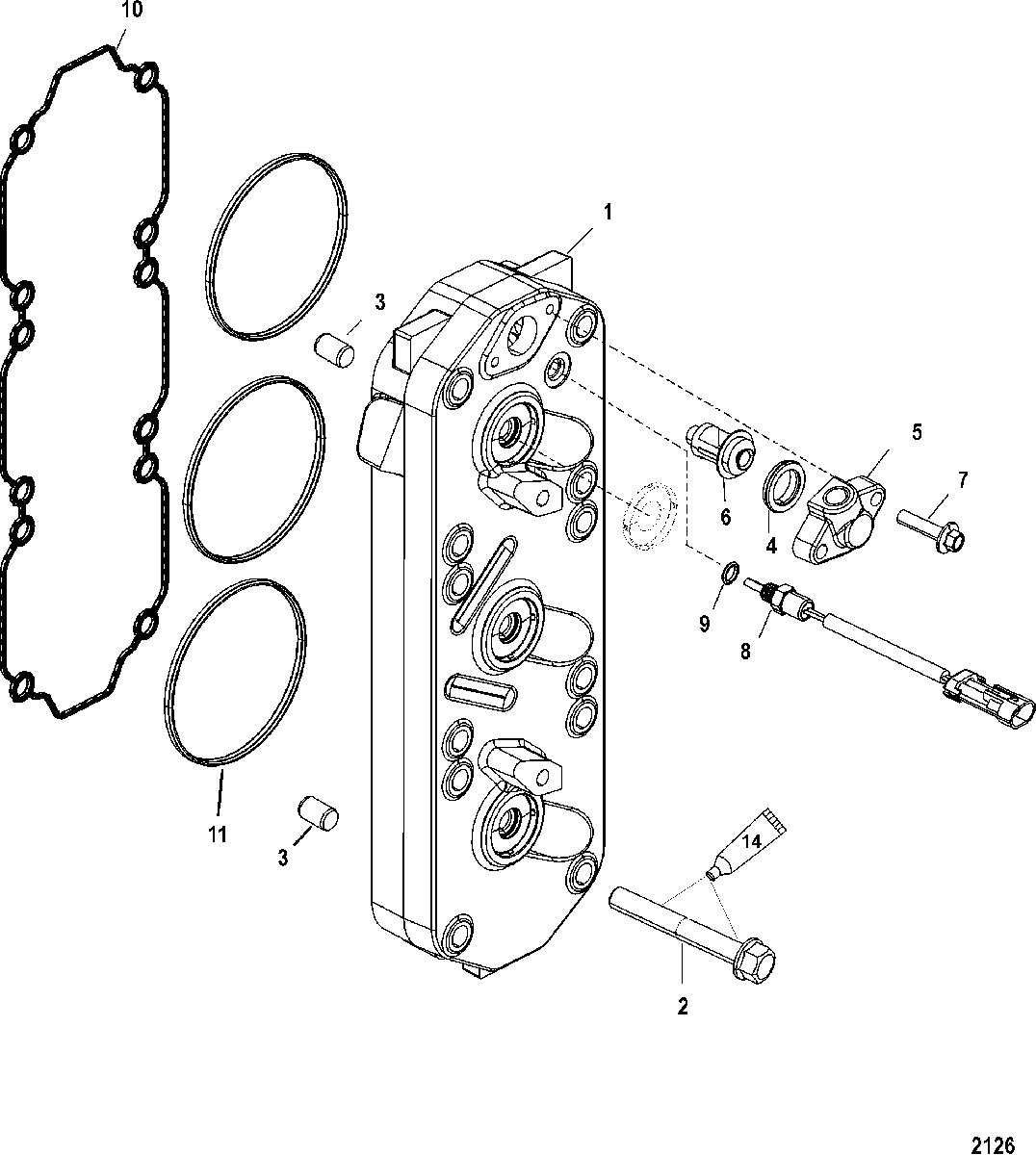

Cylinder Head для Mercury - 110 Jet (2.5L) 1B690542 & Up

  • №
    Артикул
    Название
  • 1
    858405T05 CYLINDER HEAD
    Port - 135
    CYLINDER HEAD
    Port - 135
  • 1
    858405T05 CYLINDER HEAD
    Port - 150/Jet 110
    CYLINDER HEAD
    Port - 150/Jet 110
  • 1
    878109T1 CYLINDER HEAD ASSEMBLY
    Port - 175
    CYLINDER HEAD ASSEMBLY
    Port - 175
  • 1
    858406T05 CYLINDER HEAD
    Starboard - 135
    CYLINDER HEAD
    Starboard - 135
  • 1
    858406T05 CYLINDER HEAD
    Starboard - 150/Jet 110
    CYLINDER HEAD
    Starboard - 150/Jet 110
  • 1
    878110T1 CYLINDER HEAD ASSEMBLY
    Starboard - 175
    CYLINDER HEAD ASSEMBLY
    Starboard - 175
  • 2
    10-8M0125882 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 4
    27-62386001 GASKET
    GASKET
  • 5
    8M0039353 COVER
    COVER
  • 6
    833072003 THERMOSTAT, 62A°C (143A°F)
    THERMOSTAT, 62A°C (143A°F)
  • 7
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 9
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 10
    8584521 SEAL
    SEAL
  • 11
    8597721 SEAL
    SEAL
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    879808T07 POWERHEAD ASSEMBLY
    135/150/Jet 110
    POWERHEAD ASSEMBLY
    135/150/Jet 110
  • -
    879809T07 POWERHEAD ASSEMBLY
    175
    POWERHEAD ASSEMBLY
    175
