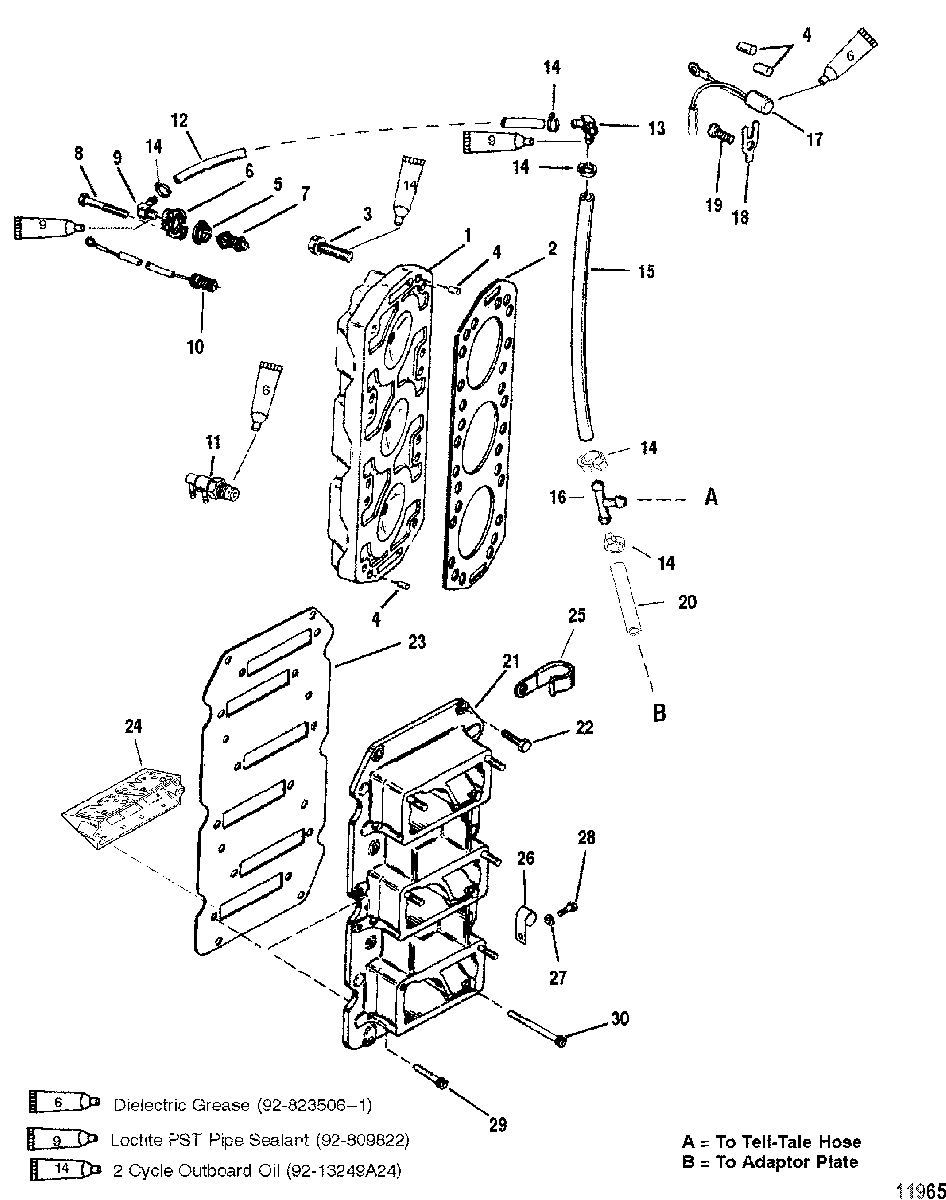

Reed Block And Cylinder Head для Mercury - 105 JET 0G303046 THRU 0G760299
-
№АртикулНазвание
-
118787A18 CYLINDER HEAD
(135/150)CYLINDER HEAD
(135/150) -
227-18785T GASKET
(135/150)GASKET
(135/150) -
1900-8M0143213 CYLINDER HEAD
(XR6/ Magnum III 175)CYLINDER HEAD
(XR6/ Magnum III 175) -
227-822844T05 GASKET
(XR6/ Magnum III 175)GASKET
(XR6/ Magnum III 175) -
118488F2 CYLINDER HEAD ASSEMBLY
(200)CYLINDER HEAD ASSEMBLY
(200) -
227-822844T05 GASKET
(200)GASKET
(200) -
310-98534 SCREW, (.375-16 x 2.30)SCREW, (.375-16 x 2.30)
-
417-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
527-62386001 GASKETGASKET
-
690390A1 COVER KITCOVER KIT
-
775692 THERMOSTATTHERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
922-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1097465 SENDER, Temperature, StarboardSENDER, Temperature, Starboard
-
11814612 VALVE, Thermal AirVALVE, Thermal Air
-
1232-77653101 HOSE, (59.00 Inches Bulk) (Cut to 12.75 Inch Length)HOSE, (59.00 Inches Bulk) (Cut to 12.75 Inch Length)
-
1322-68728 FITTINGFITTING
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1532-77653101 HOSE, (59.00 Inches Bulk) (Cut to 11.50 Inch Length)HOSE, (59.00 Inches Bulk) (Cut to 11.50 Inch Length)
-
1622-815914 T-FITTINGT-FITTING
-
1713536A7 SENSOR ASSEMBLY, Temperature, Port, 2-WireSENSOR ASSEMBLY, Temperature, Port, 2-Wire
-
18137151 RETAINERRETAINER
-
1910-98257 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
2032-77653101 HOSE, (59.00 Inches Bulk) (Cut to 7.50 Inch Length)HOSE, (59.00 Inches Bulk) (Cut to 7.50 Inch Length)
-
2143517A9 PLATE ASSEMBLYPLATE ASSEMBLY
-
2210-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
2327-146972 GASKETGASKET
-
24855952T3 REED BLOCKREED BLOCK
-
2554-55098 J CLIPJ CLIP
-
2654-23567 CLIPCLIP
-
278M0084613 C WASHERC WASHER
-
2810-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2910-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
3010-96529 SCREW, (.250-20 x 2.00)SCREW, (.250-20 x 2.00)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III)POWERHEAD ASSEMBLY
(XR6/Magnum III) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
