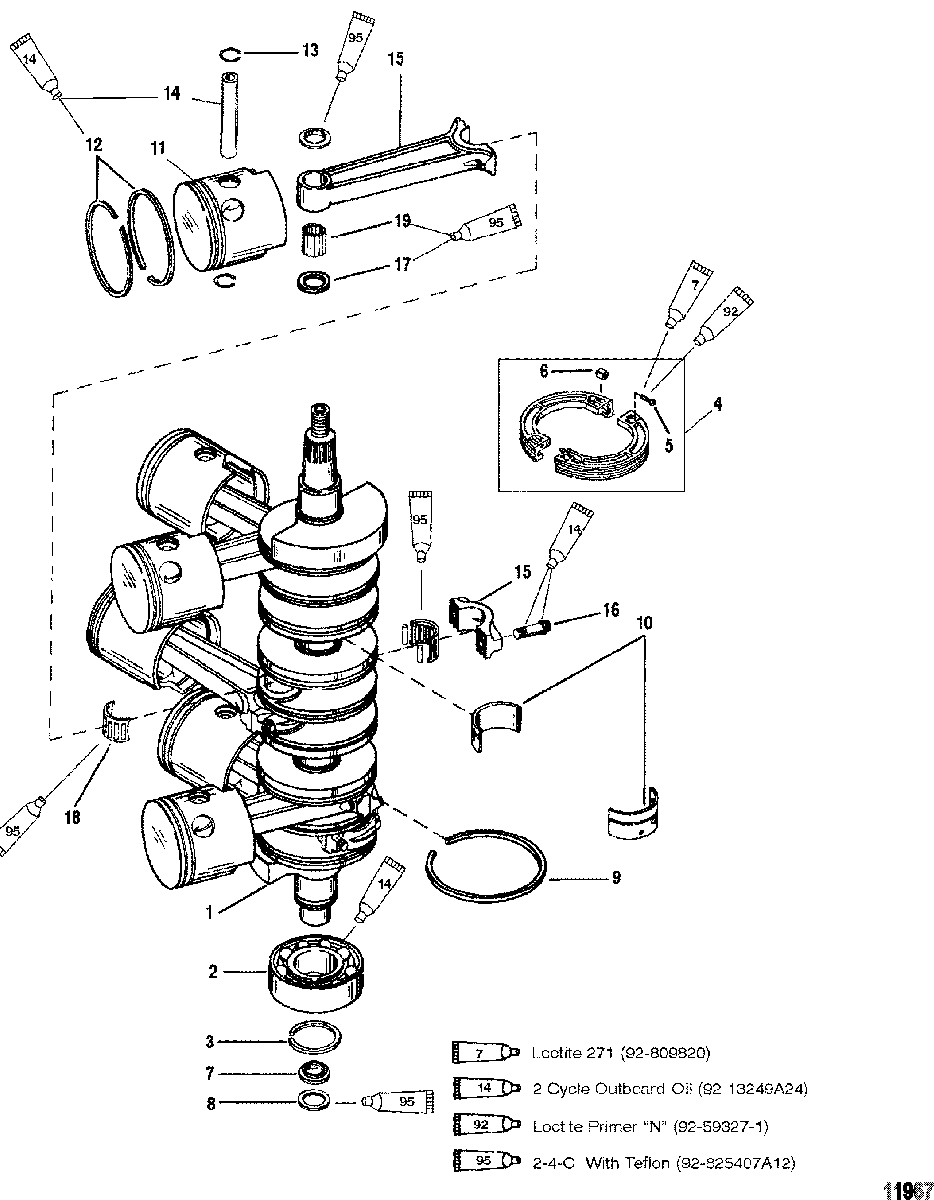

Crankshaft, Pistons And Connecting Rods для Mercury - 105 JET 0G303046 THRU 0G760299
-
№АртикулНазвание
-
1455-9536T4 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball, LowerBEARING, Ball, Lower
-
353-67446 RINGRING
-
443-14513A09 GEAR SEGMENT KIT, Drive
(Brown Gear)GEAR SEGMENT KIT, Drive
(Brown Gear) -
510-854812 SCREW, (#6-32 x .630) Socket Button Head
(Brown Gear)SCREW, (#6-32 x .630) Socket Button Head
(Brown Gear) -
611-854811 NUT, Special (#6-32)
(Brown Gear)NUT, Special (#6-32)
(Brown Gear) -
443-14513A09 GEAR SEGMENT KIT, Drive
(Gray Gear)GEAR SEGMENT KIT, Drive
(Gray Gear) -
510-813073 SCREW, (#6-32 x .620) Socket Head
(Gray Gear)SCREW, (#6-32 x .620) Socket Head
(Gray Gear) -
611-813134 NUT, (#6-32) Special
(Gray Gear)NUT, (#6-32) Special
(Gray Gear) -
754196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
865800 PACKINGPACKING
-
939-67377T RING, Sealing, CrankshaftRING, Sealing, Crankshaft
-
1031-16756A6 BEARING KITBEARING KIT
-
11765-7441T32 PISTON
(Starboard-Standard, 135/150)PISTON
(Starboard-Standard, 135/150) -
11765-7443A11 PISTON
(Starboard-.015 Over Sized, 135/150)PISTON
(Starboard-.015 Over Sized, 135/150) -
11765-7445T11 PISTON
(Starboard-.030 OS., 135/150)PISTON
(Starboard-.030 OS., 135/150) -
11765-7442T32 PISTON
(Port-Standard, 135/150)PISTON
(Port-Standard, 135/150) -
11765-7444A11 PISTON
(Port-.015 Over Sized, 135/150)PISTON
(Port-.015 Over Sized, 135/150) -
11765-7446A11 PISTON
(Port-.030 Over Sized, 135/150)PISTON
(Port-.030 Over Sized, 135/150) -
1239-93481A12 RING SET, Piston - Standard
(Standard, 135/150)RING SET, Piston - Standard
(Standard, 135/150) -
1239-78918A4 RING SET, Piston - .015 Oversize
(.015 Over Sized 135/150)RING SET, Piston - .015 Oversize
(.015 Over Sized 135/150) -
1239-85636A4 RING SET, Piston - .030 Oversize
(.030 Over Sized, 135/150)RING SET, Piston - .030 Oversize
(.030 Over Sized, 135/150) -
1353-857196 RING, Lock
(135/150)RING, Lock
(135/150) -
14NSS NOT SOLD SEPARATE, Pision Pin
(135/150)NOT SOLD SEPARATE, Pision Pin
(135/150) -
11785-9738T9 PISTON ASSEMBLY, Standard
(Starboard Standard) (XR6 Magnum III 175/200)PISTON ASSEMBLY, Standard
(Starboard Standard) (XR6 Magnum III 175/200) -
11785-9738T10 PISTON ASSEMBLY, .015 Oversize
(Starboard-.015 Over Sized) (XR6 Magnum III 175/200)PISTON ASSEMBLY, .015 Oversize
(Starboard-.015 Over Sized) (XR6 Magnum III 175/200) -
11785-9737T9 PISTON ASSEMBLY, Standard
(Port Standard) (XR6 Magnum III 175/200)PISTON ASSEMBLY, Standard
(Port Standard) (XR6 Magnum III 175/200) -
11785-9737A10 PISTON ASSEMBLY, .015 Oversize
(Port-.015 Over Sized) (XR6 Magnum III 175/200PISTON ASSEMBLY, .015 Oversize
(Port-.015 Over Sized) (XR6 Magnum III 175/200 -
1239-822321A12 RING KIT, Piston - Standard
(Standard) (XR6 Magnum III 175/200RING KIT, Piston - Standard
(Standard) (XR6 Magnum III 175/200 -
1239-822321A1 RING KIT, Piston - .015 Oversize
(.015 O.S.) (XR6 Magnum III 175/200)RING KIT, Piston - .015 Oversize
(.015 O.S.) (XR6 Magnum III 175/200) -
1353-857196 RING, Lock
(XR6 Magnum III 175/200)RING, Lock
(XR6 Magnum III 175/200) -
14NSS NOT SOLD SEPARATE, Pistion Pin
(XR6 Magnum III 175/200)NOT SOLD SEPARATE, Pistion Pin
(XR6 Magnum III 175/200) -
15644-818141A13 CONNECTING ROD KITCONNECTING ROD KIT
-
1610-763491 SCREW, (.312-24 x .875)SCREW, (.312-24 x .875)
-
1712-8M0012298 WASHERWASHER
-
1831-8M0045428 BEARING KITBEARING KIT
-
1929-822553 BEARING, NeedleBEARING, Needle
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III)POWERHEAD ASSEMBLY
(XR6/Magnum III) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
