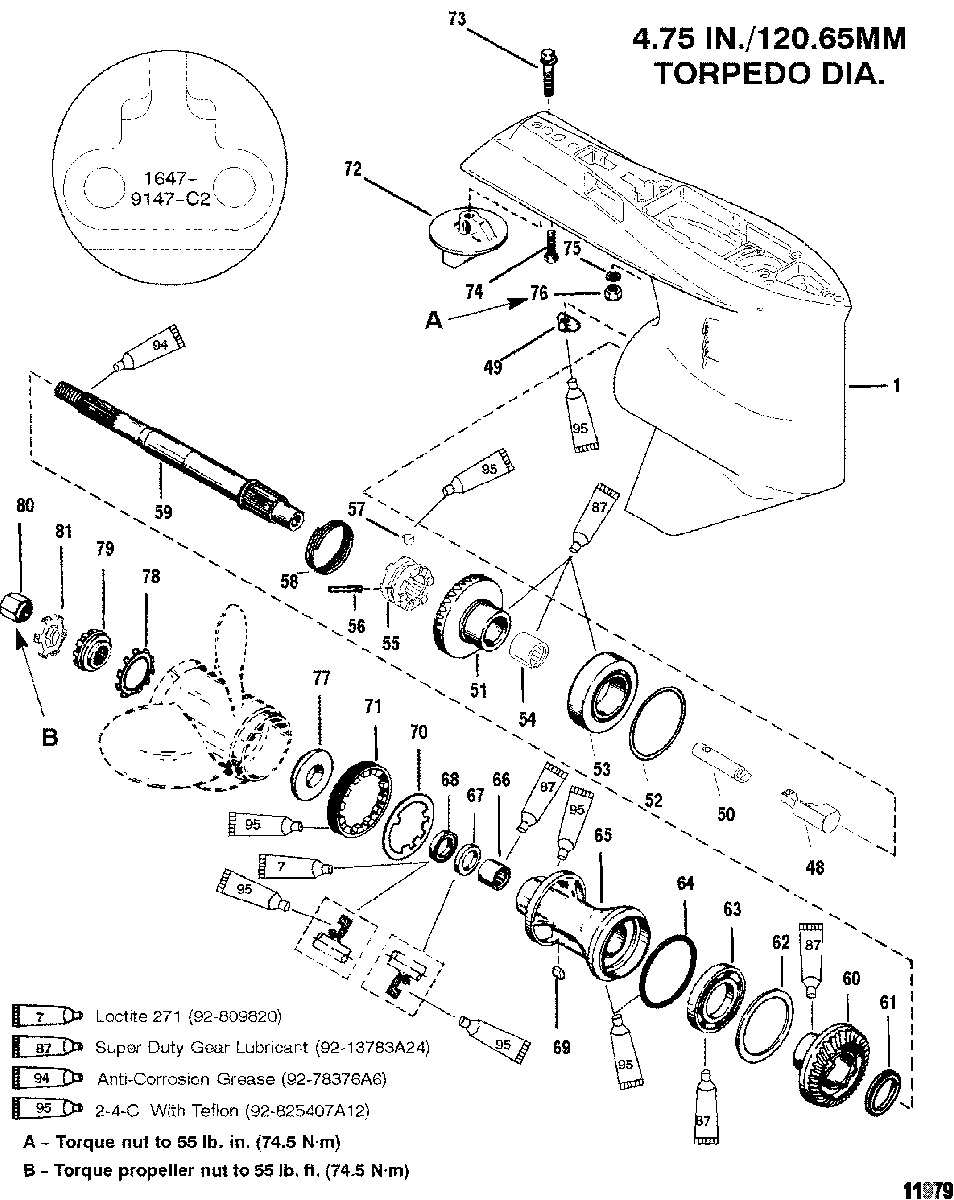

Gear Housing(Propshaft-Standard-S/N-0G438000 & Up) для Mercury - 105 JET 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY
(Black) (Basic)GEAR HOUSING ASSEMBLY
(Black) (Basic) -
11647-9148T93 GEAR HOUSING ASSEMBLY
(Gray) (Basic)GEAR HOUSING ASSEMBLY
(Gray) (Basic) -
4889594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
49789562 SHIFT CAMSHIFT CAM
-
50828287 RODROD
-
5143-803615T2 GEAR SET
(XR6/Magnum III/175/200) (1.87:1 - 15/28)GEAR SET
(XR6/Magnum III/175/200) (1.87:1 - 15/28) -
5143-803612T2 GEAR ASSEMBLY, Forward
(135/150) (2.0:1 - 14/28)GEAR ASSEMBLY, Forward
(135/150) (2.0:1 - 14/28) -
5215-8M0063266 SHIM SET (.006-7-9-10-20)SHIM SET (.006-7-9-10-20)
-
5331-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
5431-30895T BEARING, NeedleBEARING, Needle
-
5552-859340T SLIDING CLUTCHSLIDING CLUTCH
-
5617-8M0100263 PIN, CrossPIN, Cross
-
5717-828356 PIN, DetentPIN, Detent
-
5824-30893 SPRINGSPRING
-
5944-94148 PROPELLER SHAFTPROPELLER SHAFT
-
6043-828175A1 GEAR ASSEMBLY, Reverse - 15/28
(XR6/Magnum III/175/200)GEAR ASSEMBLY, Reverse - 15/28
(XR6/Magnum III/175/200) -
6043-828177A1 GEAR ASSEMBLY, Reverse - 14/28
(135/150)GEAR ASSEMBLY, Reverse - 14/28
(135/150) -
6123-824108 SPACERSPACER
-
62681001 RING, ThrustRING, Thrust
-
6330-88957T BEARING ASSEMBLY, BallBEARING ASSEMBLY, Ball
-
6425-31534 O-RINGO-RING
-
6543567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6631-30956T BEARING, NeedleBEARING, Needle
-
6726-14077 SEAL, Oil, InsideSEAL, Oil, Inside
-
6826-76868 SEAL, OutsideSEAL, Outside
-
6928-30281 KEYKEY
-
7014-79447 TAB WASHERTAB WASHER
-
718M2000347 RETAINERRETAINER
-
7231640T07 TRIM TABTRIM TAB
-
7297-76214Q5 ANODE KIT
(Tracker)ANODE KIT
(Tracker) -
7310-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
7410-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
7512-45176 WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7611-34933 NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7712-835467Q01 THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7813-423511 LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
7912-31211Q03 WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8011-52707Q1 PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8114-816629Q TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
