Tools для Mercruiser - ZEUS 3000 0M969003 & Up
-
№АртикулНазвание
-

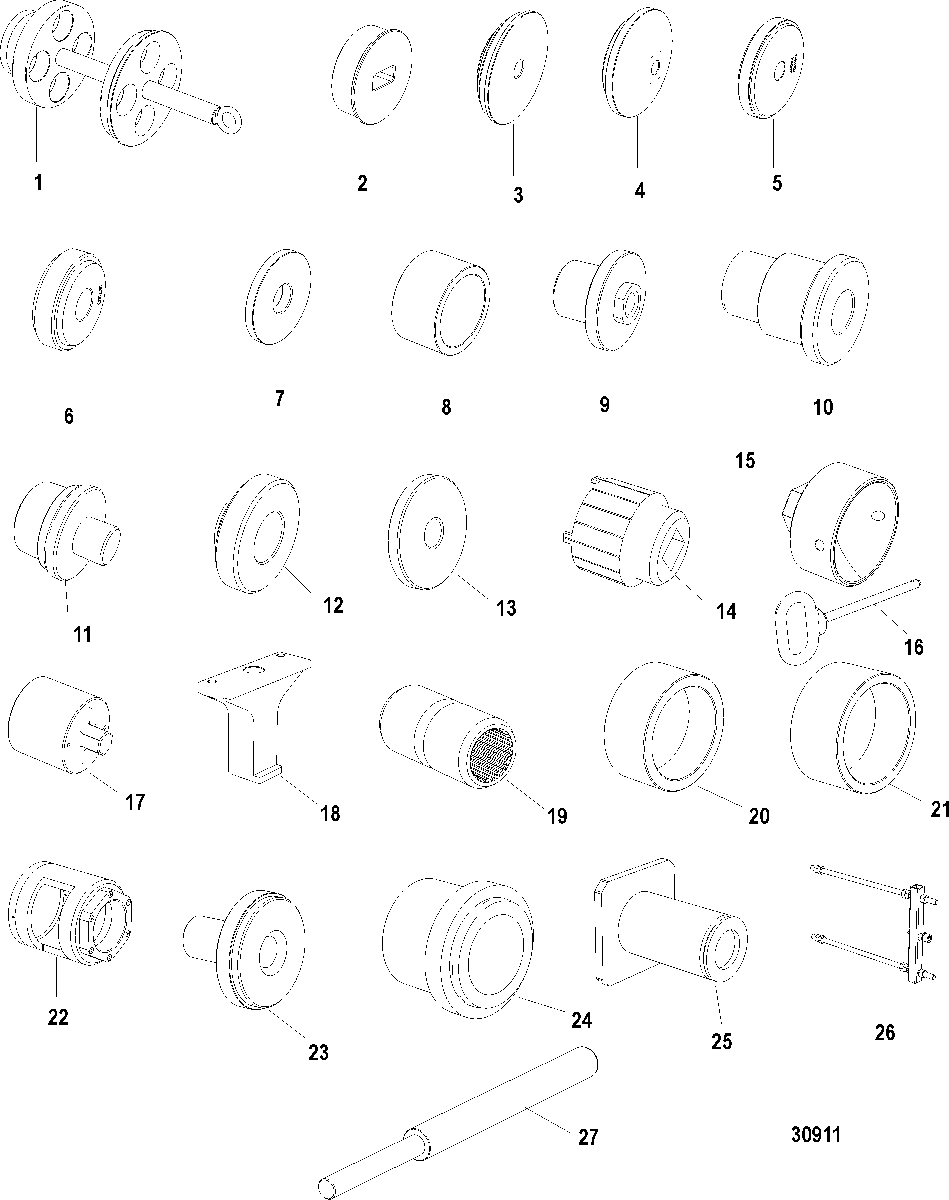

191-8M0007677 TOOL, Pinion Height GageTOOL, Pinion Height Gage
-
291-8M0007678 TOOL, Pinion Wrench GuideTOOL, Pinion Wrench Guide
-
391-8M0007680 TOOL, GuideTOOL, Guide
-
491-8M0007681 TOOL, GuideTOOL, Guide
-
591-8M0007682 TOOL, Bearing Cup Installation, PropshaftTOOL, Bearing Cup Installation, Propshaft
-
691-8M0007683 TOOL, Bearing Cup Installation, Vertical DriveshaftTOOL, Bearing Cup Installation, Vertical Driveshaft
-
791-8M0007684 TOOL, Plate, Bearing PressingTOOL, Plate, Bearing Pressing
-
891-8M0007685 TOOL, Spacer, Bearing PressingTOOL, Spacer, Bearing Pressing
-
991-8M0007688 TOOL, Pinion Bearing InstallationTOOL, Pinion Bearing Installation
-
1091-8M0007689 TOOL, Bearing Installation, PropshaftTOOL, Bearing Installation, Propshaft
-
1191-8M0007690 TOOL, Bearing Installation, SpoolTOOL, Bearing Installation, Spool
-
1291-8M0007691 TOOL, Seal Installation, Outer PropshaftTOOL, Seal Installation, Outer Propshaft
-
1391-8M0007692 TOOL, Seal Installation, SpoolTOOL, Seal Installation, Spool
-
1491-8M0007693 TOOL, Retaining Nut, Rear GearTOOL, Retaining Nut, Rear Gear
-
1591-8M0007695 TOOL, Nose Cone InstallationTOOL, Nose Cone Installation
-
1691-8M0030724 TOOL, Quick Release PinTOOL, Quick Release Pin
-
1791-8M0021221 TOOL, Vertical Driveshaft Retaining NutTOOL, Vertical Driveshaft Retaining Nut
-
1891-8M0029055 TOOL, Drive AlignmentTOOL, Drive Alignment
-
1991-8M0030004 TOOL, Spline AdaptorTOOL, Spline Adaptor
-
2091-8M0030153 TOOL, Bearing Cone Installation (Small)TOOL, Bearing Cone Installation (Small)
-
2191-8M0030154 TOOL, Bearing Cone Installation (Large)TOOL, Bearing Cone Installation (Large)
-
2291-8M0030213 TOOL, Outer Propshaft PreloadTOOL, Outer Propshaft Preload
-
2391-8M0030271 TOOL, Inner Propshaft SupportTOOL, Inner Propshaft Support
-
2491-8M0030292 TOOL, Driveshaft Bearing Cup PullerTOOL, Driveshaft Bearing Cup Puller
-
2591-8M0030455 TOOL, Bearing PressTOOL, Bearing Press
-
2691-8M0030456 TOOL, Inner Propshaft PreloadingTOOL, Inner Propshaft Preloading
-
2791-8M0030457 TOOL, Bearing Cup Puller, SpoolTOOL, Bearing Cup Puller, Spool
