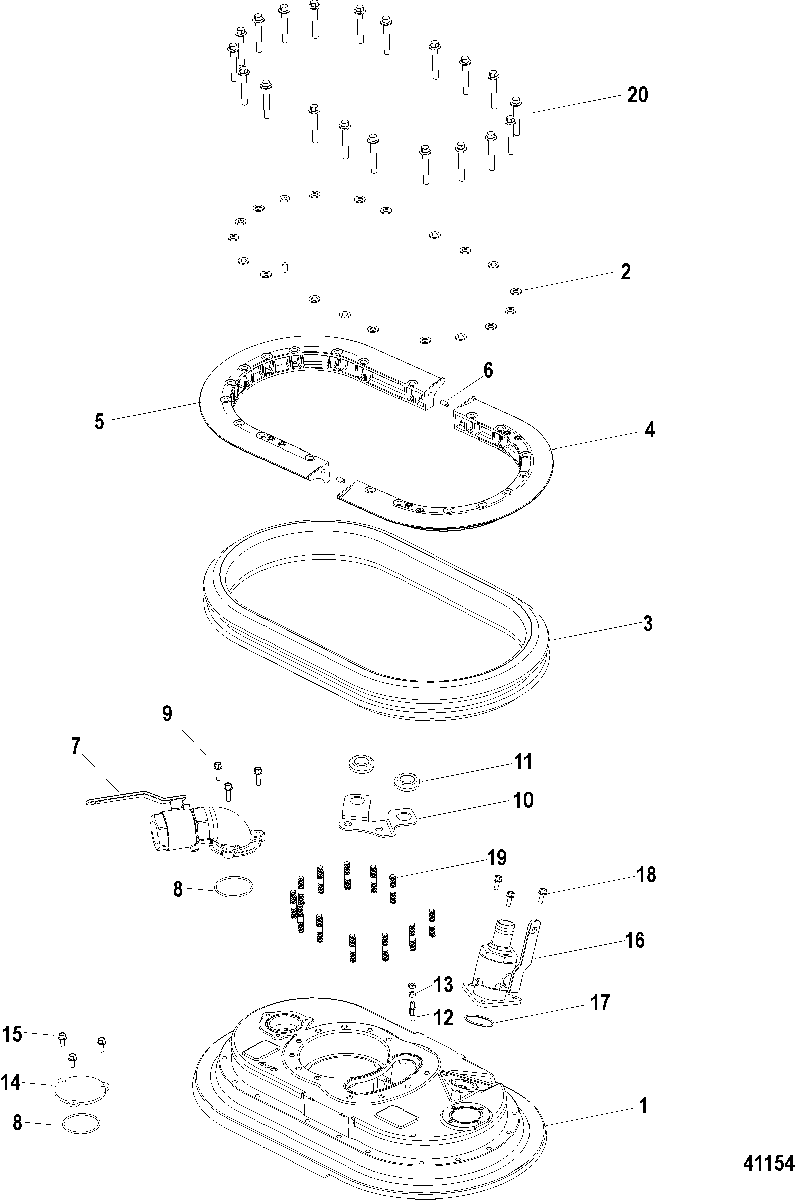

Midsection, Upper для Mercruiser - ZEUS 3000 0M969003 & Up
-
№АртикулНазвание
-
18M0094678 MID SECTION PLATEMID SECTION PLATE
-
18M0094678 MID SECTION PLATE
SN# 0M971958 & UpMID SECTION PLATE
SN# 0M971958 & Up -
212-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
325-8M0083321 GROMMETGROMMET
-
4879148T61 CLAMP RING, RearCLAMP RING, Rear
-
5879148T60 CLAMP RING, FrontCLAMP RING, Front
-
617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
720-8M0089447 BALL VALVE ASSEMBLY, Short Neck, 2.0 InchBALL VALVE ASSEMBLY, Short Neck, 2.0 Inch
-
720-8M0089449 BALL VALVE ASSEMBLY, 2.5 InchBALL VALVE ASSEMBLY, 2.5 Inch
-
825-38106 O-RINGO-RING
-
910-8M0041198 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
108M0007662 BRACKETBRACKET
-
1125-8M0007663 GROMMETGROMMET
-
1216-865326 STUD, (M8 x 30)STUD, (M8 x 30)
-
1311-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
148M0037194 COVER PLATECOVER PLATE
-
1510-8M0039671 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
16879345T58 BALL VALVE ASSMBLY, 1.5 InchBALL VALVE ASSMBLY, 1.5 Inch
-
1725-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1810-8M0039671 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1916-8M0007531 STUD, (M12 x 63)STUD, (M12 x 63)
-
2010-879150A86 SCREW KITSCREW KIT
-
-8M0074256 BRONZE REPAIR KITBRONZE REPAIR KIT
-
-8M0082937 CERAMIC REPAIR KITCERAMIC REPAIR KIT
-
-37-8M0077475 DECAL, Do Not Power WashDECAL, Do Not Power Wash
