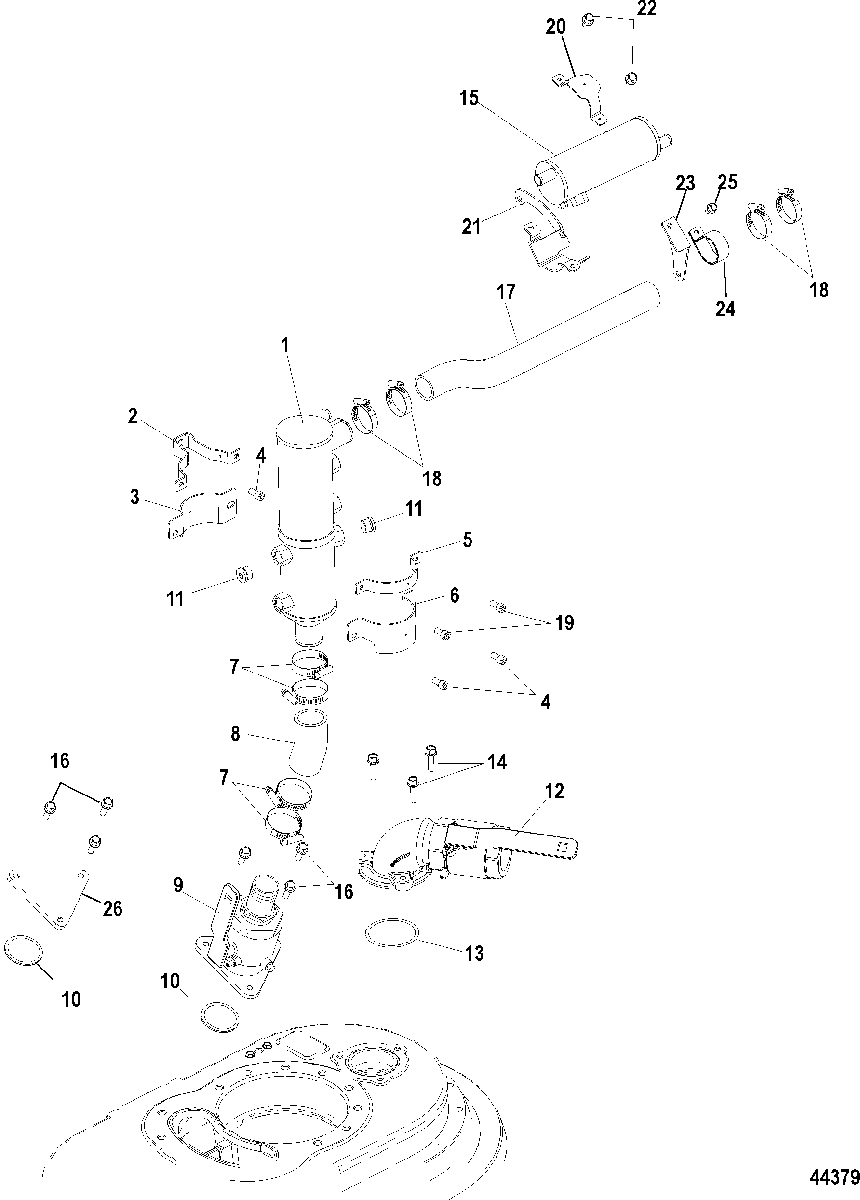

Cooling System(Cold Water Cooler) для Mercruiser - ZEUS 3000 0M969003 & Up
-
№АртикулНазвание
-
1879150A79 COOLERCOOLER
-
28M0007715 BRACKETBRACKET
-
38M0007713 BRACKETBRACKET
-
410-4008916 SCREW, (M8 x 16) Stainless SteelSCREW, (M8 x 16) Stainless Steel
-
58M0007716 BRACKETBRACKET
-
68M0007714 BRACKETBRACKET
-
754-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
832-8M0037197 HOSEHOSE
-
9879345T58 BALL VALVE ASSMBLY, 1.5 InchBALL VALVE ASSMBLY, 1.5 Inch
-
1025-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1119-8M0025635 PLUGPLUG
-
1220-8M0089448 BALL VALVE ASSEMBLY, Long Neck, 2.0 InchBALL VALVE ASSEMBLY, Long Neck, 2.0 Inch
-
1220-8M0089449 BALL VALVE ASSEMBLY, 2.5 InchBALL VALVE ASSEMBLY, 2.5 Inch
-
1325-38106 O-RINGO-RING
-
1410-8M0041198 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
15879150A80 COOLERCOOLER
-
1610-8M0039671 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1732-8M0062634 HOSE, 44.00 inch Bulk, Cut to 10 InchHOSE, 44.00 inch Bulk, Cut to 10 Inch
-
1854-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
1910-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
208M0025162 CLAMPCLAMP
-
218M0109728 BRACKETBRACKET
-
2210-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
238M0026220 BRACKETBRACKET
-
2454-8M0041193 CLIPCLIP
-
2510-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
268M0046084 COVER PLATE
ZorroCOVER PLATE
Zorro -
NS37-8M0037747 DECAL, No StepDECAL, No Step
