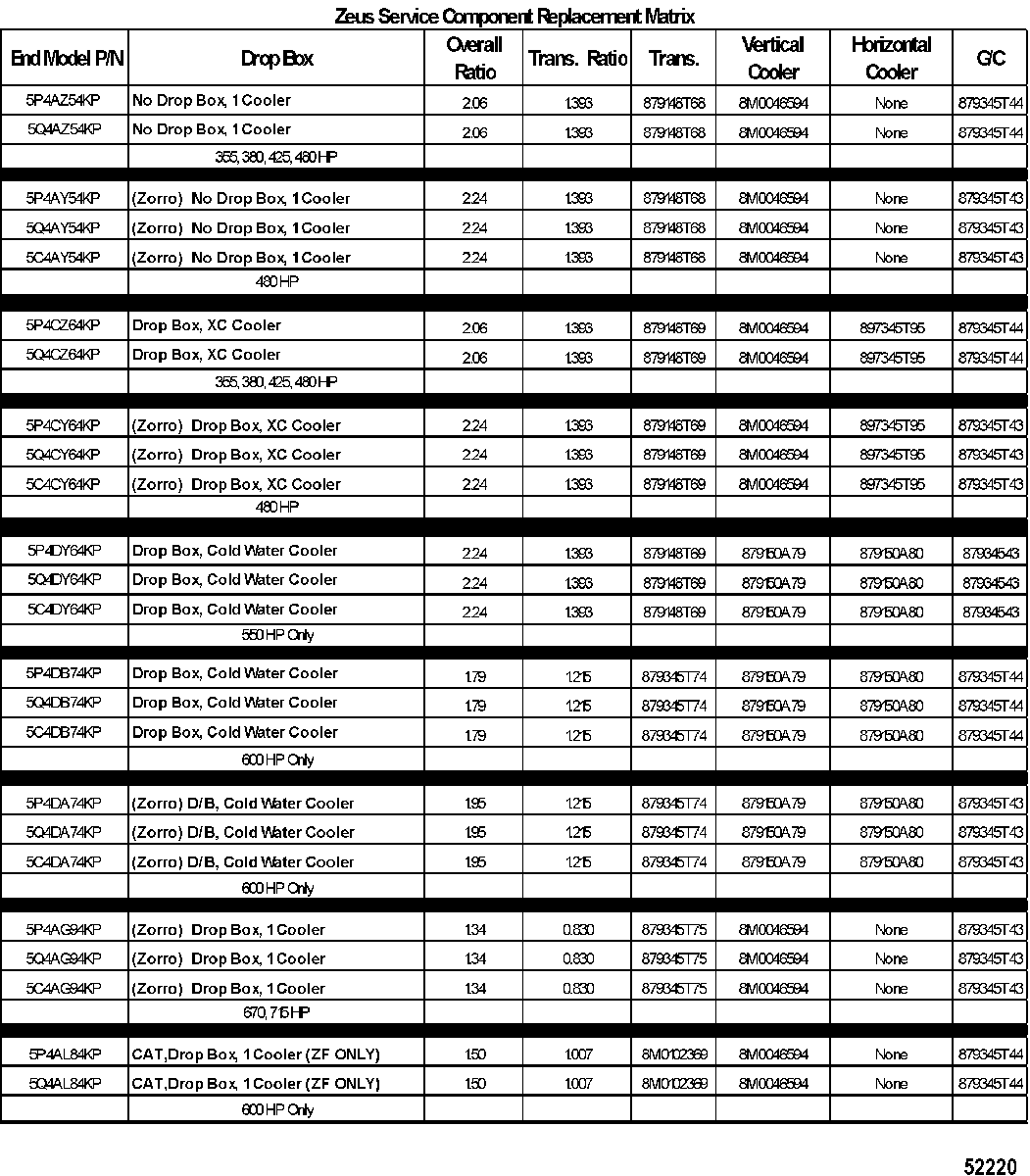

Zeus Service Component Replacement Matrix для Mercruiser - ZEUS 3000 0M968887 THRU 0M968892
-
№АртикулНазвание
-
-879148T68 TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(No Drop Box)
-
-879148T69 TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.393:1 Gear Ratio)(With Drop Box)
-
-879345T74 TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.215:1 Gear Ratio)(With Drop Box)
-
-879345T75 TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)TRANSMISSION, (.831:1 Gear Ratio)(With Drop Box)
-
-8M0102369 TRANSMISSION, (1.007:1 Gear Ratio)(With Drop Box)TRANSMISSION, (1.007:1 Gear Ratio)(With Drop Box)
-
-8M0046594 COOLER, OilCOOLER, Oil
-
-879150A79 COOLERCOOLER
-
-897345T95 COOLERCOOLER
-
-879150A80 COOLERCOOLER
-
-879345T43 GEARCASE ASSEMBLY, 1.611 RatioGEARCASE ASSEMBLY, 1.611 Ratio
-
-879345T44 GEARCASE ASSEMBLY, 1.478 RatioGEARCASE ASSEMBLY, 1.478 Ratio
-
-5-5P4AZ54KP ZEUS DR SC2.5, NO DBX PORT 2.06ZEUS DR SC2.5, NO DBX PORT 2.06
-
-5-5Q4AZ54KP ZEUS DR SC2.5, NO DBX STBD 2.06ZEUS DR SC2.5, NO DBX STBD 2.06
-
-5-5P4AY54KP ZEUS DR SC2.5, NO DBX PORT 2.24ZEUS DR SC2.5, NO DBX PORT 2.24
-
-5-5Q4AY54KP ZEUS DR SC2.5, NO DBX STBD 2.24ZEUS DR SC2.5, NO DBX STBD 2.24
-
-5-5C4AY54KP ZEUS DR SC2.5, NO DBX CENTER 2.24ZEUS DR SC2.5, NO DBX CENTER 2.24
-
-5-5P4CZ64KP ZEUS DR SC2.5, W/ DBX PORT 2.06ZEUS DR SC2.5, W/ DBX PORT 2.06
-
-5-5Q4CZ64KP ZEUS DR SC2.5, W/ DBX STBD 2.06ZEUS DR SC2.5, W/ DBX STBD 2.06
-
-5-5P4CY64KP ZEUS DR SC2.5, W/ DBX PORT 2.24ZEUS DR SC2.5, W/ DBX PORT 2.24
-
-5-5Q4CY64KP ZEUS DR SC2.5, W/ DBX STBD 2.24ZEUS DR SC2.5, W/ DBX STBD 2.24
-
-5-5C4CY64KP ZEUS DR SC2.5, W/ DBX CENTER 2.24ZEUS DR SC2.5, W/ DBX CENTER 2.24
-
-5-5P4DB74KP ZEUS DR SC2.5, W/ DBX PORT 1.79ZEUS DR SC2.5, W/ DBX PORT 1.79
-
-5-5Q4DB74KP ZEUS DR SC2.5, W/ DBX STBD 1.79ZEUS DR SC2.5, W/ DBX STBD 1.79
-
-5-5C4DB74KP ZEUS DR SC2.5, W/ DBX CENTER 1.79ZEUS DR SC2.5, W/ DBX CENTER 1.79
-
-5-5P4DA74KP ZEUS DR SC2.5, W/ DBX PORT 1.95ZEUS DR SC2.5, W/ DBX PORT 1.95
-
-5-5Q4DA74KP ZEUS DR SC2.5, W/ DBX STBD 1.95ZEUS DR SC2.5, W/ DBX STBD 1.95
-
-5-5C4DA74KP ZEUS DR SC2.5, W/ DBX CENTER 1.95ZEUS DR SC2.5, W/ DBX CENTER 1.95
-
-5-5P4AG94KP ZEUS DR SC2.5, W/ DBX PORT 1.34ZEUS DR SC2.5, W/ DBX PORT 1.34
-
-5-5Q4AG94KP ZEUS DR SC2.5, W/ DBX STBD 1.34ZEUS DR SC2.5, W/ DBX STBD 1.34
-
-5-5C4AG94KP ZEUS DR SC2.5, W/ DBX CENTER 1.34ZEUS DR SC2.5, W/ DBX CENTER 1.34
-
-5-5P4AL84KP ZEUS DR SC2.5, W/ DBX PORT 1.5ZEUS DR SC2.5, W/ DBX PORT 1.5
-
-5-5Q4AL84KP ZEUS DR SC2.5, W/ DBX STBD 1.5ZEUS DR SC2.5, W/ DBX STBD 1.5
-
-5-5P4DY64KP ZEUS DR SC2.5, W/ DBX PORT 2.24ZEUS DR SC2.5, W/ DBX PORT 2.24
-
-5-5C4DY64KP ZEUS DR SC2.5, W/ DBX CENTER 2.24ZEUS DR SC2.5, W/ DBX CENTER 2.24
-
-5-5Q4DY64KP ZEUS DR SC2.5, W/ DBX STBD 2.24ZEUS DR SC2.5, W/ DBX STBD 2.24
