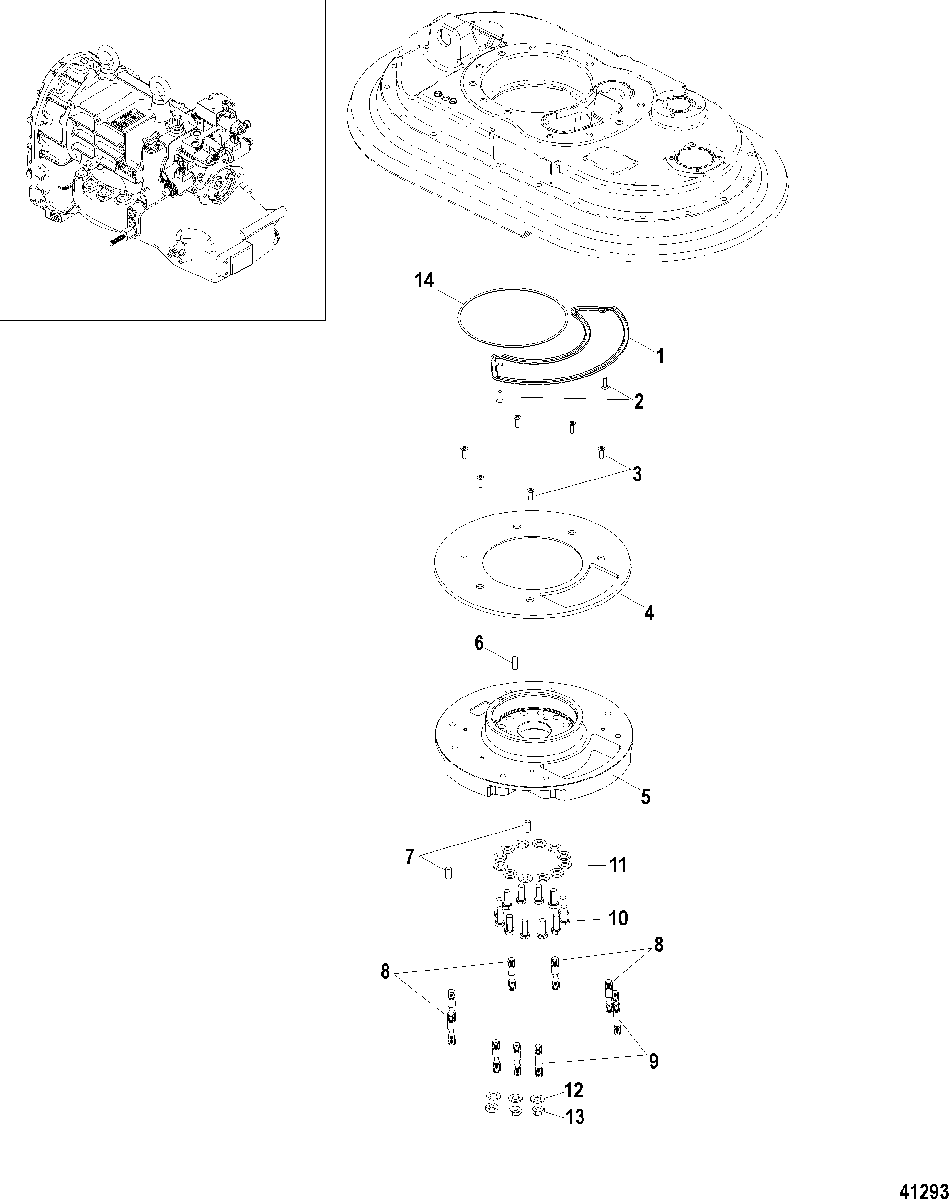

Steering System, Lower King Pin Adaptor (14mm Fasteners) для Mercruiser - ZEUS 3000 0M968887 THRU 0M968892
-
№АртикулНазвание
-
127-8M0007545 SEALSEAL
-
210-832838 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
310-8M0022382 SCREW , (M6 x 20)
SN# 0M971957 & BelowSCREW , (M6 x 20)
SN# 0M971957 & Below -
310-8M0095759 SCREW, (M6 x 16)
SN# 0M971958 & UpSCREW, (M6 x 16)
SN# 0M971958 & Up -
48M0053618 PLATEPLATE
-
5879150A78 KING PIN ADAPTOR PLATE, PortKING PIN ADAPTOR PLATE, Port
-
5879150A83 KING PIN ADAPTOR PLATE, StarboardKING PIN ADAPTOR PLATE, Starboard
-
617-8M0043826 PIN, DowelPIN, Dowel
-
717-826359 PINPIN
-
816-8M0110668 STUD, M12X61 Stainless SteelSTUD, M12X61 Stainless Steel
-
916-8M0007531 STUD, (M12 x 63)STUD, (M12 x 63)
-
1010-8M0042302 SCREW, (M14 x 40)SCREW, (M14 x 40)
-
1112-4002323 WASHER, (15.02 mm x 28.0 mm x 2.8 mm) Stainless SteelWASHER, (15.02 mm x 28.0 mm x 2.8 mm) Stainless Steel
-
1212-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
1311-896895 NUT, (M12)NUT, (M12)
-
1425-8M0007557 O-RING, (133.02 x 2.62)O-RING, (133.02 x 2.62)
