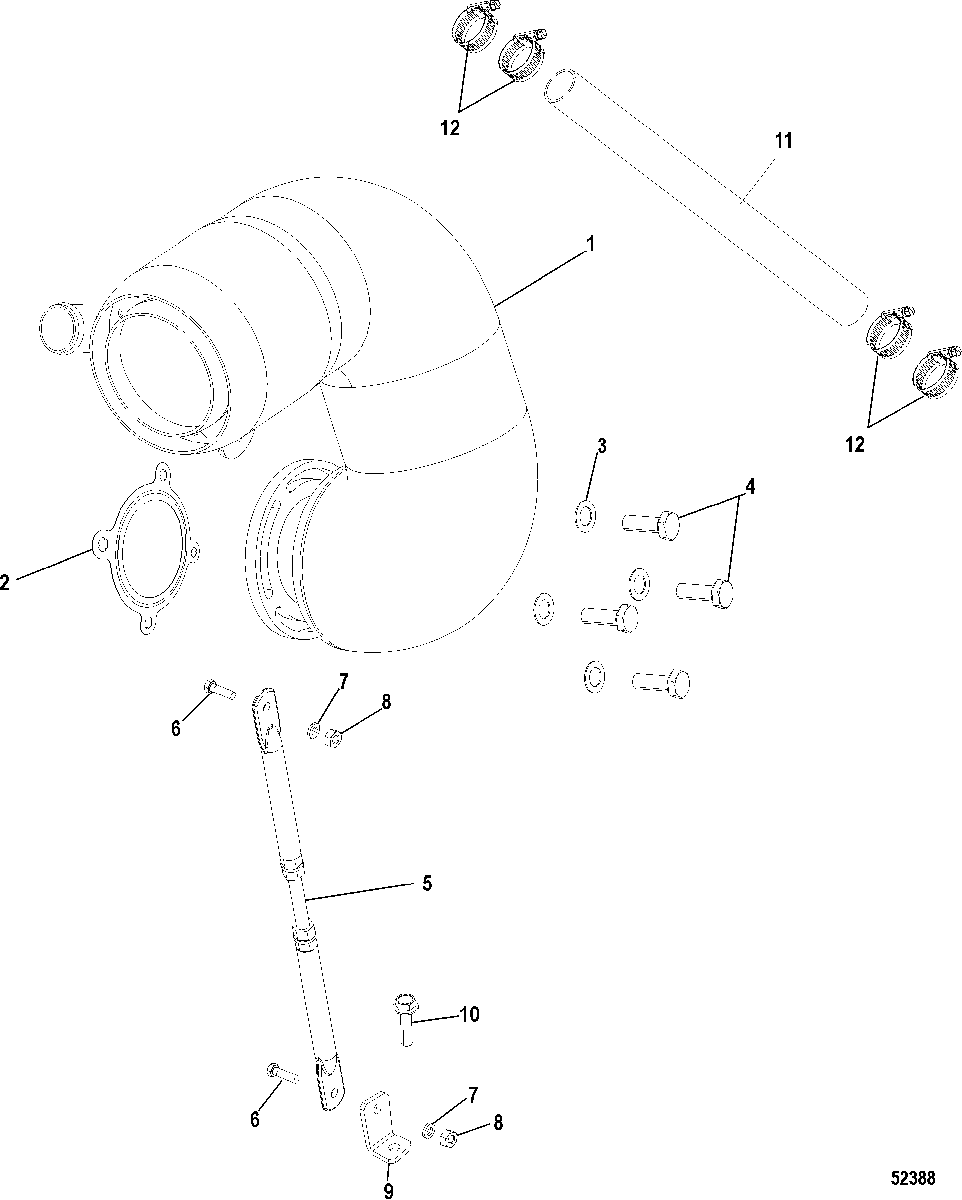

Riser, Exhaust, QSC, Port & Stbd, Design-I Stamped 8M0068886 для Mercruiser - ZEUS 3000 0M968887 THRU 0M968892
-
№АртикулНазвание
-
-8M0077220 RISER KIT, Exhaust ElbowRISER KIT, Exhaust Elbow
-
1NSS NOT SOLD SEPARATE, RISERNOT SOLD SEPARATE, RISER
-
227-8M0068859 GASKETGASKET
-
312-8M0068831 WASHERWASHER
-
410-853219 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
58M0068856 BRACEBRACE
-
610-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
712-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
811-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
98M0068904 BRACEBRACE
-
1010-8M0068824 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1132-8M0068899 HOSE, 50.8 x 711.2mmHOSE, 50.8 x 711.2mm
-
1254-8M0068822 CLAMP, HOSE, 46-70mmCLAMP, HOSE, 46-70mm
