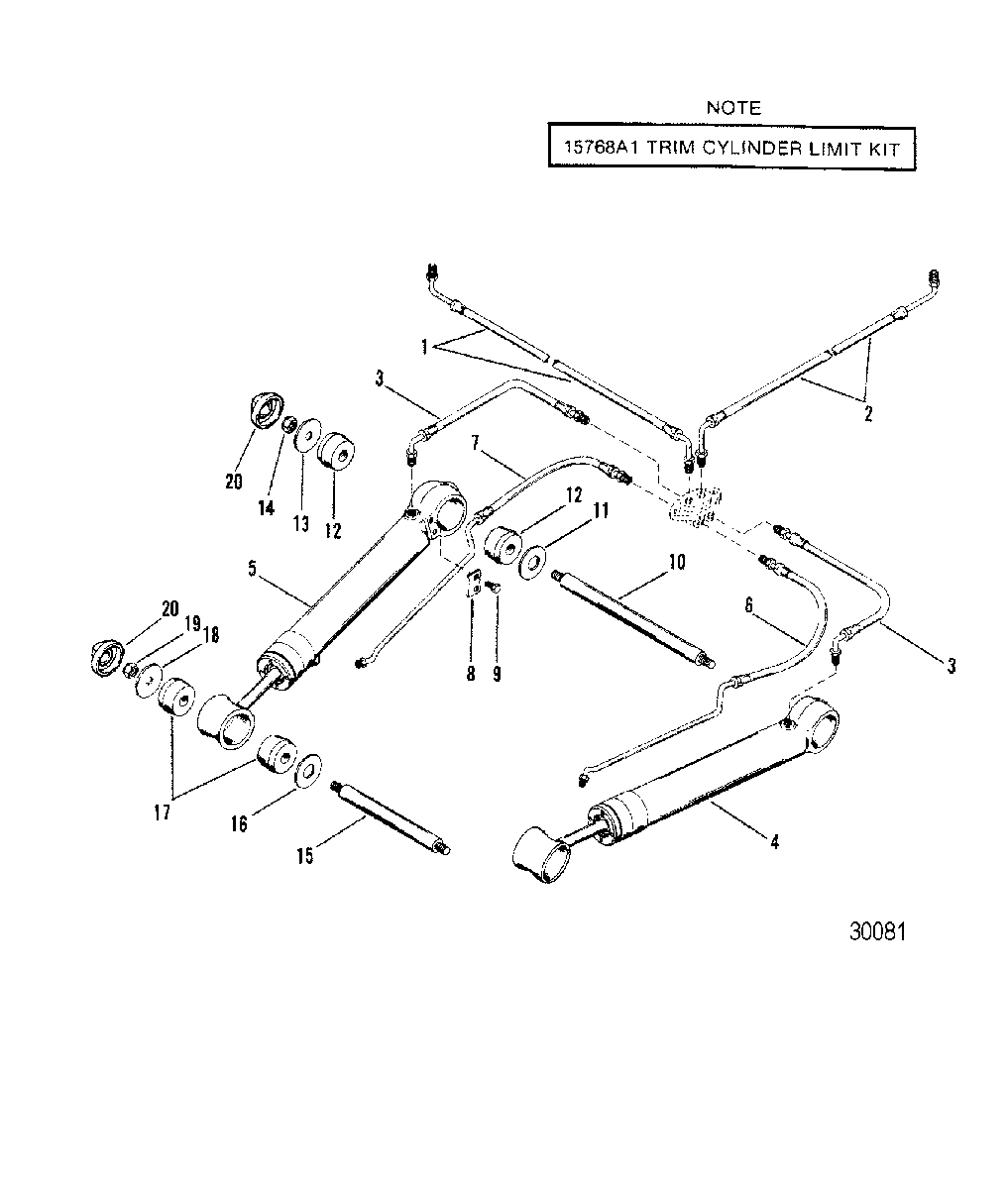

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    32-861127 HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK)
    HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK)
  • 2
    32-861128 HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY)
    HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY)
  • 3
    32-99904Q HOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTOR
    HOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTOR
  • 4
    98704A3 TRIM CYLINDER ASSEMBLY (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-10
    TRIM CYLINDER ASSEMBLY (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-10
  • 4
    8M0118961 TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK)
    SEE DRIVE UNIT CHART REF.# 1-11
    TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 5
    98703A3 TRIM CYLINDER (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
    TRIM CYLINDER (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 5
    8M0118960 TRIM CYLINDER ASSEMBLY (PORT) (BLACK)
    SEE DRIVE UNIT CHART REF.# 1-11
    TRIM CYLINDER ASSEMBLY (PORT) (BLACK)
    SEE DRIVE UNIT CHART REF.# 1-11
  • --
    87399A2 OVERHAUL KIT, TRIM CYLINDER
    OVERHAUL KIT, TRIM CYLINDER
  • --
    25-87400A2 SEAL KIT, TRIM CYLINDER
    SEAL KIT, TRIM CYLINDER
  • 6
    32-864589 HOSE, Trim Cylinder (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-11
    HOSE, Trim Cylinder (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 6
    32-864960 HOSE, Trim Cylinder (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-11
    HOSE, Trim Cylinder (STARBOARD)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 7
    32-864588 HOSE, Trim Cylinder (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
    HOSE, Trim Cylinder (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 7
    32-864959 HOSE, Trim Cylinder (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
    HOSE, Trim Cylinder (PORT)
    SEE DRIVE UNIT CHART REF.# 1-11
  • 8
    85060 PLATE, CLAMPING - TRIM CYLINER HOSE
    PLATE, CLAMPING - TRIM CYLINER HOSE
  • 9
    10-85486 SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE
    SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE
  • 10
    17-14873A1 PIN ASSEMBLY, FRONT ACNHOR
    PIN ASSEMBLY, FRONT ACNHOR
  • 11
    12-85058 WASHER, FRONT PIN
    WASHER, FRONT PIN
  • 12
    23-99291T BUSHING, RUBBER
    BUSHING, RUBBER
  • 13
    12-85057 WASHER, FRONT PIN 3/8-24 THREADS
    WASHER, FRONT PIN 3/8-24 THREADS
  • 13
    12-44163 WASHER, (.450 x 1.75 x .12), FRONT PIN
    WASHER, (.450 x 1.75 x .12), FRONT PIN
  • 14
    11-862903 NUT, (.375-24), FRONT PIN
    NUT, (.375-24), FRONT PIN
  • 14
    11-859116 NUT, (.437-20), FRONT PIN
    NUT, (.437-20), FRONT PIN
  • 15
    17-14872A1 PIN, REAR ANCHOR 3/8-24 THREADS
    PIN, REAR ANCHOR 3/8-24 THREADS
  • 15
    17-14872A1 PIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADS
    PIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADS
  • 16
    12-85058 WASHER, REAR PIN 3/8-24 THREADS
    WASHER, REAR PIN 3/8-24 THREADS
  • 16
    12-85058 WASHER, REAR PIN 7/16-20 THREADS
    WASHER, REAR PIN 7/16-20 THREADS
  • 17
    23-99291T BUSHING, RUBBER
    BUSHING, RUBBER
  • 18
    12-85057 WASHER, REAR PIN 3/8-24 THREADS
    WASHER, REAR PIN 3/8-24 THREADS
  • 18
    12-44163 WASHER, (.450 x 1.75 x .12), REAR PIN
    WASHER, (.450 x 1.75 x .12), REAR PIN
  • 19
    11-862903 NUT, (.375-24), REAR PIN
    NUT, (.375-24), REAR PIN
  • 19
    11-859116 NUT, (.437-20), REAR PIN
    NUT, (.437-20), REAR PIN
  • 20
    19-14842 CAP, FRONT PIN 7/16-20 THREADS (BLACK)
    CAP, FRONT PIN 7/16-20 THREADS (BLACK)
  • 20
    19-14842 CAP, REAR PIN 7/16-20 THREADS (BLACK)
    CAP, REAR PIN 7/16-20 THREADS (BLACK)
