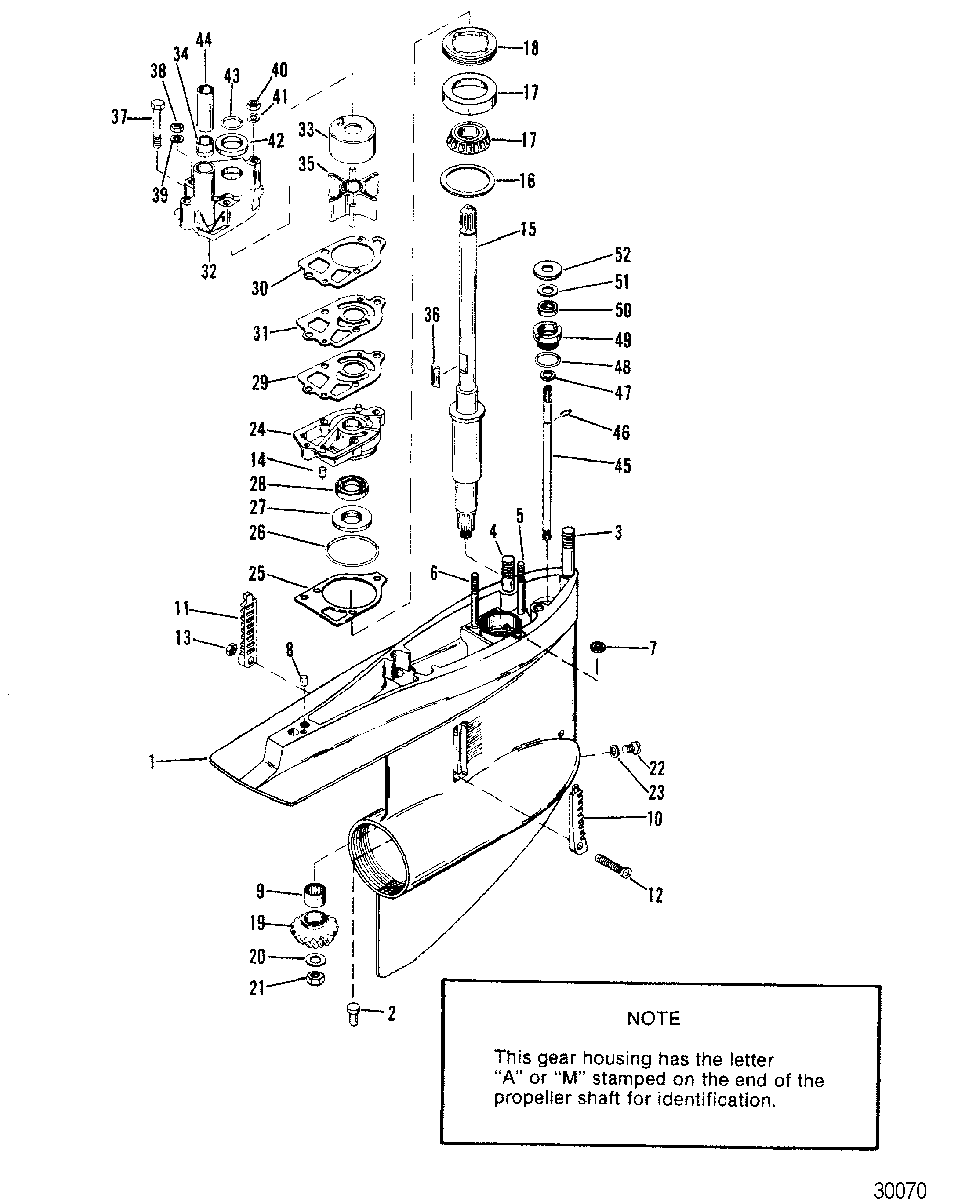

GEAR HOUSING(DRIVESHAFT) - MR для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858
-
№АртикулНазвание
-
--1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE (BLACK)GEAR HOUSING ASSEMBLY, COMPLETE (BLACK)
-
11623-8951A37 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
217-379721 PINPIN
-
316-46911 STUD (3-3/16 inch)STUD (3-3/16 inch)
-
416-56298 STUD (1-31/32 inch)STUD (1-31/32 inch)
-
516-8M0034463 STUD, (.312-18/.324-24 x 3.380)STUD, (.312-18/.324-24 x 3.380)
-
616-69501 STUD (3-1/4 inch)STUD (3-1/4 inch)
-
726-455771 SEAL
See Note 1SEAL
See Note 1 -
817-8M0084627 PIN, DowelPIN, Dowel
-
931-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
10934231 INSERT (STARBOARD) (BLACK)INSERT (STARBOARD) (BLACK)
-
11934241 INSERT (PORT) (BLACK)INSERT (PORT) (BLACK)
-
1210-76156 SCREW, (#10-32 x 1.88)SCREW, (#10-32 x 1.88)
-
1311-859124 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1417-42836 PIN, GroovePIN, Groove
-
1545-8M0140438 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1615-8M0063267 SHIM SETSHIM SET
-
1731-36387A1 BEARING, RollerBEARING, Roller
-
188245191 RETAINERRETAINER
-
1943-878087A4 GEAR SET (INCLUDES PINION AND FORWARD GEARS)GEAR SET (INCLUDES PINION AND FORWARD GEARS)
-
2012-92721 WASHERWASHER
-
2111-35921 NUT, (.625-18)NUT, (.625-18)
-
2222-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
2312-191833 WASHER
(Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1WASHER
(Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1 -
2446-44292A3 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2527-426311 GASKETGASKET
-
2625-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2625-38099 O-RING (2.109 I.D.)O-RING (2.109 I.D.)
-
2726-89238 SEAL, OilSEAL, Oil
-
2826-16977 SEAL, OilSEAL, Oil
-
2927-8M0090319 GASKET, LOWER
See Note 1GASKET, LOWER
See Note 1 -
3027-858524 GASKET, UPPER
See Note 1GASKET, UPPER
See Note 1 -
31324351 FACE PLATE
See Note 1FACE PLATE
See Note 1 -
3246-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
3348752T INSERTINSERT
-
3426-38970 SEAL, RUBBERSEAL, RUBBER
-
3547-89984T4 IMPELLER
See Note 1IMPELLER
See Note 1 -
3628-8M0032834 KEY
See Note 1KEY
See Note 1 -
3710-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3811-8267119 NUT, (.250-28)NUT, (.250-28)
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4011-13436 NUT (5/16-24)NUT (5/16-24)
-
4112-36001 WASHERWASHER
-
4225-30271 RING, Rubber
(Component of Water Pump Impeller Kit 47-89984T5)RING, Rubber
(Component of Water Pump Impeller Kit 47-89984T5) -
4325-30613 O-RING, UPPER
(Component of Water Pump Impeller Kit 47-89984T5)O-RING, UPPER
(Component of Water Pump Impeller Kit 47-89984T5) -
4423-29804T SLEEVE, GUIDE
(Component of Water Pump Impeller Kit 47-89984T5)SLEEVE, GUIDE
(Component of Water Pump Impeller Kit 47-89984T5) -
45774811 SHIFT SHAFTSHIFT SHAFT
-
4653-29641 E RINGE RING
-
4712-27880 WASHERWASHER
-
4825-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4923-8M0112749 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
5026-892361 SEAL, OilSEAL, Oil
-
5112-31266 WASHER, RUBBERWASHER, RUBBER
-
5212-8M0042641 WASHER, (.390 x 1.00 x .06)WASHER, (.390 x 1.00 x .06)
-
-26-33144A2 SEAL KITSEAL KIT
-
-26-32511A1 SEAL KITSEAL KIT
-
-46-96148A8 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
-43-878087A4 GEAR SETGEAR SET
-
-31-803090T1 BEARING AND SEAL KITBEARING AND SEAL KIT
-
-43-803091T1 REPAIR KIT, Lower UnitREPAIR KIT, Lower Unit
-
-46-44292A3 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
-47-89984T5 IMPELLER KIT, Water PumpIMPELLER KIT, Water Pump
