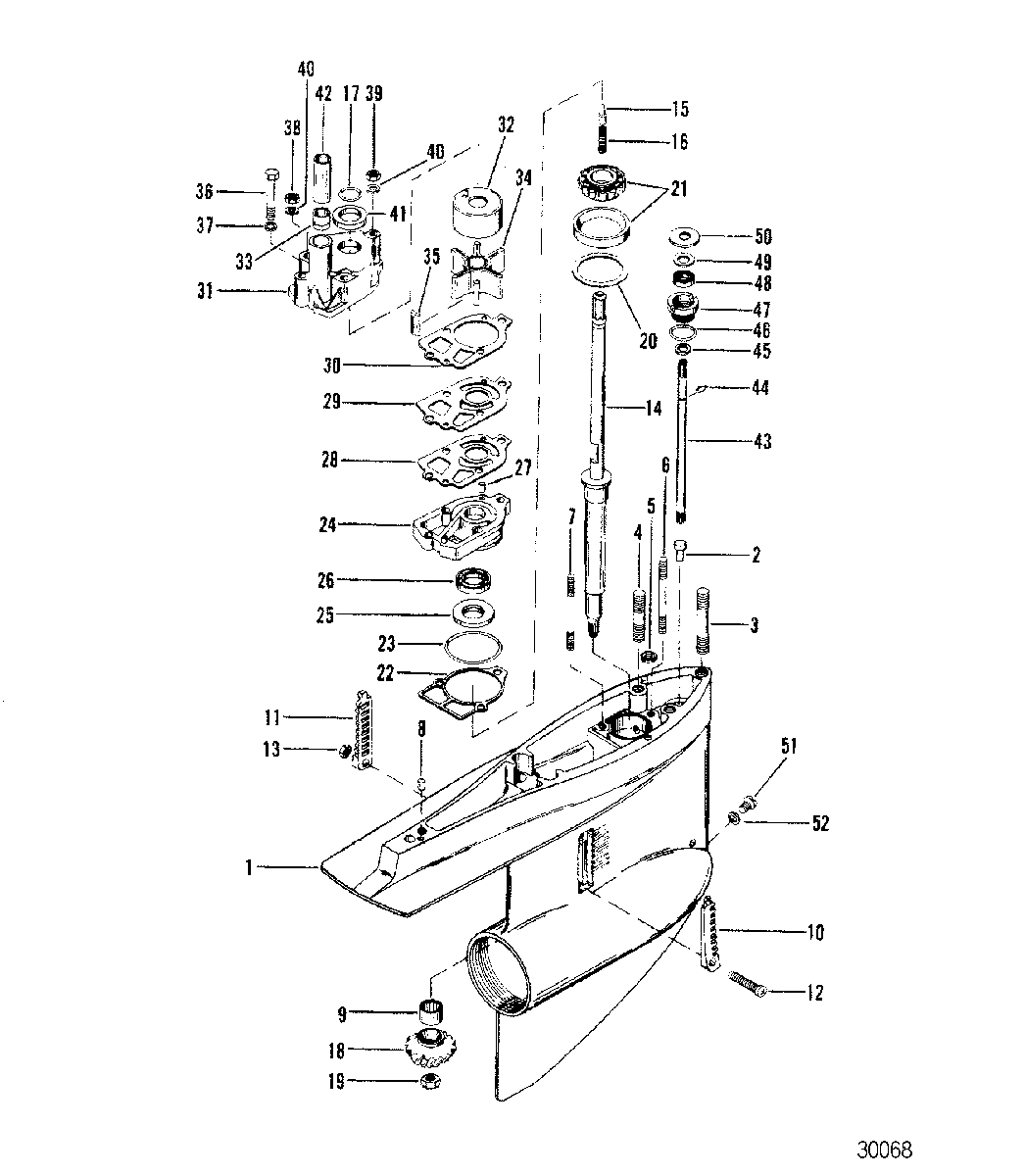

GEAR HOUSING(Driveshaft) - R для Mercruiser - R/MR/ALPHA ONE (Transom Assembly) 1983-1990 6216687 THRU 0D469858
-
№АртикулНазвание
-
--1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11623-5356A4 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-379721 PIN, SHIFT CRANK - GEAR HOUSINGPIN, SHIFT CRANK - GEAR HOUSING
-
316-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)
-
416-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)
-
526-455771 SEAL, GEAR HOUSING
(Component of Driveshaft Housing Seal Kit 26-32511A1) (Component of Gear Repair Kits No. 1-5)SEAL, GEAR HOUSING
(Component of Driveshaft Housing Seal Kit 26-32511A1) (Component of Gear Repair Kits No. 1-5) -
616-8M0034463 STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSINGSTUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING
-
716-69501 STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)
-
817-8M0084627 PIN, Dowel, GEAR HOUSING TO DRIVE SHAFT HOUSINGPIN, Dowel, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
931-92366A1 BEARING ASSEMBLY, Roller, DRIVE SHAFTBEARING ASSEMBLY, Roller, DRIVE SHAFT
-
1066885 INSERT, WATER PICKUP (STARBOARD SIDE)INSERT, WATER PICKUP (STARBOARD SIDE)
-
1166884 INSERT, WATER PICKUP (PORT SIDE)INSERT, WATER PICKUP (PORT SIDE)
-
1210-76156 SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSINGSCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
-
1311-859124 NUT, (#10-32) Stainless Steel, INSERT SCREWNUT, (#10-32) Stainless Steel, INSERT SCREW
-
1445-41939F1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1517-30545 PIN, DRIVESHAFTPIN, DRIVESHAFT
-
1624-34576 SPRING, COMPRESSION - DRIVESHAFTSPRING, COMPRESSION - DRIVESHAFT
-
1725-30613 O-RING, UPPER - DRIVESHAFTO-RING, UPPER - DRIVESHAFT
-
1843-96084A7 GEAR SET (INCLUDES PINION AND FORWARD GEARS)GEAR SET (INCLUDES PINION AND FORWARD GEARS)
-
1911-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFTNUT, (.625-18), PINION GEAR TO DRIVESHAFT
-
2015-57007A1 SHIM, DRIVESHAFT BEARINGSHIM, DRIVESHAFT BEARING
-
2131-53079A1 BEARING ASSEMBLY, Tapered Roller, DRIVESHAFTBEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
-
2227-856704 GASKET, WATER PUMP TO GEAR HOUSINGGASKET, WATER PUMP TO GEAR HOUSING
-
2325-33145 O-RING, (1.984 x .139), WATER PUMPO-RING, (1.984 x .139), WATER PUMP
-
2446-57234A1 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2526-89238 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
2626-16977 SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
2717-8M0084627 PIN, Dowel, WATER PUMPPIN, Dowel, WATER PUMP
-
2827-8M0090319 GASKET, LOWER - WATER PUMP
(Component of Lower Seal Kit 26-33144A2)GASKET, LOWER - WATER PUMP
(Component of Lower Seal Kit 26-33144A2) -
29324351 FACE PLATEFACE PLATE
-
3027-858524 GASKET, UPPER - WATER PUMPGASKET, UPPER - WATER PUMP
-
3146-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
3248752T INSERT, WATER PUMPINSERT, WATER PUMP
-
3326-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
3447-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3528-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3610-30720 SCREW, (.250-20 x 2.25), WATER PUMP TO GEAR HOUSINGSCREW, (.250-20 x 2.25), WATER PUMP TO GEAR HOUSING
-
3712-36001 WASHER, WATER PUMP SCREWWASHER, WATER PUMP SCREW
-
3811-8267089 NUT, (.250-28), WATER PUMP STUDSNUT, (.250-28), WATER PUMP STUDS
-
3911-826709111 NUT, (.312-24), WATER PUMP STUDSNUT, (.312-24), WATER PUMP STUDS
-
4012-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDWASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD
-
4125-30271 RING, Rubber, DRIVESHAFTRING, Rubber, DRIVESHAFT
-
4223-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
43774811 SHIFT SHAFT, LOWERSHIFT SHAFT, LOWER
-
4453-29641 E RING, SHIFT SHAFTE RING, SHIFT SHAFT
-
4512-27880 WASHER, LOWER SHIFT SHAFT AND CRANKWASHER, LOWER SHIFT SHAFT AND CRANK
-
4625-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHINGO-RING, (.862 x .103), SHIFT SHAFT BUSHING
-
4723-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4826-892361 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4912-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
5012-8M0042641 WASHER, (.390 x 1.00 x .06), SHIFT SHAFTWASHER, (.390 x 1.00 x .06), SHIFT SHAFT
-
5110-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
5212-191833 WASHER, FILL/DRAIN SCREWWASHER, FILL/DRAIN SCREW
-
-46-96148A8 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
-26-32511A1 SEAL KITSEAL KIT
-
-26-33144A2 SEAL KITSEAL KIT
-
-31-803068T1 BEARING AND SEAL KITBEARING AND SEAL KIT
-
-43-803079T1 REPAIR KIT, Lower GearREPAIR KIT, Lower Gear
-
-47-89984T5 IMPELLER KIT, Water PumpIMPELLER KIT, Water Pump
-
-46-57234T1 PUMP KIT, WaterPUMP KIT, Water
