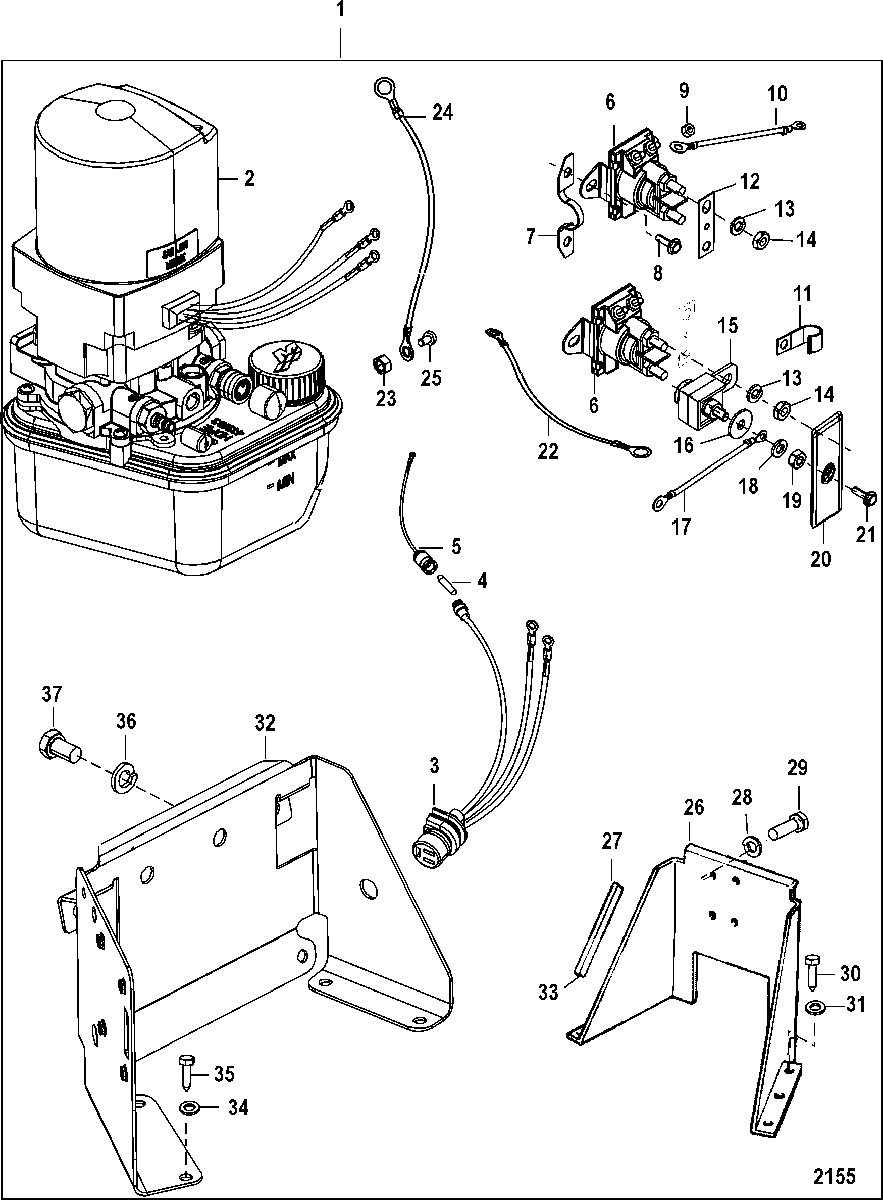

Trim Pump Assembly(Complete) для Mercruiser - BRAVO X TWO 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    865380A25 PUMP ASSEMBLY, Trim, Complete, Bottom Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP ASSEMBLY, Trim, Complete, Bottom Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 1
    865380A25 PUMP ASSEMBLY, Trim, Complete, Bottom Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP ASSEMBLY, Trim, Complete, Bottom Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 1
    865380A25 PUMP ASSEMBLY, Trim, Complete, Top Mounted Reservoir
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP ASSEMBLY, Trim, Complete, Top Mounted Reservoir
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 1
    865380A25 PUMP ASSEMBLY, Trim, Complete, Top Mounted Reservoir
    (Design II, Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line)
    PUMP ASSEMBLY, Trim, Complete, Top Mounted Reservoir
    (Design II, Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line)
  • 2
    865380A13 PUMP/MOTOR ASSEMBLY, Bottom Mount Reservoir
    (See Pump/Motor (Design I) Section For Parts Breakdown)
    PUMP/MOTOR ASSEMBLY, Bottom Mount Reservoir
    (See Pump/Motor (Design I) Section For Parts Breakdown)
  • 2
    865380A13 PUMP/MOTOR ASSEMBLY, Top Mount Reservoir
    (See Pump/Motor (Design I) Section For Parts Breakdown)
    PUMP/MOTOR ASSEMBLY, Top Mount Reservoir
    (See Pump/Motor (Design I) Section For Parts Breakdown)
  • 2
    865380A13 PUMP/MOTOR ASSEMBLY, Top Mount Reservoir
    (See Pump/Motor (Design II) Section For Parts Breakdown)
    PUMP/MOTOR ASSEMBLY, Top Mount Reservoir
    (See Pump/Motor (Design II) Section For Parts Breakdown)
  • 3
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 4
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 5
    84-95084A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 6
    89-96158T SOLENOID
    SOLENOID
  • 7
    88075 RETAINER
    RETAINER
  • 8
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 9
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 10
    84-86322A24 CABLE ASSEMBLY, (4.00 Inches)
    CABLE ASSEMBLY, (4.00 Inches)
  • 11
    54-55098 J CLIP
    J CLIP
  • 12
    94275 LINK, Connector
    LINK, Connector
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 15
    88-79023T10 FUSE ASSEMBLY, 110 Ampere
    FUSE ASSEMBLY, 110 Ampere
  • 16
    12-25908 WASHER, (.265 x .812 x .0625)
    WASHER, (.265 x .812 x .0625)
  • 17
    84-79139A12 CABLE ASSEMBLY, Red-Positive, Battery - Positive
    CABLE ASSEMBLY, Red-Positive, Battery - Positive
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 20
    85-861680 INSULATOR
    INSULATOR
  • 21
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 22
    84-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black
    CABLE ASSEMBLY, (5.50 Inches) Black
  • 23
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 24
    84-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Battery - Negative
    CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Battery - Negative
  • 25
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 26
    862548A1 BRACKET ASSEMBLY
    (14336A9 - Floor Mounted Only)
    BRACKET ASSEMBLY
    (14336A9 - Floor Mounted Only)
  • 27
    58491 CHANNEL, Rubber (4.00 Inches)
    CHANNEL, Rubber (4.00 Inches)
  • 28
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 29
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 30
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 31
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 32
    862548A1 BRACKET KIT, Floor/Transom Mounted
    (14336A15/A17/A22)
    BRACKET KIT, Floor/Transom Mounted
    (14336A15/A17/A22)
  • 33
    58491 CHANNEL, Rubber (4.00 Inches)
    CHANNEL, Rubber (4.00 Inches)
  • 34
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 35
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 36
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 37
    10-98260 SCREW, (.375-16 x .620)
    SCREW, (.375-16 x .620)
