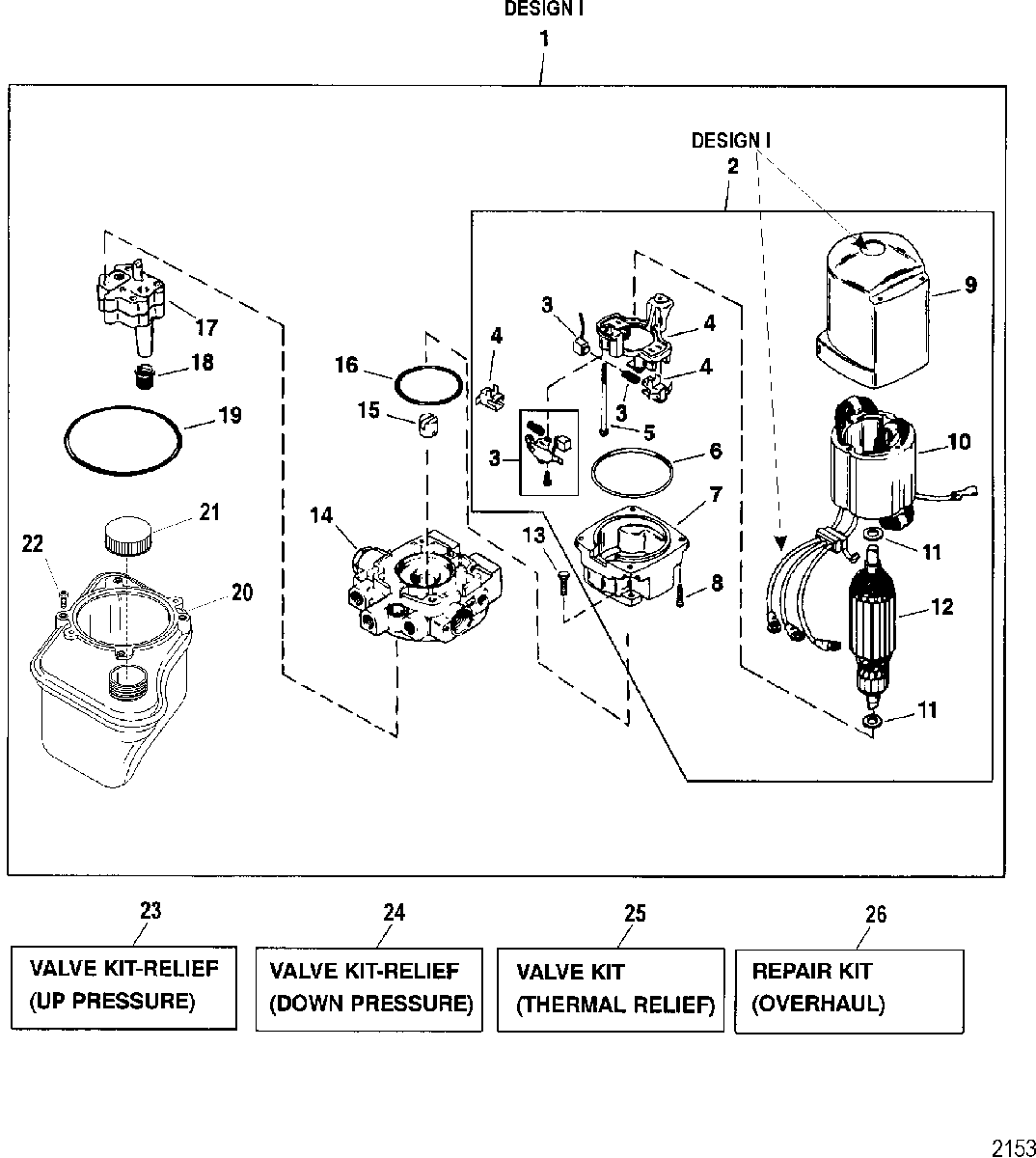

Pump/Motor(Top MT Reservoir) (Design I - 14336A20) для Mercruiser - BRAVO X TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)MOTOR ASSEMBLY, Complete
(Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
3891736T BRUSH KITBRUSH KIT
-
4891736T HOLDER KIT, BrushHOLDER KIT, Brush
-
5891736T SCREWSCREW
-
6891736T O-RINGO-RING
-
7891736T END CAP ASSEMBLYEND CAP ASSEMBLY
-
8891736T SCREWSCREW
-
9891736T COVER ASSEMBLY, With BearingCOVER ASSEMBLY, With Bearing
-
10891736T FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
11891736T WASHER, ThrustWASHER, Thrust
-
12891736T ARMATUREARMATURE
-
1310-823444 SCREWSCREW
-
14808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
15803852 COUPLINGCOUPLING
-
1625-89498 O-RING, Motor EndO-RING, Motor End
-
1718529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
1835-89496 FILTERFILTER
-
1925-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
20883166A2 RESERVOIR KIT, With Filters And O-Ring
(Ref 18 And Ref 19)RESERVOIR KIT, With Filters And O-Ring
(Ref 18 And Ref 19) -
2136-865448A01 CAPCAP
-
2210-883167 SCREW, (#8-32)SCREW, (#8-32)
-
23812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
24812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2595353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
2618545A1 REPAIR KITREPAIR KIT
