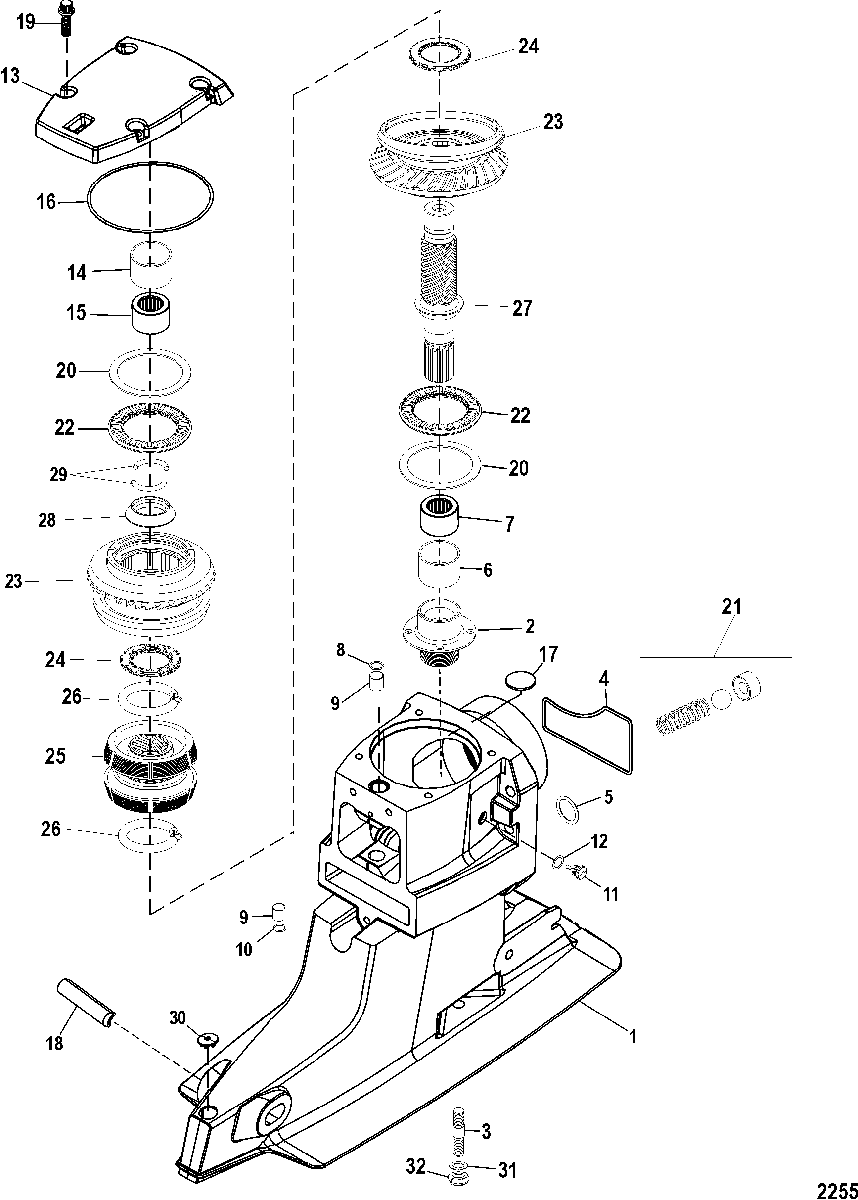

Drive Shaft Housing And Drive Gears(X-Drive) для Mercruiser - BRAVO X TWO 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    1589-864571A70 HOUSING ASSEMBLY, Driveshaft
    (Bravo- X)
    HOUSING ASSEMBLY, Driveshaft
    (Bravo- X)
  • 2
    NSS NOT SOLD SEPARATE, Adaptor, Bearing
    NOT SOLD SEPARATE, Adaptor, Bearing
  • 3
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 4
    16755Q1 SEAL
    SEAL
  • 5
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 6
    31-861791 RACE
    RACE
  • 7
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 8
    25-62705 O-RING
    O-RING
  • 9
    23-861209A1 BUSHING KIT
    BUSHING KIT
  • 10
    26-127091 SEAL
    SEAL
  • 11
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 12
    12-191833 WASHER
    WASHER
  • 13
    92068A12 COVER ASSEMBLY, Top
    COVER ASSEMBLY, Top
  • 14
    31-861791 RACE
    RACE
  • 15
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 16
    25-97387 O-RING
    O-RING
  • 17
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 18
    808006 INSERT, Trim Adjustment
    INSERT, Trim Adjustment
  • 19
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 20
    23-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
    SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
  • 20
    23-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
    SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
  • 20
    23-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
    SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
  • 20
    23-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
    SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
  • 20
    23-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
    SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
  • 20
    23-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
    SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
  • 20
    23-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
    SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
  • 20
    23-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
    SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
  • 20
    23-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
    SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
  • 21
    24-17997A1 SPRING KIT
    SPRING KIT
  • 22
    31-861787 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 23
    43-887906A1 GEAR SET, (29/27)
    (See Stern Drive Unit Chart For Application)
    GEAR SET, (29/27)
    (See Stern Drive Unit Chart For Application)
  • 23
    43-887903A1 GEAR SET, (32/27)
    (See Stern Drive Unit Chart For Application)
    GEAR SET, (32/27)
    (See Stern Drive Unit Chart For Application)
  • 23
    43-887909A1 GEAR SET, (30/23)
    (See Stern Drive Unit Chart For Application)
    GEAR SET, (30/23)
    (See Stern Drive Unit Chart For Application)
  • 24
    31-861792 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 25
    52-865344A01 CLUTCH ASSEMBLY
    CLUTCH ASSEMBLY
  • 26
    24-93505 SPRING
    SPRING
  • 27
    45-812773T DRIVESHAFT
    DRIVESHAFT
  • 28
    23-86770 COLLAR
    COLLAR
  • 29
    97351 KEEPER
    KEEPER
  • 30
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 31
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 32
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
