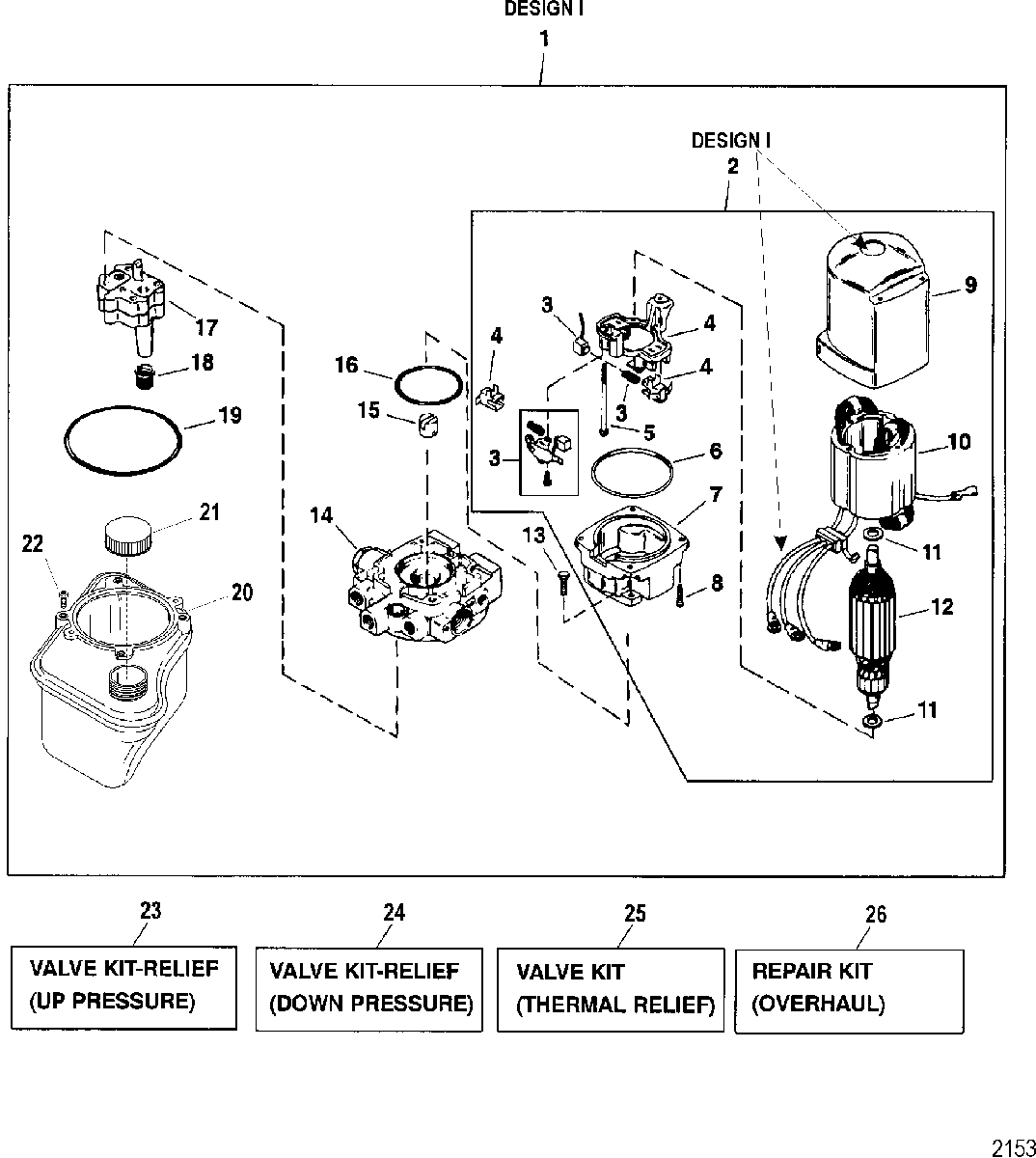

Pump/Motor(Top MT Reservoir) (Design I - 14336A20) для Mercruiser - BRAVO X THREE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 2
    891736T MOTOR ASSEMBLY, Complete
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    MOTOR ASSEMBLY, Complete
    (Design I, Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 3
    891736T BRUSH KIT
    BRUSH KIT
  • 4
    891736T HOLDER KIT, Brush
    HOLDER KIT, Brush
  • 5
    891736T SCREW
    SCREW
  • 6
    891736T O-RING
    O-RING
  • 7
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 8
    891736T SCREW
    SCREW
  • 9
    891736T COVER ASSEMBLY, With Bearing
    COVER ASSEMBLY, With Bearing
  • 10
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 11
    891736T WASHER, Thrust
    WASHER, Thrust
  • 12
    891736T ARMATURE
    ARMATURE
  • 13
    10-823444 SCREW
    SCREW
  • 14
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 15
    803852 COUPLING
    COUPLING
  • 16
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 17
    18529 PUMP ASSEMBLY, Includes Screws
    PUMP ASSEMBLY, Includes Screws
  • 18
    35-89496 FILTER
    FILTER
  • 19
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 20
    883166A2 RESERVOIR KIT, With Filters And O-Ring
    (Ref 18 And Ref 19)
    RESERVOIR KIT, With Filters And O-Ring
    (Ref 18 And Ref 19)
  • 21
    36-865448A01 CAP
    CAP
  • 22
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 23
    812498A1 VALVE KIT, Relief, Up Pressure
    VALVE KIT, Relief, Up Pressure
  • 24
    812499A1 VALVE KIT, Relief, Down Pressure
    VALVE KIT, Relief, Down Pressure
  • 25
    95353A1 VALVE KIT, Relief, Thermal
    VALVE KIT, Relief, Thermal
  • 26
    18545A1 REPAIR KIT
    REPAIR KIT
