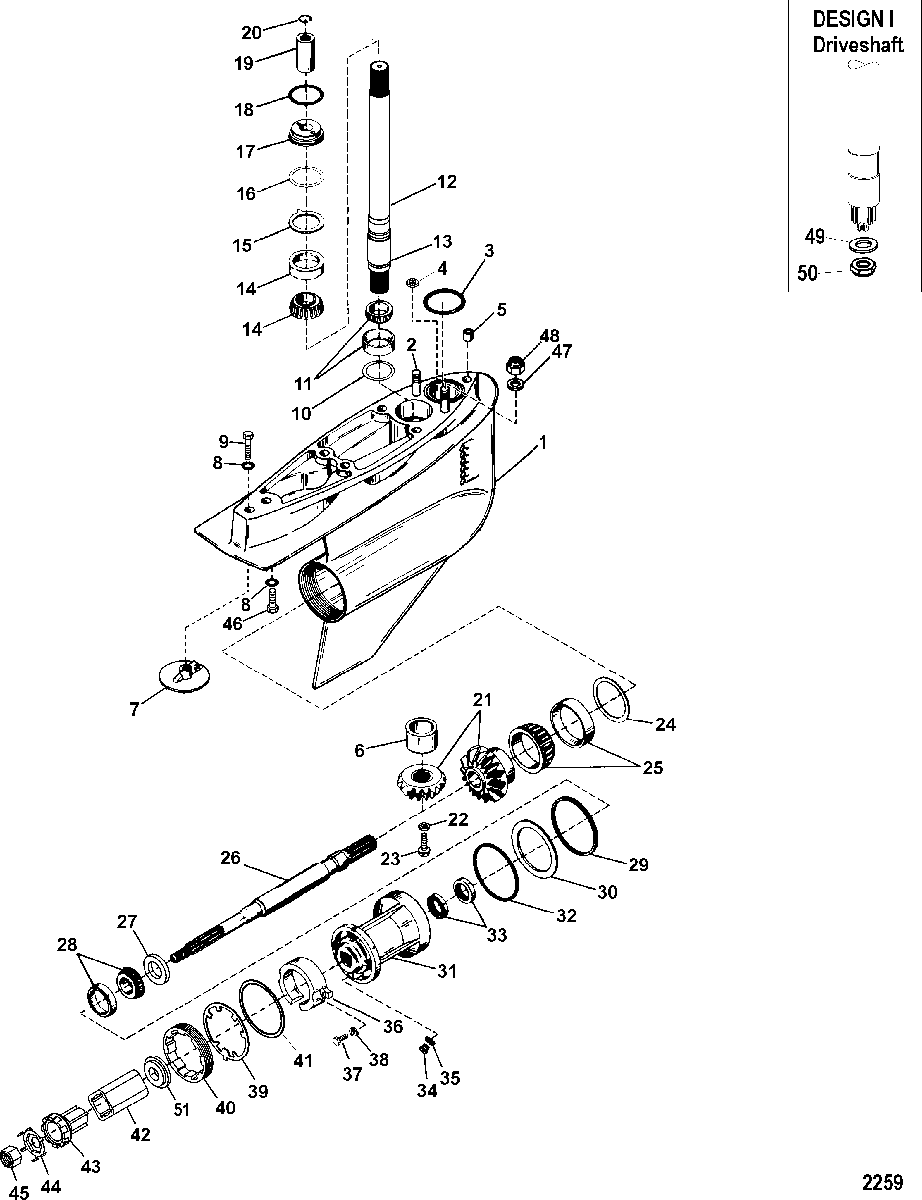

Gear Housing(Bravo One) для Mercruiser - BRAVO X THREE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • _
    1656-8866A63 GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, Standard)
    GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, Standard)
  • _
    1656-8866A55 GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, LWP)
    GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, LWP)
  • _
    1656-8866A63 GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, DWP)
    GEAR HOUSING ASSEMBLY, Complete
    (Bravo One, DWP)
  • 1
    1656-8866A64 GEAR HOUSING ASSEMBLY
    (Bravo One, Standard)
    GEAR HOUSING ASSEMBLY
    (Bravo One, Standard)
  • 1
    1656-8866A54 GEAR HOUSING ASSEMBLY
    (Bravo One, LWP)
    GEAR HOUSING ASSEMBLY
    (Bravo One, LWP)
  • 1
    1656-8866A64 GEAR HOUSING ASSEMBLY
    (Bravo One, DWP)
    GEAR HOUSING ASSEMBLY
    (Bravo One, DWP)
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    25-33465 O-RING
    O-RING
  • 4
    26-455771 SEAL
    SEAL
  • 5
    26-805344 SEAL, (.625 Outside Diameter)
    SEAL, (.625 Outside Diameter)
  • 6
    31-86754T BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 7
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 8
    13-806210 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 9
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 10
    15-92914A1 SHIM KIT
    SHIM KIT
  • 11
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 12
    45-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)
    DRIVESHAFT ASSEMBLY, (16.085 Long)
  • 13
    31-815901 RACE, Bearing
    RACE, Bearing
  • 14
    31-8M0103473 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 15
    14-86739 TAB WASHER
    TAB WASHER
  • 16
    15-86749A1 SHIM KIT
    SHIM KIT
  • 17
    23-8M0046302 SPACER
    SPACER
  • 18
    25-20826 O-RING, (2.230 x .139)
    O-RING, (2.230 x .139)
  • 19
    88243A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 20
    53-88242 RING, Retaining
    RING, Retaining
  • 21
    43-14063A1 GEAR SET, (15/19)
    GEAR SET, (15/19)
  • 22
    12-805068 WASHER
    WASHER
  • 23
    10-808027 SCREW
    SCREW
  • 24
    15-87157A1 SHIM KIT
    SHIM KIT
  • 25
    31-8M0103471 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 26
    44-41630T PROPELLER SHAFT
    PROPELLER SHAFT
  • 27
    12-90886 WASHER
    WASHER
  • 28
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 29
    67440T LOAD RING
    LOAD RING
  • 30
    12-42256 THRUST WASHER, (.105 Inch Thick)
    THRUST WASHER, (.105 Inch Thick)
  • 31
    41641A8 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 32
    25-31534 O-RING
    O-RING
  • 33
    26-76868 SEAL
    SEAL
  • 34
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 35
    12-191833 WASHER
    WASHER
  • 36
    97-806188Q01 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 37
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 38
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 39
    14-18323 TAB WASHER
    TAB WASHER
  • 40
    8M2000347 RETAINER
    RETAINER
  • 41
    12-863195 SPACER
    SPACER
  • 42
    835290Q1 DRIVE SLEEVE, Plastic
    DRIVE SLEEVE, Plastic
  • 43
    826074Q1 ADAPTOR, Brass
    ADAPTOR, Brass
  • 44
    14-816629Q TAB WASHER
    TAB WASHER
  • 45
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 46
    10-90084 SCREW, (.437-14 x 1.500)
    SCREW, (.437-14 x 1.500)
  • 47
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 48
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 49
    12-86746 WASHER
    WASHER
  • 50
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 51
    12-835467Q01 THRUST HUB
    THRUST HUB
  • -
    97-888758Q02 ANODE KIT, Aluminum
    (Bravo I)
    ANODE KIT, Aluminum
    (Bravo I)
  • -
    97-888757Q02 ANODE KIT, Magnesium
    (Bravo I)
    ANODE KIT, Magnesium
    (Bravo I)
